CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

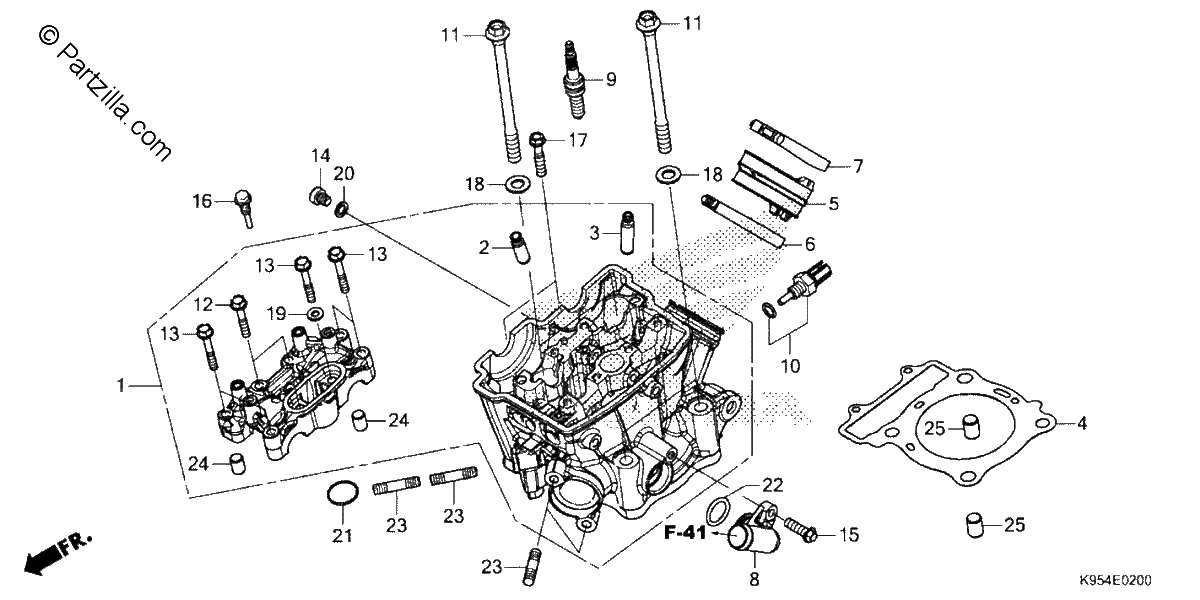

Diagrama de CYLINDER HEAD

Repuestos

#001
12010-K95-A40
CYLINDER HEAD ASSY.
$775.44¢387 722
1
#002
12204-K95-P20
GUIDE, VALVE (OVER SIZE)
$17.95¢8 976
1
#003
12205-K95-P20
GUIDE, VALVE (OVER SIZE)
$19.87¢9 936
1
#004
12251-K95-A21
GASKET, CYLINDER HEAD
$31.50¢15 749
1
#005
16211-K95-A40
INSULATOR, THROTTLE BODY
$18.72¢9 361
1
#006
16217-K95-A20
BAND, INSULATOR
$13.57¢6 785
1
#007
16218-MEN-A50
BAND, INSULATOR
$8.41¢4 203
1
#008
19523-KRN-730
JOINT, WATER
$17.87¢8 936
1
#009
31908-KRN-A41
SPARK PLUG (R0451B-8) (NGK)
$33.14¢16 572
1
#010
37870-MGS-D31
SENSOR ASSY., WATER TEMPERATURE
$53.60¢26 801
1
#011
90001-K95-A20
BOLT, FLANGE (10X135)
$8.72¢4 358
1
#012
90002-K95-A20
BOLT, FLANGE (6X35)
$3.16¢1 581
1
#013
90003-K95-A20
BOLT, FLANGE (6X40)
$3.47¢1 737
1
#014
90019-MGE-000
BOLT, SEALING (8MM)
$2.81¢1 403
1
#015
90020-GHB-660
BOLT, FLANGE (6X20)
$2.75¢1 374
1
#016
90025-K95-A20
BOLT, SPECIAL FLANGE (6X26) (SH)
$3.68¢1 840
1
#017
90020-GHB-690
BOLT, FLANGE (6X28)
$2.75¢1 374
1
#018
90453-MKE-A00
WASHER, PLAIN (10MM)
$3.36¢1 679
1
#019
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.36¢1 679
1
#020
90544-439-930
GASKET (SHOWA)
$2.53¢1 265
1
#021
91301-K95-A21
O-RING, PLUG HOLE
$3.13¢1 564
1
#022
91312-KE7-003
O-RING (19X3) (NOK)
$3.09¢1 547
1
#023
92900-08022-0B
BOLT, STUD (8X22)
$2.53¢1 265
1
#024
94301-08100
PIN, DOWEL (8X10)
$2.66¢1 328
1
#025
94301-12160
PIN A, DOWEL (12X16)
$2.69¢1 346
1
