FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

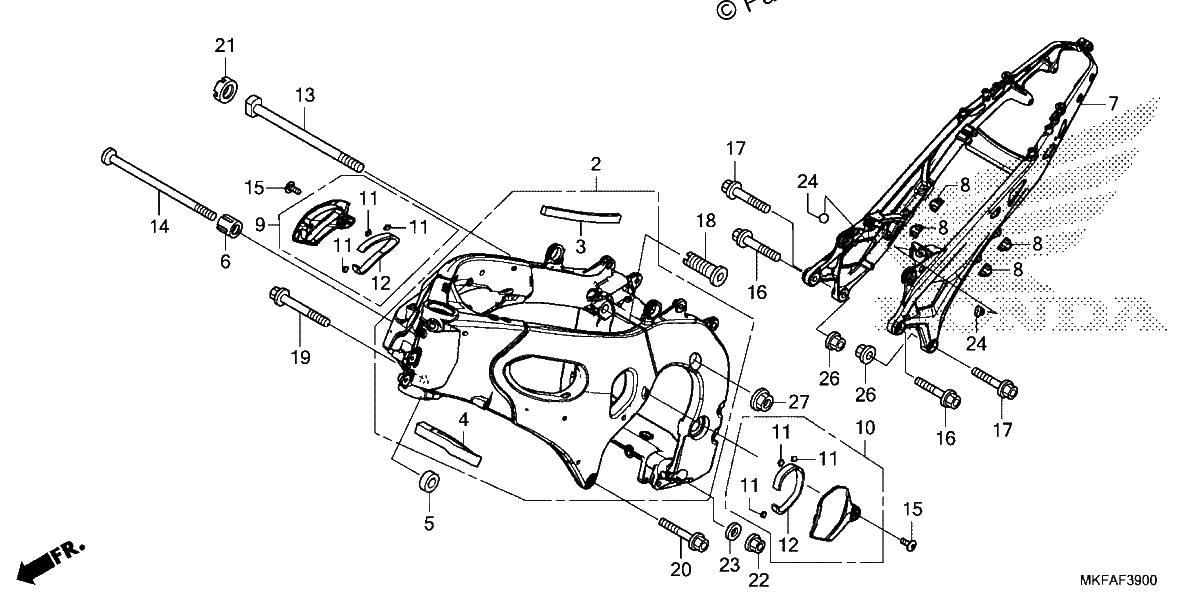

Diagrama de FRAME

Repuestos

#002
50010-MKF-A20ZA
FRAME SET *NH461M*(TEMPLE BLACK METALLIC)
$3402.01¢1 701 006
1
#003
50132-MFJ-J00
MAT A, PIVOT BRACKET
$3.08¢1 538
1
#004
50133-MFJ-J00
MAT B, PIVOT BRACKET
$3.04¢1 519
1
#005
50193-MKF-D40
COLLAR A, ENGINE HANGER
$9.88¢4 938
1
#006
50194-MFL-000
COLLAR C, ENGINE HANGER
$26.66¢13 331
1
#007
50200-MKF-D41ZA
RAIL ASSY., SEAT *NH461M*(TEMPLE BLACK METALLIC)
$1054.53¢527 263
1
#009
83215-MKF-D40
COVER, R. FRAME SIDE
$24.22¢12 112
1
#010
83265-MKF-D40
COVER, L. FRAME SIDE
$24.22¢12 112
1
#011
83266-MKF-D40
RUBBER, PROTECTOR
$2.52¢1 263
1
#012
83640-MGE-700
URETHANE, R. HEAT GUARD
$2.41¢1 206
1
#013
90101-MFL-000
BOLT, SPECIAL (12X261.5)
$17.44¢8 719
1
#014
90102-MFL-000
BOLT, SPECIAL (12X269.5)
$28.20¢14 100
1
#015
90108-MKF-D40
SCREW, SPECIAL (6MM)
$4.14¢2 069
1
#016
90109-MFL-000
BOLT, FLANGE (10X29)
$8.66¢4 331
1
#017
90110-MFL-000
BOLT, FLANGE (10X33.5)
$8.66¢4 331
1
#018
90152-MFL-000
BOLT, ADJUSTING (20X1.0X49.5)
$19.42¢9 712
1
#019
90163-MFL-D20
BOLT, FLANGE (12X50)
$5.39¢2 694
1
#020
90164-MFL-D20
BOLT, FLANGE (12X45)
$5.39¢2 694
1
#021
90303-MFJ-D00
NUT, LOCK (20MM) (P=1.0)
$8.77¢4 387
1
#022
90371-MFL-000
NUT, FLANGE (12MM)
$2.24¢1 119
1
#023
90439-SB2-010
WASHER, SPECIAL (24X12X2.3)
$18.69¢9 344
1
#024
90572-KV3-300
RUBBER, SEPARATOR MOUNTING
$5.20¢2 600
1
#026
94050-10000
NUT, FLANGE (10MM)
$1.90¢950
1
#027
94050-12000
NUT, FLANGE (12MM)
$1.27¢638
1
