HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

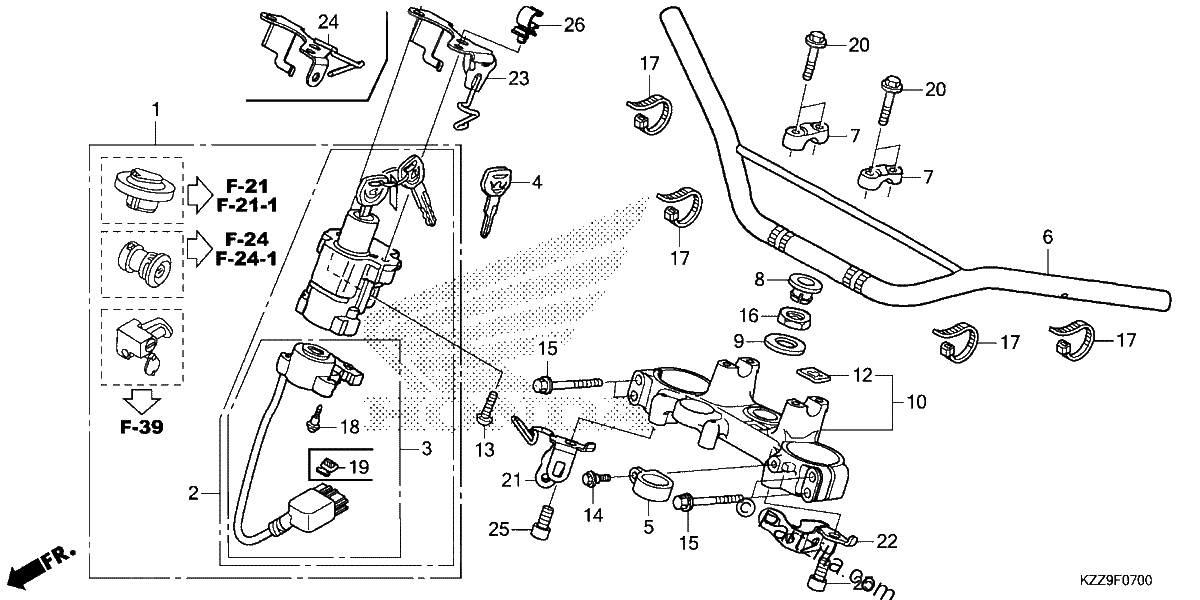

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#001
35010-KZZ-900
LOCK SET
$332.19¢166 094
1
#002
35100-KZZ-901
SWITCH ASSY., COMBINATION LOCK
$201.34¢100 669
1
#003
35101-KZZ-901
BASE, CONTACT
$80.71¢40 356
1
#004
35121-MAS-G01
KEY, BLANK
$14.79¢7 394
1
#005
45468-KZZ-J80
GUIDE, FR. BRAKE HOSE
$4.14¢2 069
1
#006
53100-KZZ-J00
HANDLEBAR
$34.70¢17 350
1
#007
53131-KZZ-A20
HOLDER (UPPER)
$7.72¢3 863
1
#008
53208-KCH-900
CAP, STEERING STEM
$3.65¢1 825
1
#009
53215-GF8-000
WASHER, DUST SEAL
$5.06¢2 531
1
#010
53300-KZZ-J00ZC
BRIDGE, FORK TOP *NH303M*(MAT AXIS GRAY METALLIC)
$105.65¢52 825
1
#012
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.39¢2 194
1
#013
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#014
90113-KZZ-900
BOLT, FLANGE (6MM)
$0.70¢350
1
#015
90155-KZZ-J00
BOLT, FLANGE (8X45)
$0.70¢350
1
#016
90304-425-000
NUT, STEERING STEM
$11.34¢5 669
1
#017
90650-KW3-000
BAND, WIRE
$5.42¢2 713
1
#018
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
#019
91533-S04-003
CLIP, CONNECTOR (NATURAL)
$5.02¢2 512
1
#020
96300-08035-00
BOLT, FLANGE (8X35)
$2.52¢1 263
1
#023
61325-KZZ-G40
GUIDE, CLUTCH CABLE
$17.89¢8 944
1
#026
90652-HL4-A01
CLIP
$0.61¢306
1
