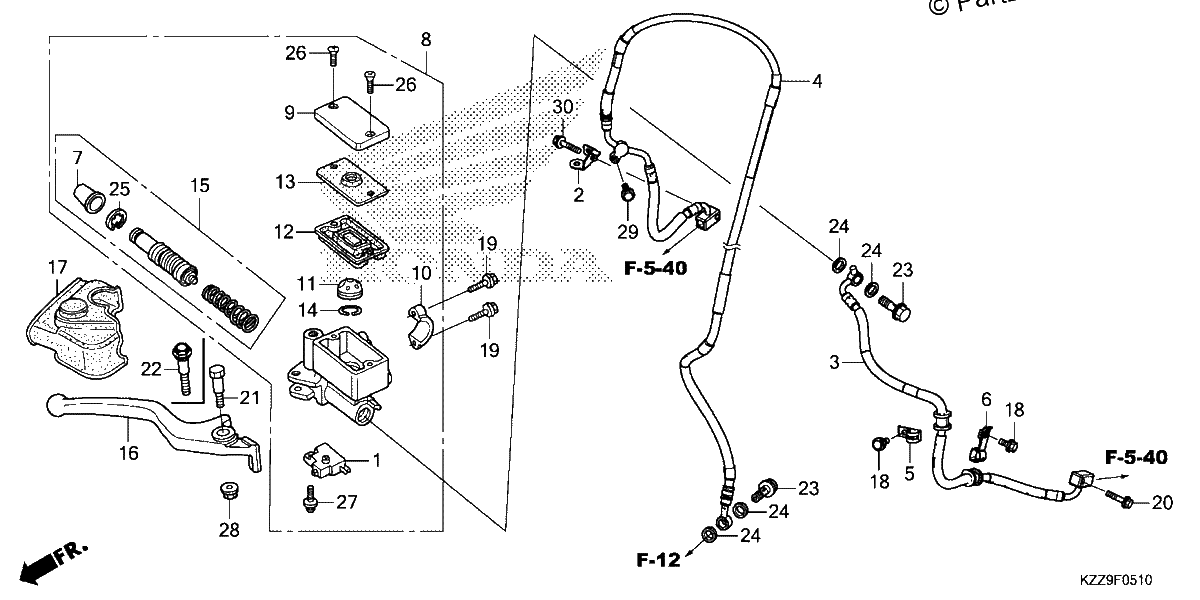

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
#002
STAY, FR. SPEED SENSOR WIRE
$8.23¢4 117
#003
HOSE A, FR. BRAKE
$51.93¢25 967
#004
HOSE D, FR. BRAKE
$120.09¢60 047
#005
CLAMP, FR. BRAKE HOSE
$14.33¢7 165
#006
CLAMP B, FR. BRAKE HOSE
$8.76¢4 382
#007
BOOT
$13.10¢6 549
#008
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$80.11¢40 055
#008
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$80.11¢40 055
#009
CAP, MASTER CYLINDER
$29.42¢14 708
#010
HOLDER, MASTER CYLINDER
$14.48¢7 239
#011
SEPARATOR
$8.50¢4 249
#012
DIAPHRAGM
$11.33¢5 664
#013
PLATE, DIAPHRAGM
$11.59¢5 796
#014
RING
$3.36¢1 679
#015
MASTER CYLINDER SET
$42.69¢21 344
#016
LEVER, R. HANDLEBAR (COO)
$11.58¢5 790
#016
LEVER, R. HANDLEBAR
$11.58¢5 790
#017
COVER, R. HANDLE LEVER
$6.30¢3 151
#018
BOLT, FLANGE (6X12)
$2.13¢1 064
#019
BOLT, FLANGE (6X22)
$2.75¢1 374
#020
BOLT, FLANGE (6X25)
$2.75¢1 374
#021
BOLT, HANDLE LEVER PIVOT
$7.24¢3 622
#023
BOLT, OIL (10X22)
$8.18¢4 088
#024
WASHER, OIL BOLT
$4.46¢2 231
#025
CIRCLIP
$2.85¢1 426
#026
SCREW, FLAT (4X12)
$1.07¢535
#026
SCREW, FLAT (4X12)
$1.07¢535
#027
SCREW-WASHER (4X12)
$1.59¢793
#027
SCREW-WASHER (4X12)
$1.59¢793
#028
NUT, FLANGE (6MM)
$0.74¢368
#029
BOLT, FLANGE (6X18)
$1.49¢747
#030
BOLT, FLANGE (6X28)
$1.79¢897
