TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

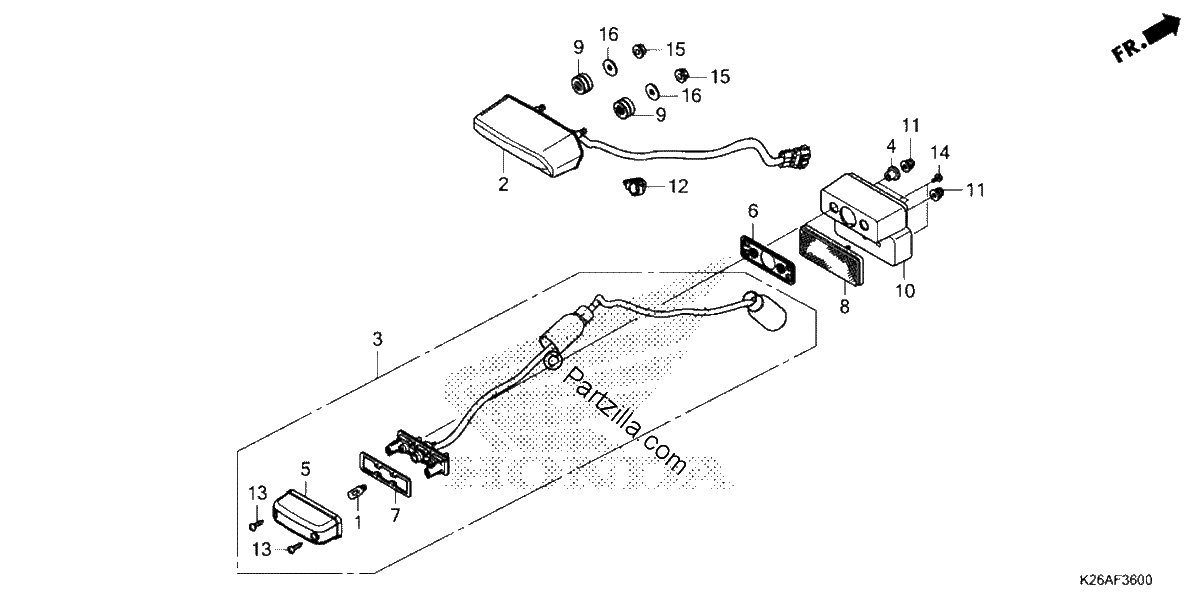

Diagrama de TAILLIGHT

Repuestos

#001
33301-K07-901
BULB, POSITION (12V 5W) (STANLEY)
$4.20¢2 100
1
#002
33701-K26-B11
TAILLIGHT UNIT
$200.74¢100 369
1
#003
33720-K26-305
LIGHT ASSY., LICENSE (12V 5W) (COO)
$94.29¢47 144
1
#003
33720-K26-911
LIGHT Assembly., LICENSE (12V 5W)
$94.29¢47 144
1
#004
33721-K26-B00
COLLAR, LICENSE LIGHT
$1.13¢563
1
#005
33722-K26-305
COVER, LICENSE (COO)
$13.20¢6 600
1
#005
33722-KWN-901
COVER, LICENSE
$13.20¢6 600
1
#006
33728-KPP-T00
RUBBER, LICENSE LIGHT
$5.51¢2 756
1
#007
33729-MCZ-003
GASKET, LENS
$12.19¢6 094
1
#008
33741-KPL-902
REFLECTOR, REFLEX
$8.94¢4 469
1
#009
77209-K26-900
RUBBER, SEAT STAY MOUNTING
$2.09¢1 044
1
#010
80201-KYJ-920
BRACKET, LICENSE LIGHT
$9.95¢4 975
1
#011
90301-KWN-901
NUT, U (5MM)
$0.86¢431
1
#012
90683-SA0-003
CLIP, WIRE HARNESS (25MM)
$12.19¢6 094
1
#013
93901-24480
SCREW, TAPPING (4X16)
$1.06¢531
1
#014
93903-44380
SCREW, TAPPING (4X12)
$1.16¢581
1
#015
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#016
94103-06000
WASHER, PLAIN (6MM)
$1.27¢638
1
