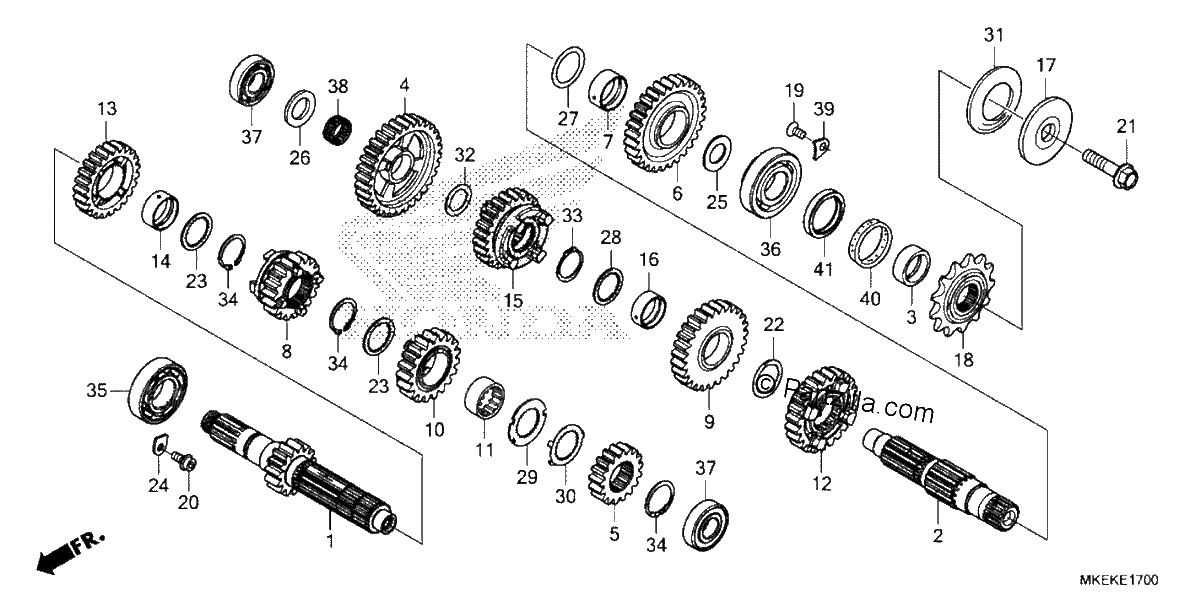

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
MAINSHAFT (15T)
$186.47¢93 236
#002
COUNTERSHAFT
$180.85¢90 425
#003
COLLAR, COUNTERSHAFT
$15.41¢7 705
#004
GEAR, COUNTERSHAFT LOW (32T)
$130.46¢65 228
#005
GEAR, MAINSHAFT SECOND (17T)
$66.52¢33 258
#006
GEAR, COUNTERSHAFT SECOND (29T)
$123.56¢61 778
#007
COLLAR (27X30X13.2)
$19.72¢9 861
#008
GEAR, MAINSHAFT THIRD (19T)
$109.94¢54 970
#009
GEAR, COUNTERSHAFT THIRD (27T)
$123.56¢61 778
#010
GEAR, MAINSHAFT FOURTH (19T)
$98.12¢49 059
#011
COLLAR, SPLINE (26X14.3)
$19.55¢9 775
#012
GEAR, COUNTERSHAFT FOURTH (23T)
$129.29¢64 647
#013
GEAR, MAINSHAFT FIFTH (23T)
$100.12¢50 060
#014
COLLAR (26X29X12.3)
$16.61¢8 303
#015
GEAR, COUNTERSHAFT FIFTH (24T)
$136.26¢68 132
#016
COLLAR (25X28X11)
$26.27¢13 133
#017
COLLAR, DRIVE SPROCKET
$15.69¢7 843
#018
SPROCKET, DRIVE (13T)
$42.52¢21 258
#019
SCREW, SPECIAL FLAT (6X12)
$2.42¢1 208
#020
BOLT, FLANGE SOCKET (6X14)
$3.74¢1 869
#021
BOLT, UBS (8X33)
$4.30¢2 151
#022
WASHER (25X32X1.0)
$3.36¢1 679
#023
WASHER, SPLINE (26MM)
$2.83¢1 414
#024
PLATE, BEARING HOLDER
$0.71¢357
#025
WASHER, THRUST (24.1X37X1.0)
$4.05¢2 024
#026
WASHER, THRUST (17.1X30X1.5)
$4.05¢2 024
#027
WASHER, THRUST (27.2X35)
$5.43¢2 714
#028
WASHER, THRUST INVOLUTE (25X31X1.5)
$2.98¢1 489
#029
WASHER, SPLINE (26MM)
$3.75¢1 874
#030
WASHER, LOCK (26MM)
$3.98¢1 989
#031
WASHER, SPRING (24MM)
$4.75¢2 375
#032
WASHER, THRUST (19MM)
$4.88¢2 438
#033
CIRCLIP, OUTER (25MM)
$6.87¢3 433
#034
CIRCLIP, SPECIAL (OUTER) (26MM)
$3.36¢1 679
#035
BEARING, RADIAL BALL SPECIAL (6205U)
$19.30¢9 649
#036
BEARING, RADIAL BALL (24X56X14)
$34.24¢17 118
#037
BEARING, RADIAL BALL (17X40X11)
$22.85¢11 425
#038
BEARING, NEEDLE (19X22X9.8)
$10.07¢5 037
#039
PLATE, COUNTERSHAFT BEARING
$5.44¢2 720
#040
D-RING (23.75MM)
$3.42¢1 708
#041
OIL SEAL (31X40X7) (ARAI)
$10.98¢5 491
