REAR WHEEL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

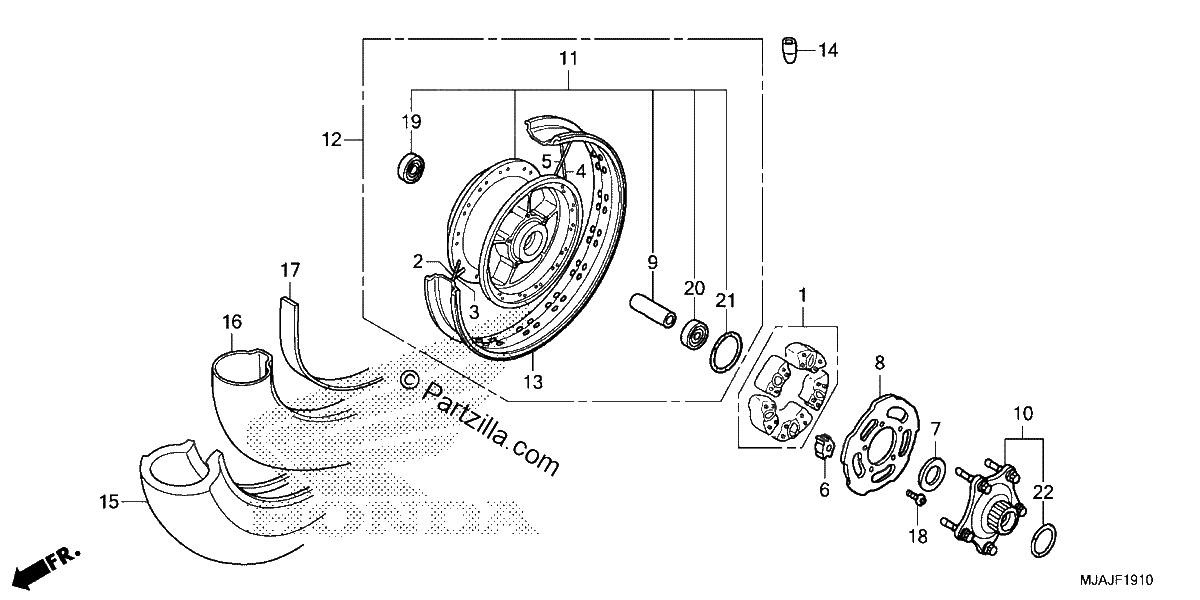

Diagrama de REAR WHEEL 1

Repuestos

#001
06410-MAH-A60
DAMPER SET, WHEEL
$54.10¢27 048
1
#002
06420-MEG-000
SPOKE SET A, RR.
$5.36¢2 680
1
#003
06421-MEG-000
SPOKE SET B, RR.
$5.36¢2 680
1
#004
06422-MEG-000
SPOKE SET C, RR.
$5.36¢2 680
1
#005
06423-MEG-000
SPOKE SET D, RR.
$5.36¢2 680
1
#006
41242-MR5-000
PIECE, DAMPER WHEEL
$18.69¢9 344
1
#007
42616-MT3-000
WASHER, THRUST
$8.90¢4 451
1
#008
42617-MT8-000
HOLDER, DAMPER
$50.90¢25 449
1
#009
42620-MEG-000
COLLAR, RR. AXLE DISTANCE
$18.37¢9 183
1
#010
42630-MAH-305
FLANGE SET, FINAL DRIVEN
$227.57¢113 787
1
#011
42635-MFE-A40
HUB SUB-ASSY., RR. WHEEL
$518.12¢259 061
1
#012
42650-MFE-A40
WHEEL SUB-Assembly., Rear.
$811.13¢405 565
1
#013
42701-MFE-A41
RIM, RR. WHEEL
$227.21¢113 603
1
#014
42705-MEG-003
WEIGHT, BALANCE (20G)
$9.02¢4 508
1
#014
42704-MEG-003
WEIGHT, BALANCE (15G)
$9.02¢4 508
1
#015
42711-MCL-033
TIRE, RR. (160/80-15) (M/C 74S) (BS)
$259.37¢129 685
1
#015
42711-MEG-024
TIRE, Rear. (160/80-15) (M/C 74S) (DUNLOP)
$269.21¢134 608
1
#016
42712-MEG-901
TUBE, TIRE (BS)
$44.60¢22 299
1
#016
42712-MEG-902
TUBE, TIRE (DUNLOP)
$40.40¢20 200
1
#017
42713-MR1-671
FLAP, TIRE (BS)
$8.18¢4 088
1
#017
42713-MR1-672
FLAP, TIRE (45-15) (DUNLOP)
$8.18¢4 088
1
#018
90105-KN5-000
BOLT, DISK (6X17)
$4.34¢2 168
1
#018
90105-KV3-851
BOLT, DISK (6X17) (DAIDO)
$4.24¢2 122
1
#018
90106-MBB-000
BOLT, DISK (6X17)
$4.06¢2 030
1
#018
90106-MT3-003
BOLT, DISK (6X17) (SAGA)
$4.24¢2 122
1
#019
91052-MZ2-A21
BEARING, RADIAL BALL (6204UU) (NSK)
$29.60¢14 800
1
#020
91053-MN5-003
BEARING, RADIAL BALL (20X47X20.6) (NTN)
$80.05¢40 026
1
#021
91302-MA6-003
O-RING (61X2)
$5.76¢2 881
1
#022
91358-MB0-000
O-RING (46.5X3.5)
$4.20¢2 099
1
