OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

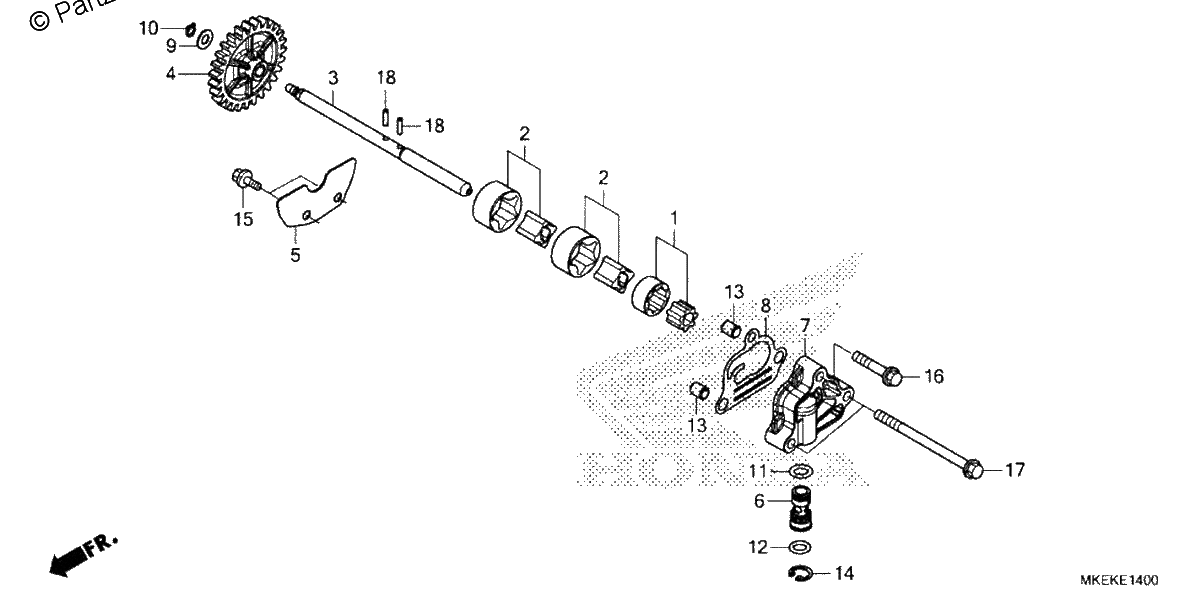

Diagrama de OIL PUMP

Repuestos

#001
15021-958-000
ROTOR SET, OIL PUMP
$40.93¢20 463
1
#002
15021-MKE-A70
ROTOR SET, OIL PUMP
$27.80¢13 900
1
#003
15111-MKE-A70
SHAFT, OIL PUMP
$75.11¢37 556
1
#004
15130-MKE-A00
GEAR, OIL PUMP DRIVEN (27T)
$62.89¢31 444
1
#005
15202-MKE-A00
GUIDE PLATE, OIL PUMP GEAR
$4.51¢2 256
1
#006
15220-MKE-A00
VALVE ASSY., RELIEF
$49.01¢24 506
1
#007
15310-MKE-A00
COVER, OIL PUMP
$75.24¢37 619
1
#008
15351-MKE-A01
GASKET, OIL PUMP COVER
$1.51¢756
1
#009
90443-MEL-000
WASHER (6MM)
$3.08¢1 538
1
#010
90603-MKE-A00
CIRCLIP (6MM)
$2.46¢1 231
1
#011
90751-GK1-003
O-RING (8.5X1.7)
$3.49¢1 744
1
#012
91305-PE2-003
O-RING (9.8X1.9)
$3.14¢1 569
1
#013
94301-08100
PIN, DOWEL (8X10)
$2.89¢1 444
1
#014
94520-14000
CIRCLIP, INNER (14MM)
$1.19¢594
1
#015
95701-06012-00
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#016
95701-06030-00
BOLT, FLANGE (6X30)
$2.41¢1 206
1
#017
95701-06085-00
BOLT, FLANGE (6X85)
$2.21¢1 106
1
#018
96220-30118
ROLLER (3X11.8)
$4.34¢2 169
1
