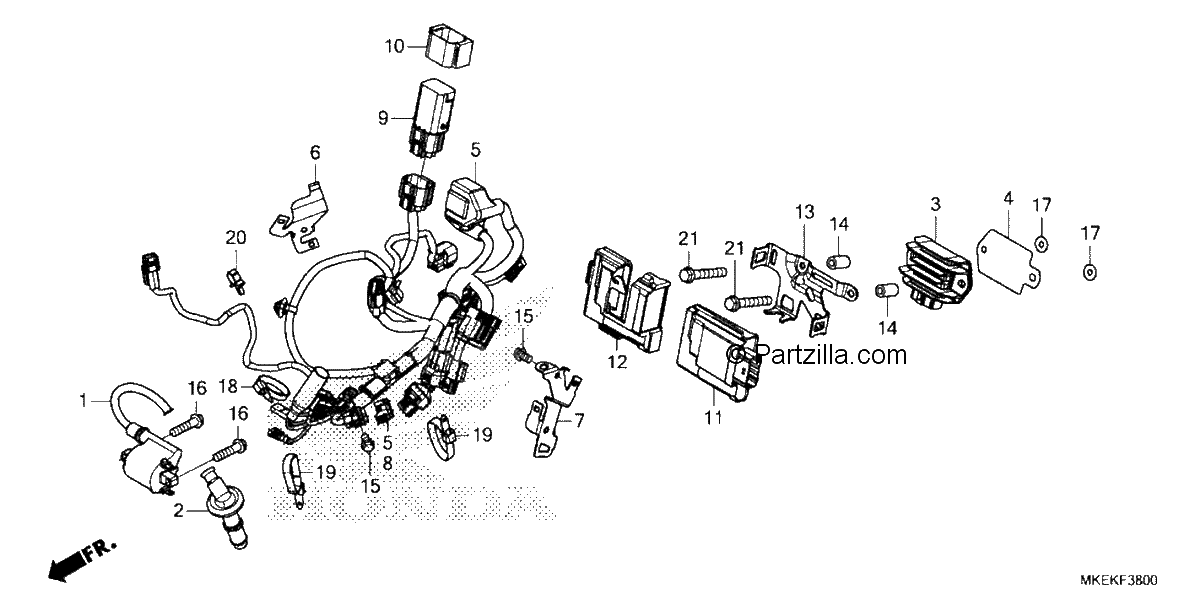

WIRE HARNESS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

Repuestos

#001

30500-MKE-A01

COIL ASSY., IGNITION

$74.22¢37 111

#002

30700-MKE-A01

CAP ASSY., NOISE SUPPRESSOR

$66.64¢33 321

#003

31600-KZL-931

RECTIFIER ASSY., REGULATE

$188.48¢94 242

#004

31610-MKE-A00

BACK PLATE, REGULATOR

$7.19¢3 594

#005

32100-MKE-A70

WIRE HARNESS

$498.84¢249 418

#006

32110-MKE-A70

STAY, L. CONNECTOR

$20.58¢10 292

#007

32125-MKE-A70

STAY, HARNESS (L)

$11.61¢5 807

#008

32606-K44-V01

CAP, DUMMY (WPC 4P 090 M) (RED)

$8.02¢4 008

#009

38580-MKE-A61

RELAY (2P) (WPC)

$54.08¢27 042

#010

38585-MKE-A11

CUSHION, RELAY

$6.45¢3 226

#011

38770-MKE-A71

PGM-FI UNIT

$936.16¢468 079

#012

38771-MKE-A00

SUSPENSION, PGM-FI UNIT

$11.07¢5 537

#013

50124-MKE-A00

BRACKET, ECU

$21.93¢10 965

#014

50125-MKE-A00

COLLAR, ECU BRACKET

$5.28¢2 639

#015

90020-GHB-610

BOLT, FLANGE (6X10)

$2.51¢1 254

#016

90020-GHB-680

BOLT, FLANGE (6X25)

$2.68¢1 340

#017

90535-MKE-A00

WASHER (6.1MM)

$2.94¢1 472

#018

90651-KV6-003

BAND, WIRE (165MM) (BLACK)

$3.36¢1 679

#019

90650-MA6-720

BAND, WIRE HARNESS

$4.62¢2 311

#020

90659-MKE-A11

CLIP, WIRE HARNESS

$3.71¢1 857

#021

96001-06038-00

BOLT, FLANGE (6X38)

$0.64¢322
