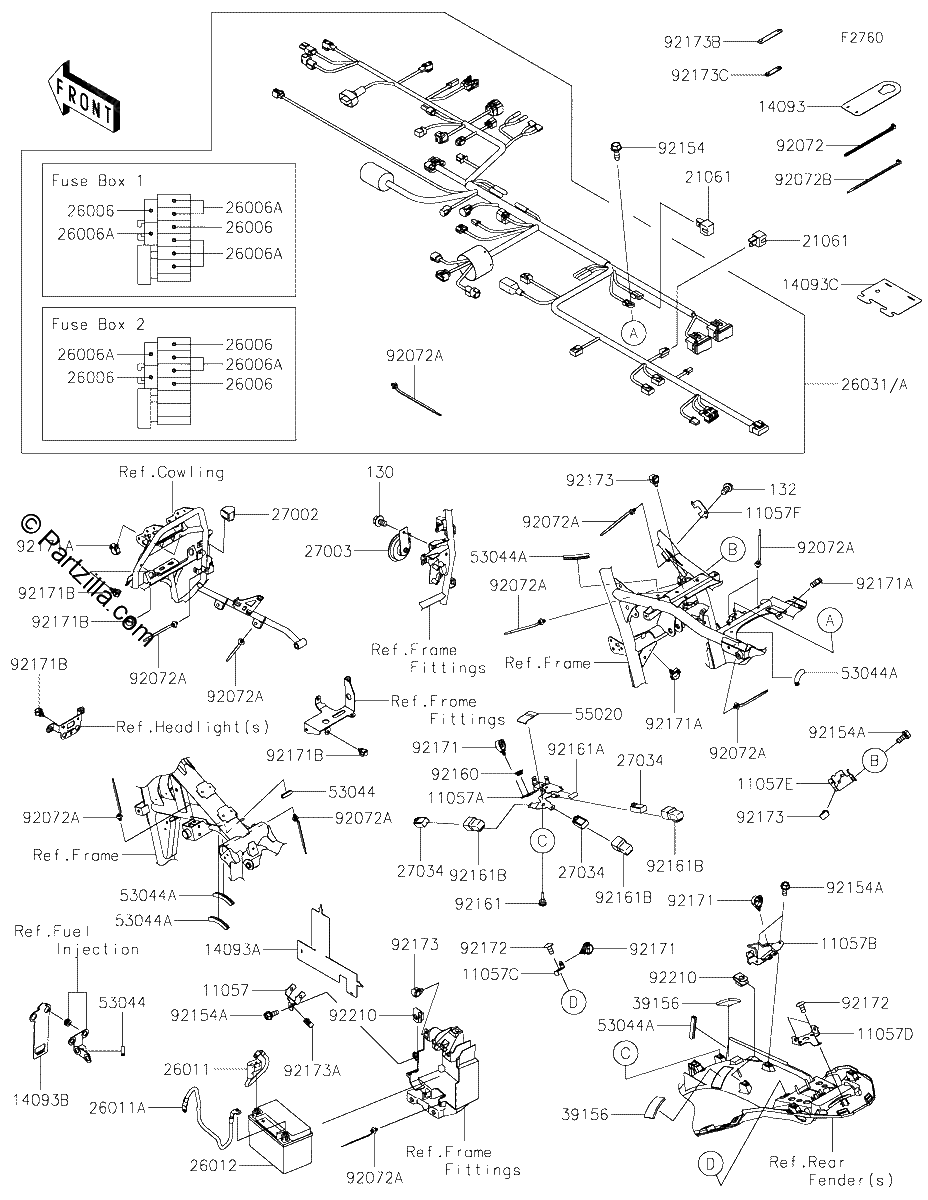

CHASSIS ELECTRICAL EQUIPMENT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT-FLANGED,6X10 | [CA]
$2.12¢1 058
#132
BOLT-FLANGED-SMALL,6X12
$1.78¢891
#11057
BRACKET,MAGNETIC SWITCH
$5.04¢2 519
#11057B
BRACKET,RR HARNESS
$12.74¢6 371
#11057C
BRACKET,HARNESS GUIDE
$1.31¢655
#11057D
BRACKET,ECU
$4.20¢2 099
#11057E
BRACKET,RR SPEED SENSOR
$5.24¢2 622
#11057F
BRACKET,OXYGEN SENSOR
$2.28¢1 138
#11057A
BRACKET,FUSE BOX
$6.34¢3 168
#14093
COVER,IGNITION SWITCH
$10.51¢5 256
#14093A
COVER,MAGNETIC SWITCH
$14.04¢7 021
#14093B
COVER
$10.51¢5 256
#14093C
COVER,HARNESS
$10.81¢5 405
#21061
RECTIFIER
$32.69¢16 347
#26006
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
#26006A
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
#26011
WIRE LEAD,BATTERY(+)
$51.99¢25 996
#26011A
WIRE LEAD,BATTERY( )
$44.92¢22 460
#26012
BATTERY,FTX9-BS,12V 8AH
No Disponible
#26031
HARNESS,MAIN
$1002.40¢501 199
#26031
HARNESS,MAIN
$1002.40¢501 199
#27002
RELAY-ASSY,TURN SIGNAL
$26.10¢13 052
#27003
HORN
$78.18¢39 088
#27034
RELAY
$41.16¢20 579
#39156
PAD,30X55X5
$1.40¢701
#53044A
TRIM,L=60
$7.99¢3 996
#53044
TRIM,L=30
$2.46¢1 231
#55020
GUARD,50X30
$3.01¢1 507
#92072A
BAND
$3.40¢1 702
#92072B
BAND,L=152
$4.04¢2 018
#92072
BAND,L=140
$6.30¢3 151
#92154A
BOLT,FLANGED,5X12
$0.71¢357
#92154
BOLT,FLANGED,6X16
$1.55¢776
#92160
DAMPER
$3.40¢1 702
#92161A
DAMPER,12X23
$1.14¢569
#92161B
DAMPER
$5.68¢2 841
#92161
DAMPER
$3.31¢1 656
#92171A
CLAMP,BRAKE HOSE
$3.51¢1 754
#92171B
CLAMP,13MM DIA.
$1.83¢914
#92171
CLAMP,20MM DIA.
$2.46¢1 231
#92172
SCREW,TAPPING,5X10
$1.24¢621
#92173A
CLAMP,HOLDER CLIP
$2.53¢1 265
#92173B
CLAMP
$1.68¢839
#92173C
CLAMP
$1.43¢713
#92173
CLAMP,12MM DIA.
$4.61¢2 306
#92210
NUT,PLATE,5MM
$1.72¢862
