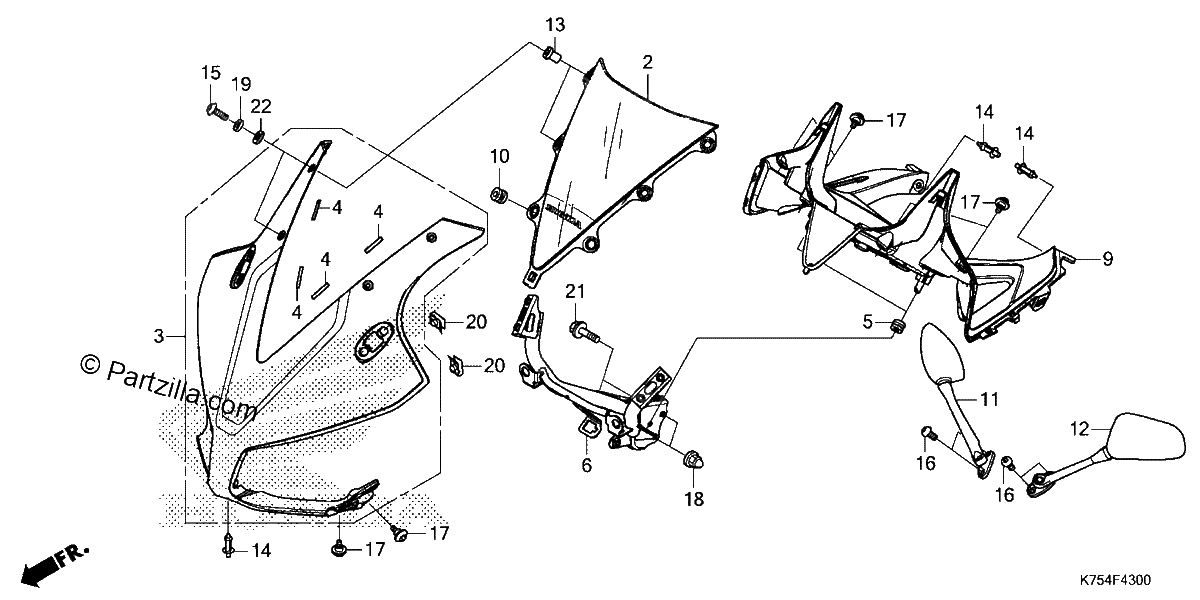

UPPER COWL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#002
WINDSCREEN SET (TYPE1) (WL)
$75.31¢37 657
#003
COWL SET (UPPER) (TYPE3) (WL)
$66.64¢33 321
#003
COWL SET (UPPER) (TYPE1) (WL)
$66.73¢33 367
#004
FILM, PROTECTOR
$4.24¢2 122
#005
RUBBER, SCREEN SETTING
$4.99¢2 496
#006
STAY, FR. COWL (UPPER)
$69.91¢34 954
#009
COWL, Front. (INNER)
$18.30¢9 148
#010
RUBBER, COWL (LOWER)
$3.09¢1 547
#011
MIRROR Assembly., Right BACK (COO)
$76.21¢38 105
#011
MIRROR ASSY., R. BACK
$76.21¢38 105
#012
MIRROR ASSY., L. BACK
$88.99¢44 494
#012
MIRROR Assembly., L BACK (COO)
$88.99¢44 494
#013
NUT, COWL SETTING (5MM)
$5.04¢2 519
#014
RIVET, PUSH (7MM)
$3.21¢1 604
#015
BOLT, SPECIAL (5X16)
$0.83¢414
#016
BOLT, SOCKET (6X13)
$0.74¢368
#017
SCREW, PAN (5X14)
$1.13¢564
#018
NUT, CAP (8MM)
$0.91¢454
#019
WASHER, THRUST (5MM)
$2.24¢1 121
#020
NUT, CLIP (5MM)
$0.76¢380
#021
BOLT, FLANGE (8X32)
$2.45¢1 225
#022
WASHER, SCREEN SETTING
$2.62¢1 311
