HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

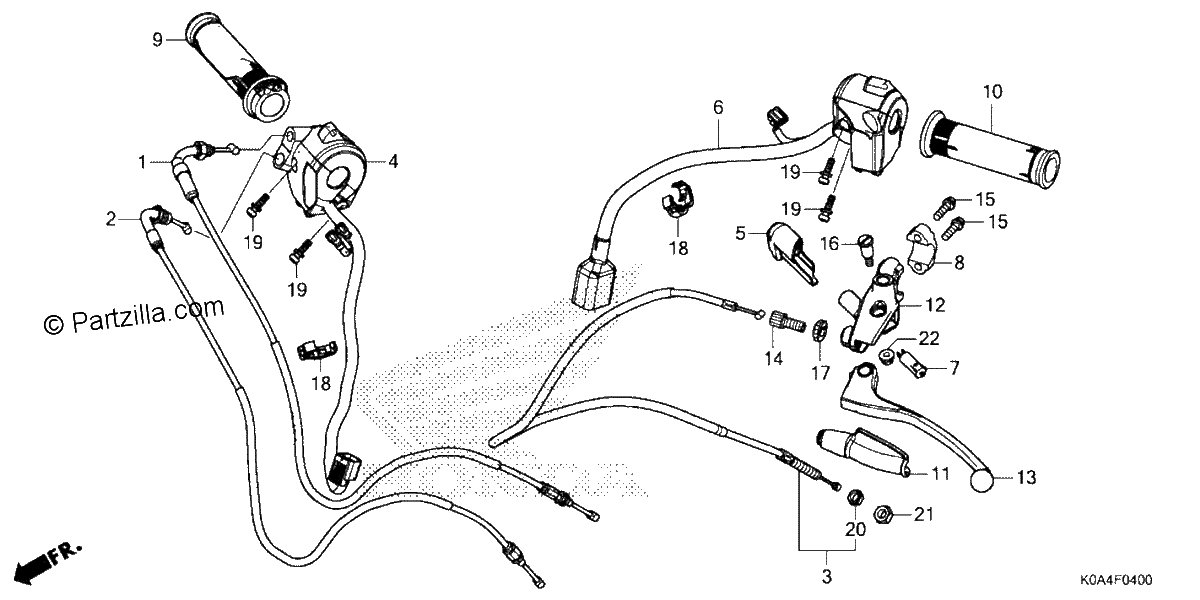

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#001
17910-K0A-E11
CABLE A, THROTTLE
$16.66¢8 332
1
#002
17920-K0A-E11
CABLE B, THROTTLE
$13.25¢6 624
1
#003
22870-K0A-E10
CABLE, CLUTCH
$11.19¢5 595
1
#004
35130-K94-T01
SWITCH ASSY., ENGINE STOP
No Disponible
1
#005
35152-KRY-970
COVER, CLUTCH SWITCH
$10.80¢5 399
1
#006
35200-K98-E01
SWITCH ASSY., TURN SIGNAL
No Disponible
1
#007
35330-KYJ-901
SWITCH, Front LEVER
$7.37¢3 686
1
#008
45517-KCW-870
HOLDER, MASTER CYLINDER
$11.65¢5 825
1
#009
53140-KYJ-305
GRIP, THROTTLE (COO)
$10.88¢5 440
1
#009
53140-KYJ-900
GRIP, THROTTLE
$10.88¢5 440
1
#010
53166-KYJ-305
GRIP, L. HANDLE (COO)
$6.32¢3 162
1
#010
53166-KYJ-900
GRIP, L. HANDLE
$6.32¢3 162
1
#011
53172-402-700
COVER, L HANDLE LEVER
$8.03¢4 013
1
#012
53172-KYJ-900
BRACKET, HANDLE LEVER
$14.96¢7 481
1
#013
53178-MAH-000
LEVER, L HANDLE
$20.84¢10 419
1
#013
53178-MFR-305
LEVER, L. HANDLEBAR (COO)
$20.84¢10 419
1
#014
53192-203-000
BOLT, CLUTCH WIRE ADJUSTING
$9.80¢4 899
1
#015
90013-GHB-660
BOLT, FLANGE (6X22)
$2.75¢1 374
1
#016
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$8.46¢4 232
1
#017
90321-315-670
NUT, FIXING
$8.15¢4 077
1
#018
90690-MEF-800
CLAMP, HARNESS
$1.54¢771
1
#019
93892-05020-07
SCREW-WASHER (5X20)
$1.02¢512
1
#020
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#021
94031-08000
NUT, HEX. (8MM)
$1.26¢633
1
#022
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
