SWINGARM

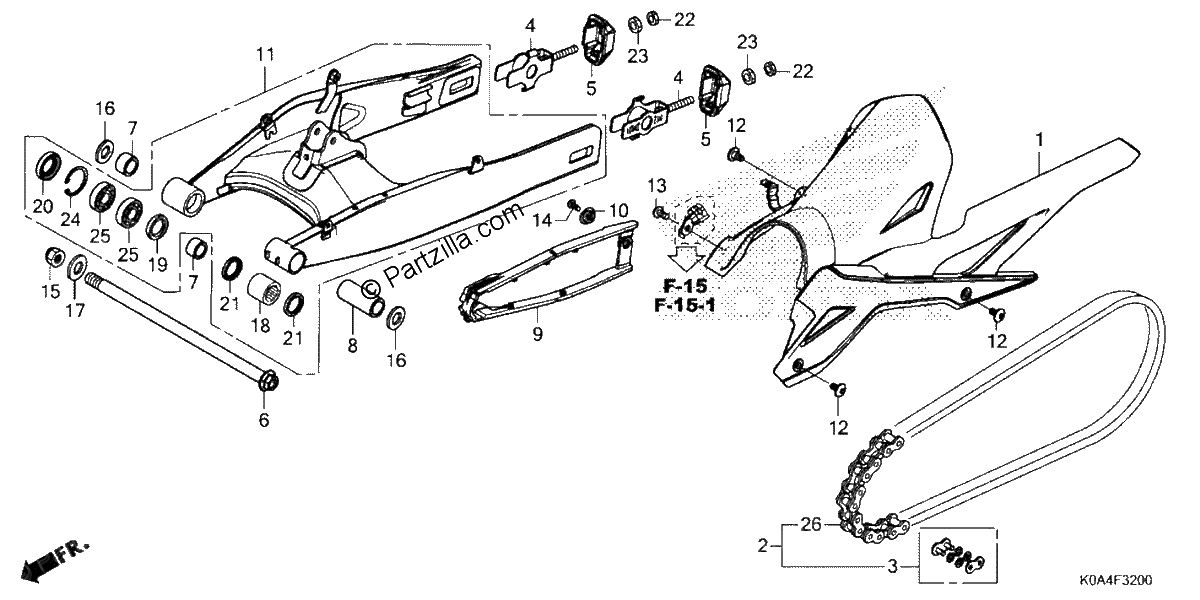

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CASE, DRIVE CHAIN
$46.76¢23 379
#002
CHAIN, DRIVE (DID520VF-120ZB) (DAIDO)
$148.00¢74 002
#003
MASTER LINK (DAIDO)
$15.55¢7 774
#004
ADJUSTER, CHAIN
$12.42¢6 210
#005
CAP, SWINGARM END
$9.27¢4 635
#006
BOLT, SWINGARM PIVOT
$20.38¢10 189
#007
COLLAR, R. SWINGARM PIVOT
$7.70¢3 852
#008
COLLAR, L. SWINGARM PIVOT
$16.04¢8 021
#009
SLIDER, CHAIN
$27.11¢13 553
#010
WASHER, CHAIN SLIDER
$3.81¢1 903
#011
SWINGARM SUB-ASSY., RR.
$588.41¢294 205
#012
SCREW, PAN (6X12)
$0.62¢311
#013
SCREW, PAN
$2.59¢1 294
#014
SCREW, PAN (5X12)
$2.22¢1 110
#015
NUT, U (14MM)
$3.33¢1 667
#016
WASHER (15X25X2.3)
$1.54¢771
#017
WASHER (14X28X2.6)
$1.36¢678
#018
BEARING, NEEDLE (22X29X30) (NTN)
$46.30¢23 149
#018
BEARING, NEEDLE (THOMPSON)
$39.35¢19 676
#019
OIL SEAL (22X31X5) (ARAI)
$6.47¢3 237
#020
DUST SEAL (22X35X7) (ARAI)
$8.31¢4 157
#020
DUST SEAL (22X35X7) (NOK)
$8.31¢4 157
#021
DUST SEAL (22X29X4) (ARAI)
$6.60¢3 301
#022
NUT, HEX. (8MM)
$1.47¢736
#023
NUT, HEX. (8MM)
$1.26¢633
#024
CIRCLIP, INNER (35MM)
$2.30¢1 150
#025
BEARING, RADIAL BALL (6202)
$15.59¢7 797
#026
CHAIN, DRIVE (DID520VF-108LE)
$155.49¢77 746
