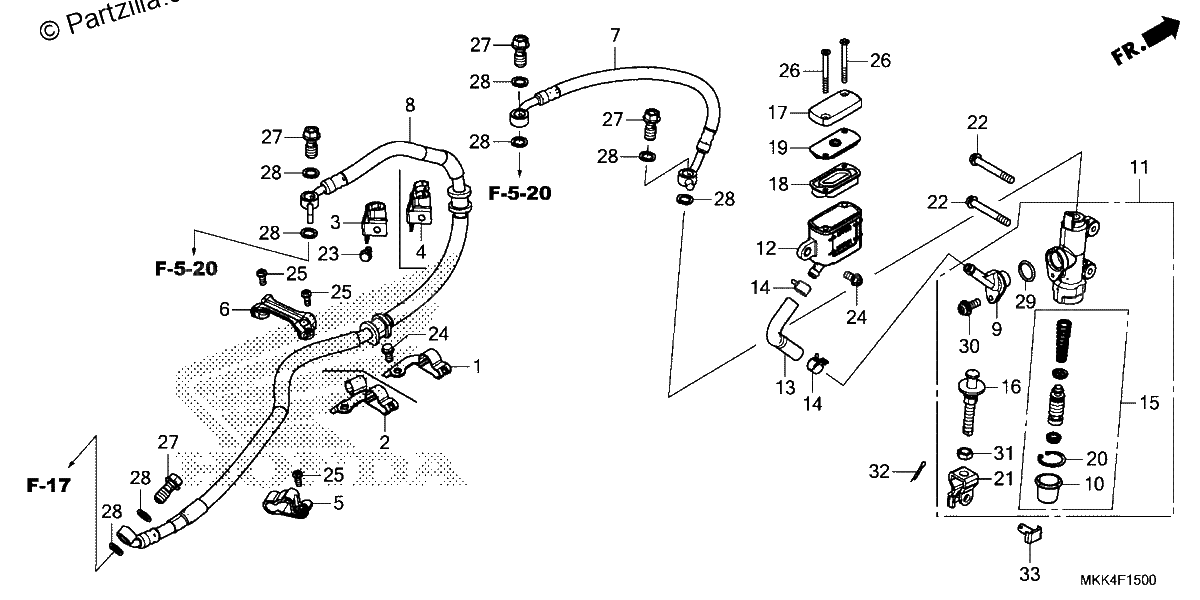

REAR BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#002
CLAMP, Rear BRAKE HOSE
$12.54¢6 269
#004
CLAMP A, Rear BRAKE HOSE
$12.89¢6 444
#005
GUIDE, Rear BRAKE HOSE
$9.55¢4 775
#006
GUIDE B, BRAKE HOSE
$6.31¢3 156
#007
HOSE A, RR. BRAKE
$52.59¢26 294
#008
HOSE B, RR. BRAKE
$83.63¢41 813
#009
CONNECTOR, MASTER CYLINDER
$9.32¢4 663
#010
BOOT
$11.74¢5 869
#011
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$205.31¢102 656
#012
CUP, OIL (NISSIN)
$23.34¢11 669
#013
HOSE, RR. MASTER CYLINDER
$11.11¢5 556
#014
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#015
PISTON SET, MASTER CYLINDER (NISSIN)
$53.06¢26 531
#016
ROD, PUSH
$26.79¢13 394
#017
CAP, MASTER CYLINDER
$21.21¢10 606
#018
DIAPHRAGM
$8.84¢4 419
#019
PLATE, DIAPHRAGM
$6.95¢3 475
#020
CIRCLIP
$2.50¢1 250
#021
JOINT, BRAKE ROD
$17.25¢8 625
#022
BOLT, FLANGE (6X45)
$3.49¢1 744
#023
BOLT, FLANGE (6X10)
$2.73¢1 363
#024
BOLT, FLANGE (6X12)
$2.88¢1 438
#025
SCREW, PAN (5X12)
$2.41¢1 206
#026
SCREW, FLAT (4X45)
$7.39¢3 694
#027
BOLT, OIL (10X22)
$8.89¢4 444
#028
WASHER, OIL BOLT
$4.85¢2 425
#029
O-RING (14.8X2.4)
$3.30¢1 650
#030
SCREW-WASHER (4X12)
$1.72¢862
#030
SCREW-WASHER (4X12)
$1.72¢862
#031
NUT, HEX. (8MM)
$1.60¢800
#032
PIN, SPLIT (2.0X15)
$1.34¢669
#033
PIN D, JOINT
$5.15¢2 575
