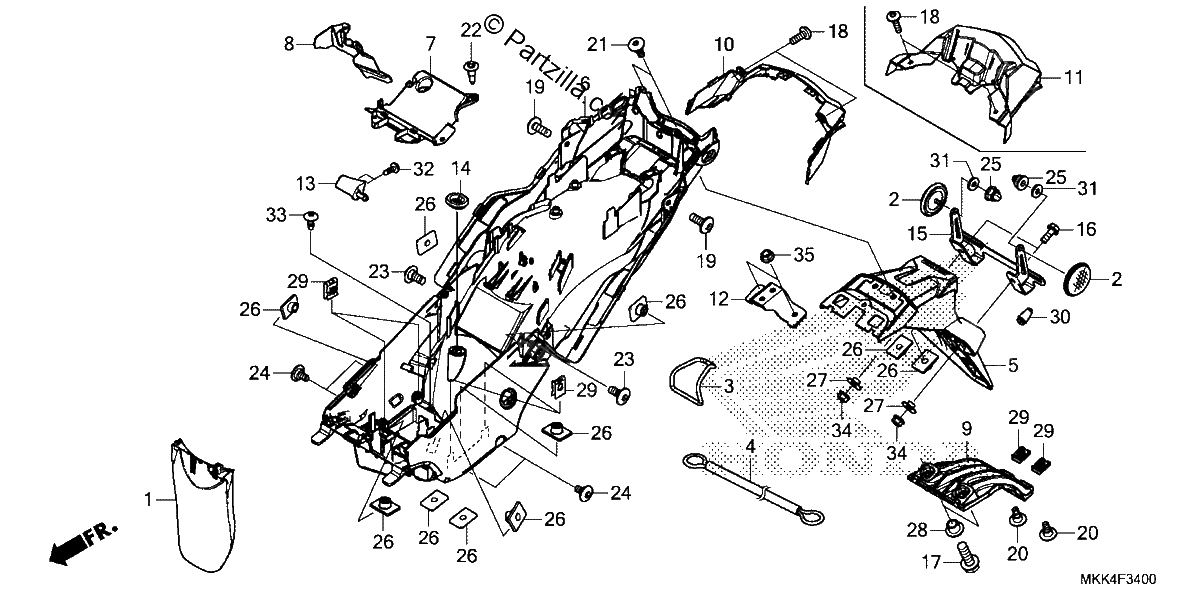

REAR FENDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SPLASH GUARD
$41.25¢20 625
#002
REFLECTOR, Rear REFLEX (RED)
$14.26¢7 130
#003
BAND B, TOOL
$10.80¢5 399
#004
WIRE, HELMET SET
$9.45¢4 727
#005
FENDER A SET, RR. (TYPE1) (WL)
$109.51¢54 757
#006
FENDER B, RR.
$193.29¢96 646
#007
TRAY, ETC
$8.16¢4 082
#008
COVER, SEAT LOCK
$4.86¢2 432
#009
COVER, RR. FENDER
$39.59¢19 797
#011
COWL, RR. CENTER
$19.66¢9 833
#012
BRACKET, FENDER COVER
$33.90¢16 951
#013
BOSS, GROMMET
$5.31¢2 657
#014
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
#015
BRACKET, NUMBER PLATE
$17.95¢8 976
#016
BOLT, FLANGE (6X16)
$3.92¢1 961
#017
BOLT, FLANGE (8X25)
$2.75¢1 374
#018
SCREW, PAN (5X20)
$2.75¢1 374
#019
SCREW, SPECIAL (6MM)
$2.64¢1 322
#020
SCREW, SPECIAL (5X14)
$2.42¢1 208
#021
BOLT, SPECIAL (6X8)
$1.38¢690
#022
CLIP, BUMPER SEAL
$5.27¢2 633
#023
SCREW, PAN (6X14)
$2.43¢1 213
#024
SCREW, SPECIAL (5X11)
$2.94¢1 472
#025
NUT, FLANGE CAP (6MM)
$2.75¢1 374
#026
NUT, SPECIAL (6X7)
$4.28¢2 139
#027
COLLAR, MUFFLER COVER
$2.43¢1 213
#028
COLLAR (8MM)
$5.32¢2 662
#029
NUT, CLIP (5MM)
$4.54¢2 271
#030
PLUG, CONE
$3.86¢1 932
#031
WASHER, BLACK (20MM)
$6.43¢3 214
#032
SCREW, TAPPING (4X12)
$1.07¢535
#033
SCREW, TAPPING (5X12)
$1.53¢765
#034
NUT, FLANGE (6MM)
$1.71¢857
#035
NUT, FLANGE (8MM)
$1.06¢529
