FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

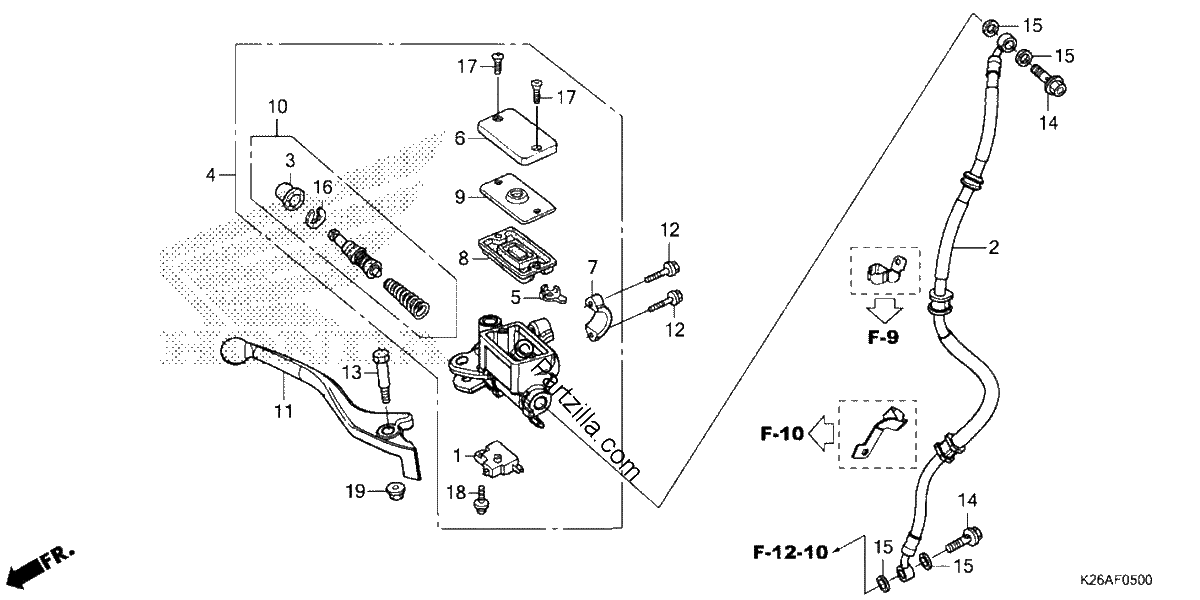

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#001
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#002
45125-K26-B11
HOSE, FR. BRAKE
$27.07¢13 538
1
#003
45504-410-003
BOOT
$14.24¢7 119
1
#004
45510-K26-305
MASTER CYLINDER SUB-ASSY., FR.BRAKE (COO) (NISSIN)
$127.96¢63 981
1
#004
45510-K26-901
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$127.96¢63 981
1
#005
45512-MA6-006
PROTECTOR
$5.20¢2 600
1
#006
45513-HA2-006
CAP, MASTER CYLINDER
$31.97¢15 987
1
#007
45517-166-006
HOLDER, MASTER CYLINDER
$15.74¢7 869
1
#008
45520-GE2-006
DIAPHRAGM
$10.88¢5 438
1
#009
45521-K21-901
PLATE, DIAPHRAGM
$2.92¢1 463
1
#010
45530-471-831
MASTER CYLINDER SET
$46.40¢23 200
1
#011
53175-K26-305
LEVER, Right HANDLEBAR (COO)
$19.27¢9 638
1
#011
53175-K26-901
LEVER, R. HANDLEBAR
$19.27¢9 638
1
#012
90013-GHB-660
BOLT, FLANGE (6X22)
$2.99¢1 494
1
#013
90114-KGH-900
BOLT, HANDLE LEVER PIVOT
$1.25¢625
1
#014
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#015
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#016
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#017
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#017
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#018
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#018
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#019
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
