WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

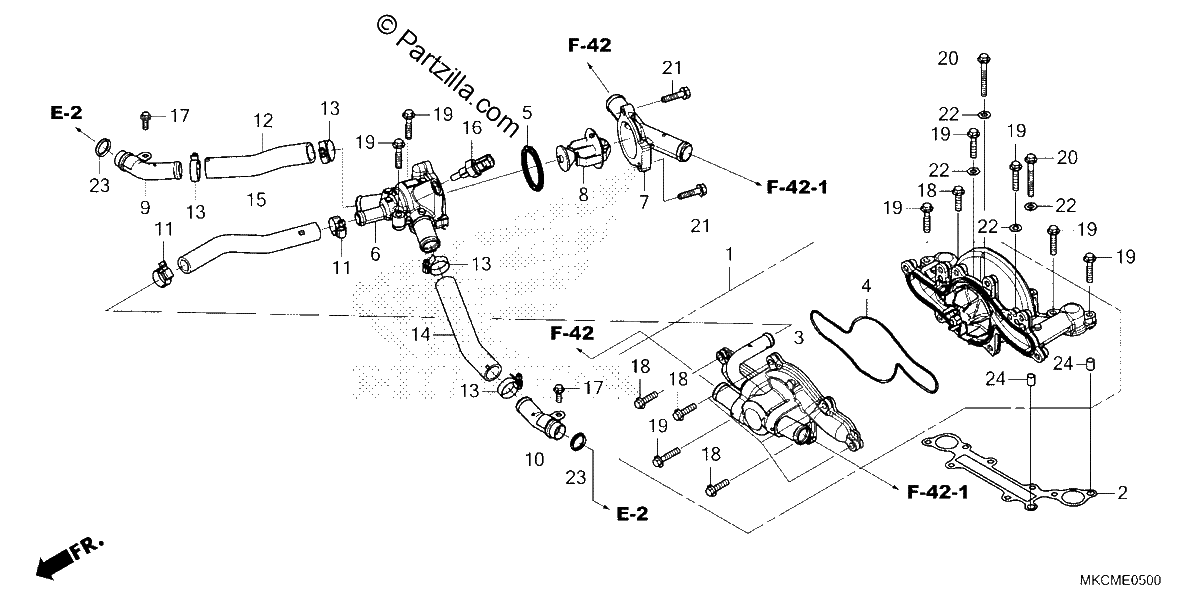

Diagrama de WATER PUMP

Repuestos

#001
19200-MKC-305
WATER PUMP ASSY.
$583.60¢291 801
1
#002
19216-MKC-A01
GASKET, WATER PUMP BODY
$10.14¢5 071
1
#003
19220-MKC-A00
COVER, WATER PUMP
$180.11¢90 057
1
#004
19226-MKC-A00
GASKET, WATER PUMP COVER
$12.35¢6 176
1
#005
19305-KV3-010
RUBBER, THERMOSTAT
$6.76¢3 381
1
#006
19310-MKC-305
CASE, THERMOSTAT
$154.63¢77 315
1
#007
19315-MKC-A00
COVER, THERMOSTAT
$77.75¢38 876
1
#008
19320-MKF-D41
THERMOSTAT (NIPPON THERMOSTAT)
$83.04¢41 521
1
#009
19411-MKC-A00
PIPE, R. WATER
$40.23¢20 114
1
#010
19421-MKC-A00
PIPE, L. WATER
$40.23¢20 114
1
#011
19505-KS6-700
CLAMP A, WATER HOSE
$13.74¢6 871
1
#012
19505-MKC-A00
HOSE, R. HEAD
$9.44¢4 721
1
#013
19506-KS6-700
CLAMP B, WATER HOSE
$8.37¢4 186
1
#014
19506-MKC-A00
HOSE, L. HEAD
$10.70¢5 348
1
#015
19507-MKC-A00
HOSE, BYPASS (BOTTOM)
$9.44¢4 721
1
#016
37870-MGS-D31
SENSOR ASSY., WATER TEMPERATURE
$53.60¢26 801
1
#017
90017-GHB-630
BOLT, FLANGE (6X16) (NSHF)
$2.51¢1 254
1
#018
90017-GHB-660
BOLT, FLANGE (6X22) (NSHF)
$2.66¢1 328
1
#019
90017-GHB-680
BOLT, FLANGE (6X28) (NSHF)
$2.81¢1 403
1
#020
90017-GHB-720
BOLT, FLANGE (6X45) (NSHF)
$3.07¢1 535
1
#021
90018-MKC-A00
BOLT, FLANGE (6X23) (CT200)
$2.39¢1 196
1
#022
90488-425-000
WASHER, SEALING (6MM)
$2.69¢1 346
1
#023
91316-MKC-A01
SEAL, WATER PIPE (22.5MM)
$6.84¢3 421
1
#024
94301-08100
PIN, DOWEL (8X10)
$2.66¢1 328
1
