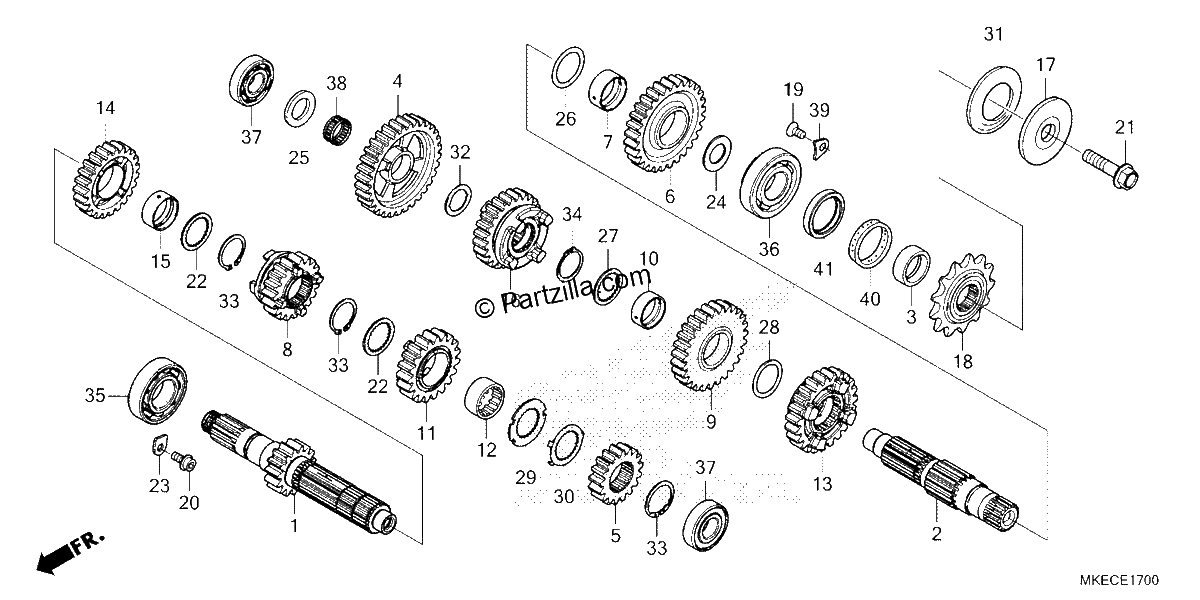

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
MAINSHAFT (15T)
$202.69¢101 344
#002
COUNTERSHAFT
$198.89¢99 444
#003
COLLAR, COUNTERSHAFT
$16.75¢8 375
#004
GEAR, COUNTERSHAFT LOW (32T)
$141.80¢70 900
#005
GEAR, MAINSHAFT SECOND (17T)
$72.30¢36 150
#006
GEAR, COUNTERSHAFT SECOND (29T)
$134.30¢67 150
#007
COLLAR (27X30X13.2)
$21.44¢10 719
#008
GEAR, MAINSHAFT THIRD (19T)
$119.50¢59 750
#009
GEAR, COUNTERSHAFT THIRD (27T)
$129.01¢64 506
#010
COLLAR (28X31X11)
$16.90¢8 450
#011
GEAR, MAINSHAFT FOURTH (19T)
$106.65¢53 325
#012
COLLAR, SPLINE (26X14.3)
$21.25¢10 625
#013
GEAR, COUNTERSHAFT FOURTH (23T)
$120.86¢60 431
#014
GEAR, MAINSHAFT FIFTH (23T)
$108.83¢54 413
#015
COLLAR (26X29X12.3)
$18.05¢9 025
#016
GEAR, COUNTERSHAFT FIFTH (24T)
$121.54¢60 769
#017
COLLAR, DRIVE SPROCKET
$17.05¢8 525
#018
SPROCKET, DRIVE (13T)
$46.21¢23 106
#019
SCREW, SPECIAL FLAT (6X12)
$2.63¢1 313
#020
BOLT, FLANGE SOCKET (6X14)
$4.06¢2 031
#021
BOLT, UBS (8X33)
$4.68¢2 338
#022
WASHER, SPLINE (26MM)
$3.08¢1 538
#023
PLATE, BEARING HOLDER
$0.78¢388
#024
WASHER, THRUST (24.1X37X1.0)
$4.40¢2 200
#025
WASHER, THRUST (17.1X30X1.5)
$4.40¢2 200
#026
WASHER, THRUST (27.2X35)
$5.90¢2 950
#027
WASHER, SPLINE (28X27X1)
$4.36¢2 181
#028
WASHER, THRUST (28MM)
$6.89¢3 444
#029
WASHER, SPLINE (26MM)
$4.07¢2 037
#030
WASHER, LOCK (26MM)
$4.33¢2 163
#031
WASHER, SPRING (24MM)
$5.16¢2 581
#032
WASHER, THRUST (19MM)
$5.30¢2 650
#033
CIRCLIP, SPECIAL (OUTER) (26MM)
$3.65¢1 825
#034
CIRCLIP (28MM)
$4.54¢2 269
#035
BEARING, RADIAL BALL SPECIAL (6205U)
$20.98¢10 488
#036
BEARING, RADIAL BALL (24X56X14)
$37.21¢18 606
#037
BEARING, RADIAL BALL (17X40X11)
$24.84¢12 419
#038
BEARING, NEEDLE (19X22X9.8)
$10.95¢5 475
#039
PLATE, COUNTERSHAFT BEARING
$5.91¢2 956
#040
D-RING (23.75MM)
$3.71¢1 856
#041
OIL SEAL (31X40X7) (ARAI)
$11.94¢5 969
