RIGHT CRANKCASE COVER WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

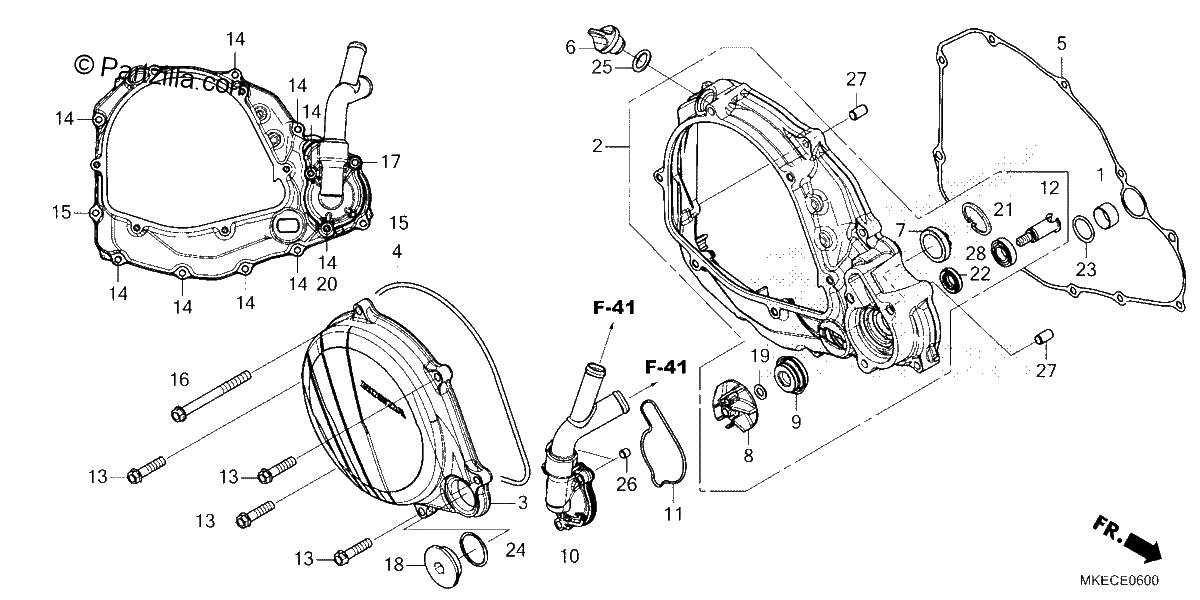

Diagrama de RIGHT CRANKCASE COVER WATER PUMP

Repuestos

#001
11102-MKE-A00
COLLAR, WATER PASS
$5.74¢2 869
1
#002
11330-MKE-AF0
COVER ASSY., R. CRANKCASE
$329.46¢164 731
1
#003
11351-MKE-HINSON
CLUTCH OUTER (PART AVAILABLE FROM HINSON RACING-SEE PIB#17170 TO ORDER)
No Disponible
1
#004
11352-MKE-A70
GASKET, CLUTCH COVER
$14.31¢7 156
1
#005
11394-MKE-A71
GASKET, Right COVER
$35.86¢17 931
1
#006
15611-K95-A20
CAP, OIL FILLER
$20.94¢10 469
1
#007
15661-MAS-003
FINDER, OIL LEVEL (SOURCE: VINTAGE PARTS INC.)
No Disponible
1
#008
19215-MEN-850
IMPELLER, WATER PUMP
$49.44¢24 719
1
#009
19217-KRN-A61
SEAL, MECHANICAL
$53.86¢26 931
1
#010
19220-MKE-AF0
COVER, WATER PUMP
$141.90¢70 950
1
#011
19226-MKE-A00
GASKET, WATER PUMP
$6.20¢3 100
1
#012
19241-MKE-A00
SHAFT, WATER PUMP
$69.92¢34 963
1
#013
90020-GHB-680
BOLT, FLANGE (6X25)
$2.91¢1 456
1
#014
90020-GHB-690
BOLT, FLANGE (6X28)
$2.99¢1 494
1
#015
90020-GHB-720
BOLT, FLANGE (6X35)
$3.20¢1 600
1
#016
90020-GHB-790
BOLT, FLANGE (6X65)
$3.94¢1 969
1
#017
90020-GHB-810
BOLT, FLANGE (6X75)
$4.14¢2 069
1
#018
90087-HB5-000
CAP (30MM)
$19.51¢9 756
1
#019
90447-KE1-000
WASHER, SEALING (7MM)
$3.43¢1 713
1
#020
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#021
91002-MEN-A31
BEARING, BALL (12X24X6)
$10.32¢5 163
1
#022
91201-148-003
OIL SEAL (12X22X5) (ARAI)
$4.91¢2 456
1
#022
91201-965-000
OIL SEAL (12X22X5)
$4.91¢2 456
1
#023
91302-MKE-A70
O-RING (2.4X19)
$2.46¢1 231
1
#024
91305-KF0-003
O-RING (27X2) (ARAI)
$3.65¢1 825
1
#025
91307-KRN-A41
D-RING (14X3)
$3.65¢1 825
1
#026
91320-KE1-000
PIN, DOWEL (8X7)
$2.88¢1 438
1
#027
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#028
94520-32000
CIRCLIP (INNER) (32MM)
$2.27¢1 138
1
