CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

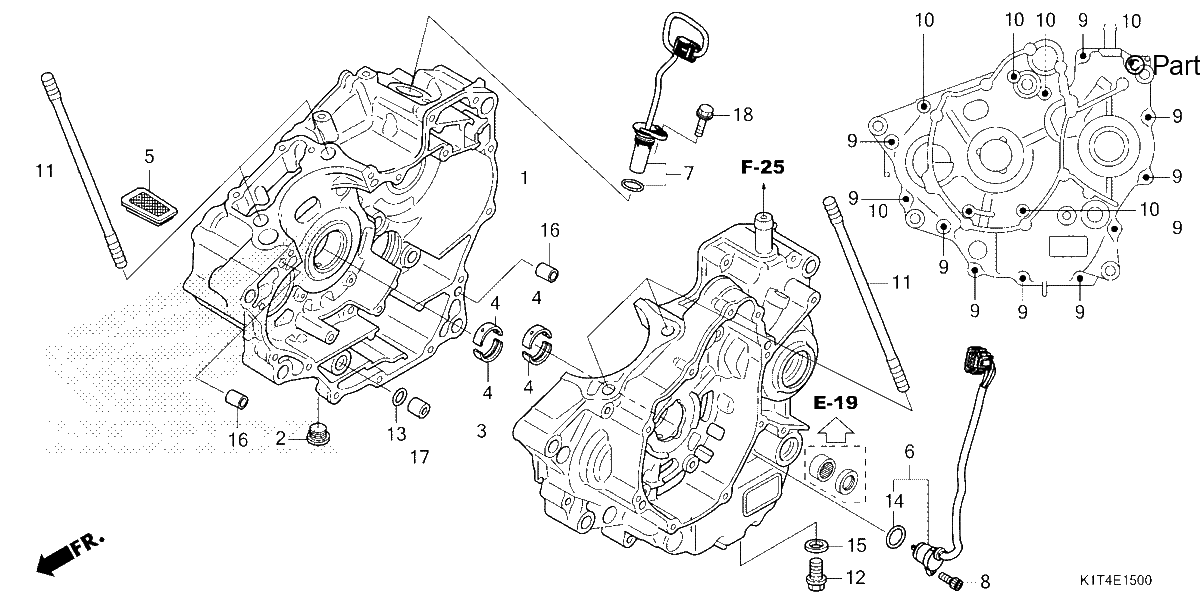

Diagrama de CRANKCASE

Repuestos

#001
11100-K33-700
CRANKCASE, R.
$236.54¢118 269
1
#002
11107-KYJ-900
BOLT, SEALING (16MM)
$4.06¢2 031
1
#003
11200-K1T-E10
CRANKCASE, Left
$237.30¢118 650
1
#004
13312-K33-D01
BEARING A, CRANKSHAFT (BLUE)
$13.67¢6 837
1
#004
13313-K33-D01
BEARING B, CRANKSHAFT (BLACK)
$13.67¢6 837
1
#004
13314-K33-D01
BEARING C, CRANKSHAFT (BROWN)
$13.67¢6 837
1
#004
13315-K33-305
BEARING D, CRANKSHAFT (OVER SIZE) (RED)
$16.09¢8 044
1
#004
13316-K33-305
BEARING E, CRANKSHAFT (OVER SIZE) (GREEN)
$16.09¢8 044
1
#004
13317-K33-305
BEARING F, CRANKSHAFT (OVER SIZE) (YELLOW)
$16.09¢8 044
1
#004
13318-K33-305
BEARING G, CRANKSHAFT (OVER SIZE) (PINK)
$16.25¢8 125
1
#005
15421-KYJ-900
SCREEN, OIL FILTER
$3.65¢1 825
1
#006
35759-K1T-E11
SWITCH ASSY., CHANGE
$108.77¢54 387
1
#007
37700-KZZ-901
SENSOR ASSY., SPEED
$59.10¢29 550
1
#008
90011-MGP-000
BOLT, SOCKET KNOCK (6MM)
$9.14¢4 569
1
#009
90014-KYJ-900
BOLT, FLANGE (6X40)
$0.80¢400
1
#010
90016-KYJ-900
BOLT, FLANGE (6X70) (NSHF)
$1.11¢556
1
#011
90032-K33-D00
BOLT, STUD (10X178)
$4.51¢2 256
1
#012
90061-KYJ-900
BOLT, DRAIN PLUG (12MM)
$1.23¢613
1
#013
91301-KYJ-901
O-RING (11.8X1.9)
$0.58¢288
1
#014
91305-KC1-850
O-RING (16.5X2.5)
$2.52¢1 263
1
#015
94109-12000
WASHER, DRAIN PLUG (12MM)
$1.57¢788
1
#016
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#017
94301-12160
PIN A, DOWEL (12X16)
$2.92¢1 463
1
#018
95701-06018-00
BOLT, FLANGE (6X18)
$2.09¢1 044
1
