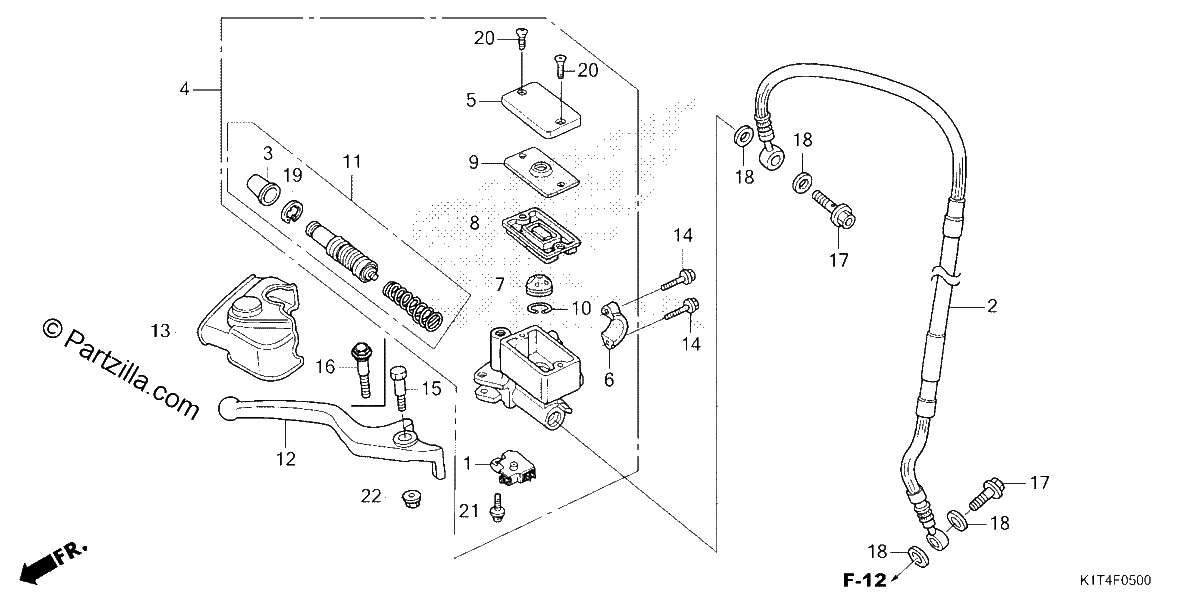

FRONT BRAKE MASTER CYLINDER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
#002
HOSE, FR. BRAKE
$40.87¢20 435
#003
BOOT
$13.10¢6 549
#004
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$80.11¢40 055
#004
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$80.11¢40 055
#005
CAP, MASTER CYLINDER
$29.42¢14 708
#006
HOLDER, MASTER CYLINDER
$14.48¢7 239
#007
SEPARATOR
$8.50¢4 249
#008
DIAPHRAGM
$11.33¢5 664
#009
PLATE, DIAPHRAGM
$11.59¢5 796
#010
RING
$3.36¢1 679
#011
MASTER CYLINDER SET
$42.69¢21 344
#012
LEVER, R. HANDLEBAR (COO)
$11.58¢5 790
#012
LEVER, R. HANDLEBAR
$11.58¢5 790
#013
COVER, R. HANDLE LEVER
$6.30¢3 151
#014
BOLT, FLANGE (6X22)
$2.75¢1 374
#015
BOLT, HANDLE LEVER PIVOT
$7.24¢3 622
#017
BOLT, OIL (10X22)
$8.18¢4 088
#018
WASHER, OIL BOLT
$4.46¢2 231
#019
CIRCLIP
$2.85¢1 426
#020
SCREW, FLAT (4X12)
$1.07¢535
#020
SCREW, FLAT (4X12)
$1.07¢535
#021
SCREW-WASHER (4X12)
$1.59¢793
#021
SCREW-WASHER (4X12)
$1.59¢793
#022
NUT, FLANGE (6MM)
$0.74¢368
