CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

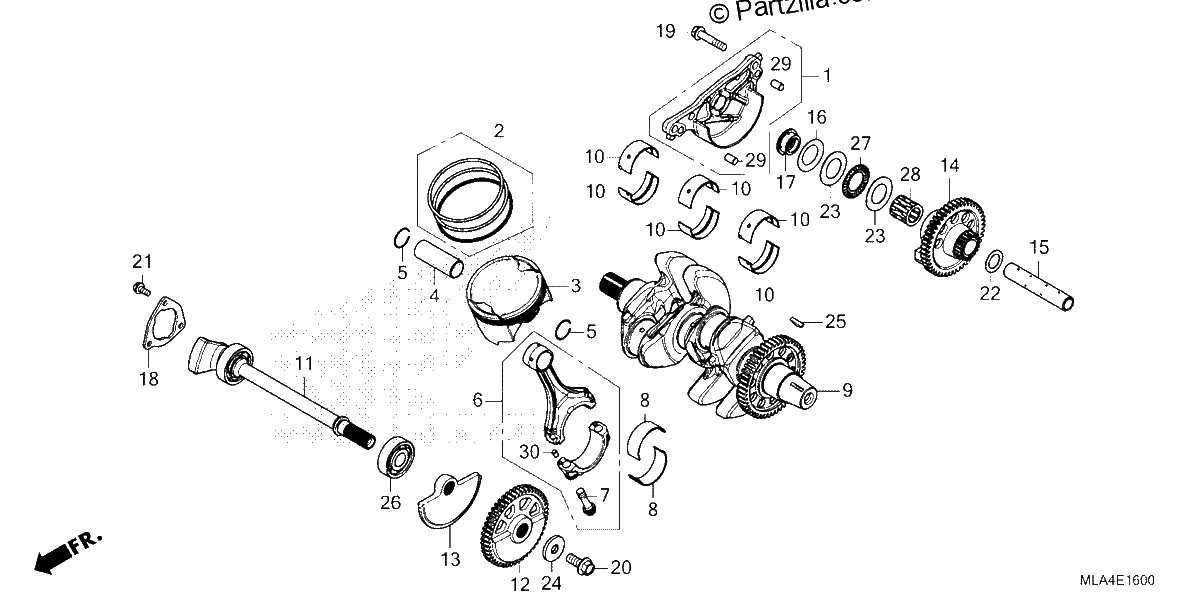

Diagrama de CRANKSHAFT PISTON

Repuestos

#001
11230-MJP-G50
HOLDER, RR. BALANCER SHAFT
$89.32¢44 660
1
#002
13011-MKS-E00
RING SET, PISTON (STD)
$71.77¢35 886
1
#003
13101-MKS-E00
PISTON
$170.20¢85 100
1
#004
13111-MKS-E00
PIN, PISTON
$28.98¢14 490
1
#005
13112-MC7-000
CLIP, PISTON PIN (22MM)
$2.83¢1 414
1
#006
13210-MKS-E00
ROD ASSY., CONNECTING
$306.03¢153 013
1
#007
13213-MJP-G51
BOLT, CONNECTING ROD
$7.34¢3 669
1
#008
13218-MJP-G51
BEARING E, CONNECTING ROD (YELLOW)
$12.73¢6 365
1
#008
13217-MJP-G51
BEARING D, CONNECTING ROD (GREEN)
$12.82¢6 411
1
#008
13216-MJP-G51
BEARING C, CONNECTING ROD (BROWN)
$12.73¢6 365
1
#008
13215-MJP-G51
BEARING B, CONNECTING ROD (BLACK)
$12.73¢6 365
1
#008
13214-MJP-G51
BEARING A, CONNECTING ROD (BLUE)
$12.73¢6 365
1
#009
13300-MKS-E50
CRANKSHAFT
$934.78¢467 389
1
#010
13312-MKS-E01
BEARING A, CRANKSHAFT (BLUE)
$15.69¢7 843
1
#010
13313-MKS-E01
BEARING B, CRANKSHAFT (BLACK)
$15.69¢7 843
1
#010
13314-MKS-E01
BEARING C, CRANKSHAFT (BROWN)
$15.69¢7 843
1
#010
13315-MKS-E01
BEARING D, CRANKSHAFT (GREEN)
$15.69¢7 843
1
#010
13316-MKS-E01
BEARING E, CRANKSHAFT (YELLOW)
$15.69¢7 843
1
#011
13420-MKS-E00
SHAFT, FR. BALANCER
No Disponible
1
#011
13420-MLN-E00
SHAFT, Front BALANCER
$382.42¢191 211
1
#012
13431-MKS-E00
GEAR, FR. BALANCER DRIVEN (56T)
$129.03¢64 515
1
#013
13433-MKS-E00
WEIGHT, L. FR. BALANCER
$138.41¢69 207
1
#014
13440-MKS-E00
GEAR, RR. BALANCER DRIVEN (46T)
$328.41¢164 203
1
#015
13445-MJP-G50
SHAFT, RR. BALANCER
$31.44¢15 721
1
#016
13446-MKS-E00
SPRING, RR. BALANCER THRUST
$18.81¢9 407
1
#017
13447-MJP-G50
COLLAR, Rear BALANCER
$21.32¢10 660
1
#018
13481-MJP-G50
PLATE, BALANCER BEARING SETTING
$6.30¢3 151
1
#019
90003-MCS-000
BOLT, FLANGE (8X40)
$2.30¢1 150
1
#020
90013-MJP-G50
BOLT, SPECIAL (10X25)
$5.05¢2 524
1
#021
90030-GHB-630
BOLT, FLANGE (6X14)
$2.64¢1 322
1
#022
90402-MKS-E00
WASHER (18X27.5X1.0)
$4.19¢2 093
1
#023
90404-MJP-G50
WASHER (25X42X1.0)
$5.37¢2 685
1
#024
90405-MFA-D00
WASHER (10.5X31.8)
$4.90¢2 449
1
#025
90701-KAS-900
KEY, SPECIAL WOODRUFF (25X18)
$6.24¢3 122
1
#026
91002-MJP-G53
BEARING, RADIAL BALL (17X47X14)
$50.05¢25 024
1
#027
91005-MJP-G51
BEARING, THRUST NEEDLE (25X42X2)
$11.42¢5 710
1
#028
91015-MJP-G51
BEARING B, NEEDLE (18X27X26.8)(BLUE)
$25.47¢12 736
1
#028
91016-MJP-G51
BEARING C, NEEDLE (18X27X26.8)(WHITE)
$24.39¢12 196
1
#028
91017-MJP-G51
BEARING D, NEEDLE (18X27X26.8)(GREEN)
$24.39¢12 196
1
#029
94302-08140
PIN B, DOWEL (8X14)
$2.53¢1 265
1
#030
94303-04065
PIN C, DOWEL (4X6.5)
$2.53¢1 265
1
