TRANSMISSION 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

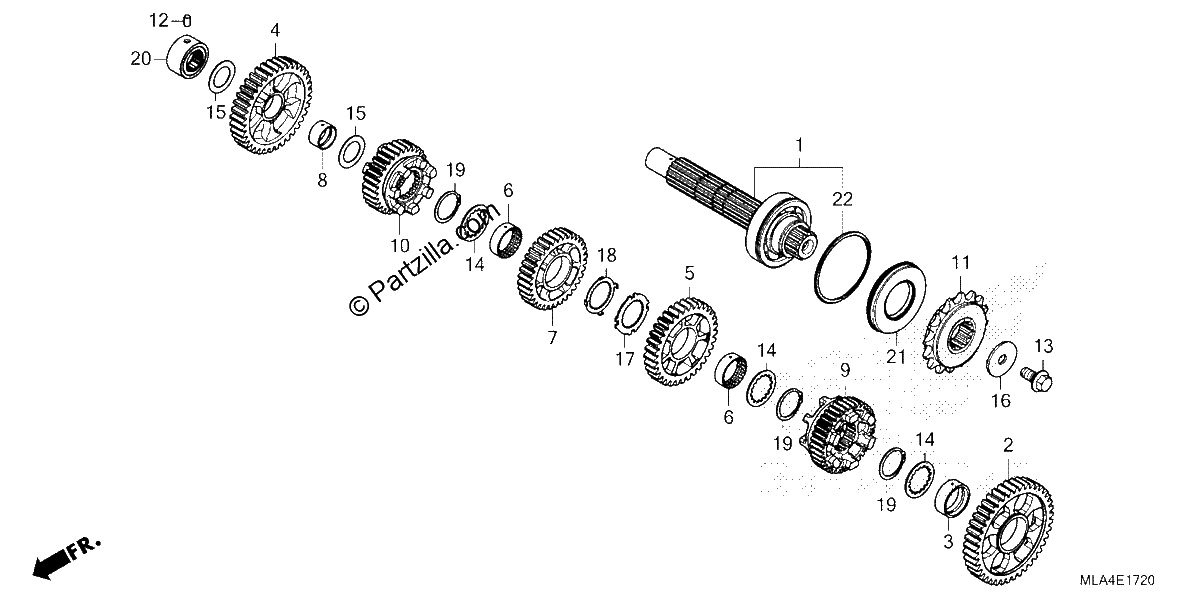

Diagrama de TRANSMISSION 3

Repuestos

#001
23220-MJP-G80
COUNTERSHAFT
$233.44¢116 719
1
#002
23421-MKS-E50
GEAR, COUNTERSHAFT FIRST (41T)
$161.19¢80 594
1
#003
23422-HL4-000
COLLAR (30X35X13)
$22.83¢11 413
1
#004
23441-MKS-E50
GEAR, COUNTERSHAFT SECOND (37T)
$154.16¢77 081
1
#005
23461-MKS-E50
GEAR, COUNTERSHAFT THIRD (33T)
$148.36¢74 181
1
#006
23462-MAT-000
COLLAR, SPLINE (30X11)
$29.61¢14 806
1
#007
23481-MKS-E50
GEAR, COUNTERSHAFT FOURTH (34T)
$148.36¢74 181
1
#008
23495-KY1-000
COLLAR (22X13)
$26.90¢13 450
1
#009
23501-MKS-E50
GEAR, COUNTERSHAFT FIFTH (36T)
$171.50¢85 750
1
#010
23521-MKS-E50
GEAR, COUNTERSHAFT SIXTH (30T)
$165.71¢82 856
1
#011
23801-MEE-D00
SPROCKET, DRIVE (16T)
$67.53¢33 763
1
#012
24261-283-000
PIN, GEARSHIFT FORK GUIDE
$5.11¢2 556
1
#013
90037-422-003
BOLT, SPECIAL (10MM)
$8.89¢4 444
1
#014
90452-HL4-000
WASHER, SPLINE (30X38X1.5)
$3.91¢1 956
1
#015
90455-ML7-000
WASHER B, THRUST (22MM) (BLUE)
$5.90¢2 950
1
#016
90459-438-000
WASHER (10.2MM)
$7.08¢3 538
1
#017
90463-MAT-000
WASHER, SPLINE (30MM)
$5.88¢2 938
1
#018
90464-MAT-000
WASHER, LOCK (30MM)
$8.65¢4 325
1
#019
90604-MM5-000
CIRCLIP (30MM)
$5.42¢2 713
1
#020
91023-MM5-641
BEARING, NEEDLE (22MM)
$31.41¢15 706
1
#021
91207-MBB-003
OIL SEAL (39X72X8)
$14.88¢7 438
1
#021
91207-MBB-013
OIL SEAL (39X72X8)
$14.88¢7 438
1
#022
94560-72200
RING, SNAP (72MM)
$4.81¢2 406
1
