PEDAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

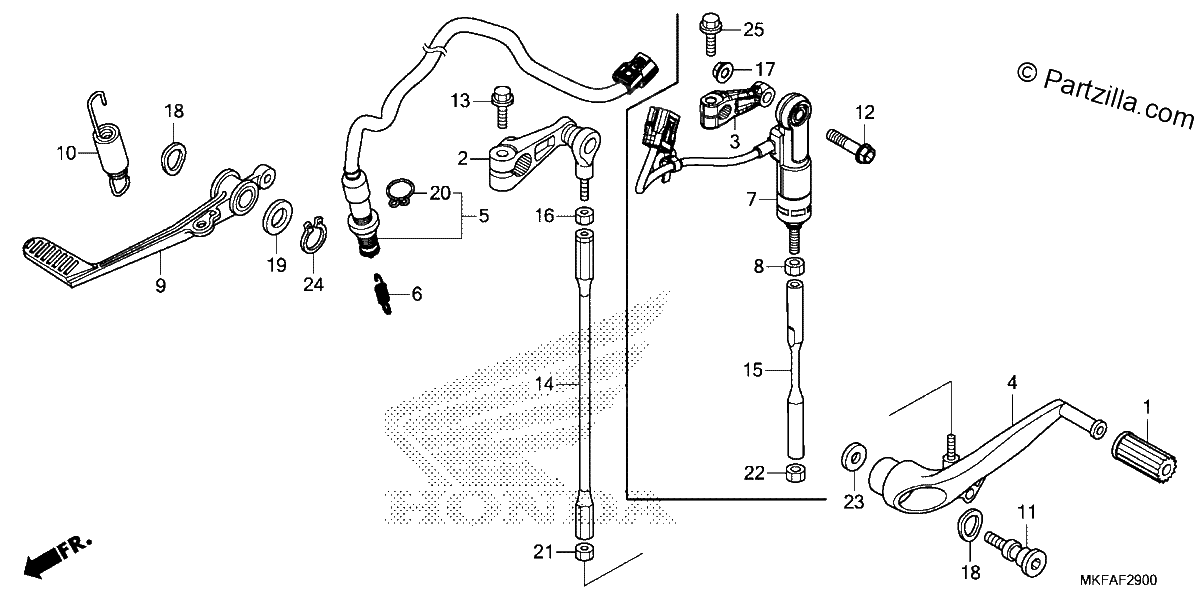

Diagrama de PEDAL

Repuestos

#001
24705-MR7-000
RUBBER, GEARSHIFT PEDAL
$4.20¢2 099
1
#002
24710-MFL-D20
ARM, GEARSHIFT
$79.23¢39 618
1
#004
24720-MFL-305
PEDAL, GEARSHIFT (COO)
$97.44¢48 720
1
#004
24720-MFL-D20
PEDAL, GEARSHIFT
$97.44¢48 720
1
#005
35350-MKF-D41
SWITCH ASSY., RR. STOP
$42.16¢21 079
1
#006
35357-MBR-000
SPRING, STOP SWITCH
$2.83¢1 414
1
#009
46500-MFL-D20
PEDAL, Rear BRAKE
$138.59¢69 293
1
#010
46515-MBW-000
SPRING ASSY., BRAKE PEDAL
$7.83¢3 916
1
#011
90113-MCF-000
BOLT, CHANGE PIVOT
$8.88¢4 439
1
#013
90026-GHB-660
BOLT, FLANGE (6X20)
$2.75¢1 374
1
#014
90165-MFL-D20
BAR, CHANGE
$23.91¢11 954
1
#016
90201-700-000
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
$0.91¢454
1
#018
90505-MBW-000
WASHER, CHANGE PEDAL WAVE
$4.48¢2 242
1
#019
90557-230-000
WASHER (15.2X25)
$2.83¢1 414
1
#020
90601-KAF-003
CLIP, SWITCH COVER
$3.16¢1 581
1
#021
94001-06020-0S
NUT, HEX. (6MM)
$1.62¢811
1
#023
94103-08700
WASHER, PLAIN (8MM)
$1.12¢558
1
#024
94511-15000
CIRCLIP, OUTER (15MM)
$0.80¢402
1
