OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

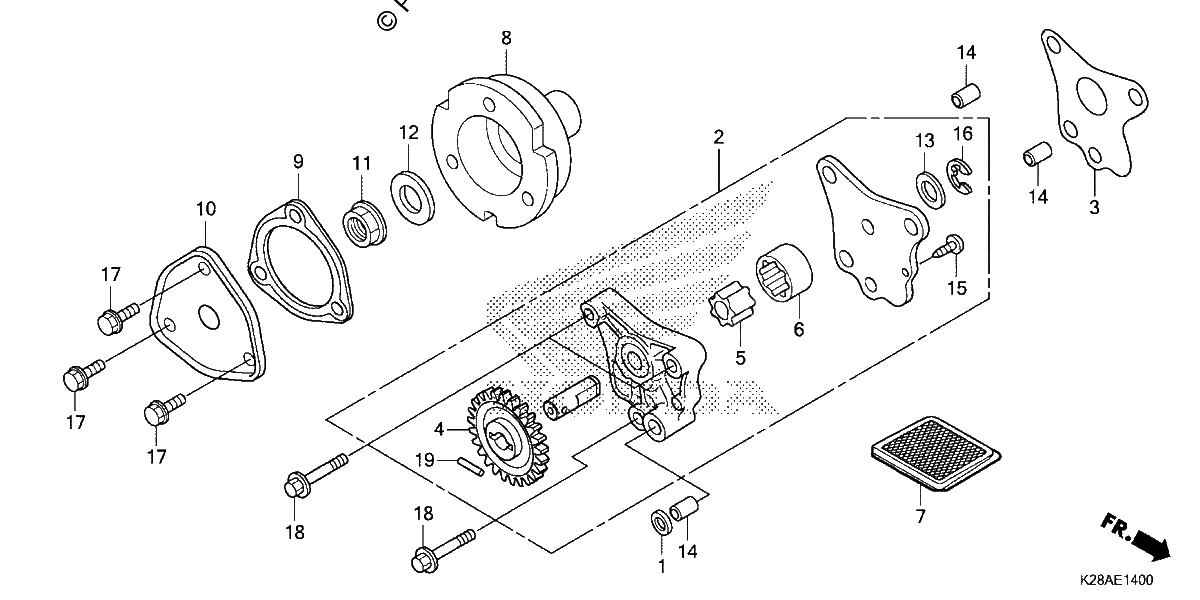

Diagrama de OIL PUMP

Repuestos

#001
12396-KRM-840
GASKET B, HEAD COVER
$0.58¢288
1
#002
15100-KYY-900
PUMP ASSY., OIL
$112.52¢56 262
1
#003
15119-KWS-901
GASKET, OIL PUMP
$6.44¢3 219
1
#004
15133-KYY-900
GEAR, OIL PUMP DRIVEN (23T)
$41.09¢20 544
1
#005
15331-KYY-900
ROTOR, OIL PUMP (INNER)
$16.38¢8 188
1
#006
15332-KYY-900
ROTOR, OIL PUMP (OUTER)
$19.52¢9 763
1
#007
15421-KSP-910
SCREEN, OIL FILTER
$4.25¢2 125
1
#008
15431-KWS-900
ROTOR, OIL FILTER
$48.69¢24 344
1
#009
15439-K26-901
GASKET, OIL FILTER COVER
$3.65¢1 825
1
#009
15439-KWS-901
GASKET, OIL FILTER COVER
$3.65¢1 825
1
#010
15441-KWS-900
COVER, OIL FILTER
$37.92¢18 963
1
#011
90202-KRM-840
NUT, SPECIAL FLANGE (14MM)
$1.05¢525
1
#012
90432-KPT-A00
WASHER (14.2X26X3)
$2.31¢1 156
1
#013
90455-KWS-900
WASHER (9.2MM)
$3.59¢1 794
1
#014
90702-KRM-840
PIN, DOWEL (8X14)
$0.86¢431
1
#015
93901-34120
SCREW, TAPPING (4X8)
$1.16¢581
1
#016
94540-06018
E-RING (6MM)
$3.65¢1 825
1
#017
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#018
96001-06035-00
BOLT, FLANGE (6X35)
$1.80¢900
1
#019
96220-30158
ROLLER (3X15.8)
$0.29¢144
1
