CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

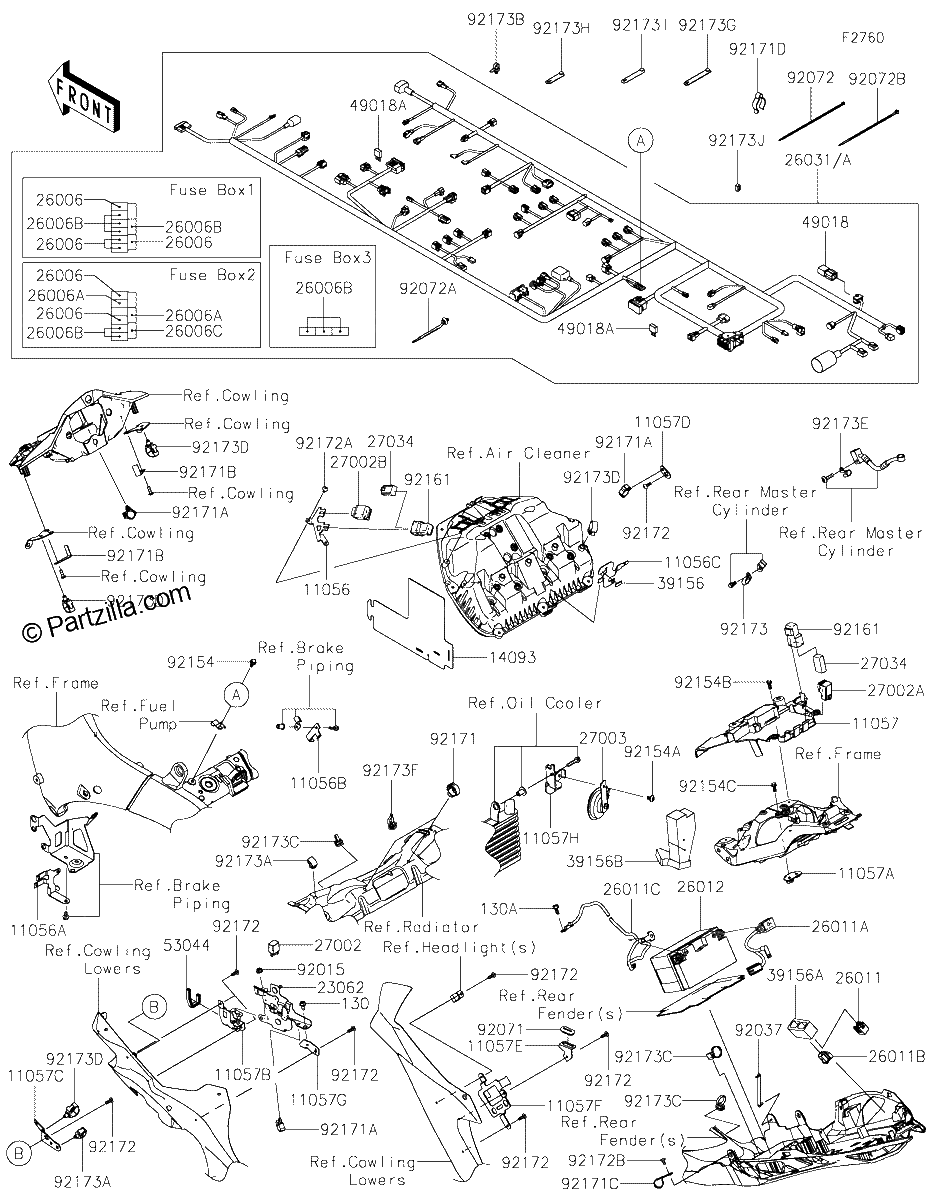

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.51¢753
1
#130A
130BA0614
BOLT FLANGED,6X14
$1.16¢581
1
#11056
11056-7706
BRACKET,RELAY
$5.15¢2 576
1
#11056A
11056-7816
BRACKET,SHIFTERGEAR POSITION
$8.29¢4 146
1
#11056B
11056-7828
BRACKET,FRAME,Left Hand
$5.37¢2 685
1
#11056C
11056-7955
BRACKET,HARNESS
$7.80¢3 899
1
#11057
11057-4222
BRACKET,TOOL
$33.55¢16 773
1
#11057A
11057-4225
BRACKET,ECU
$5.28¢2 639
1
#11057B
11057-4227
BRACKET,FUSE
$9.18¢4 589
1
#11057C
11057-4228
BRACKET,SIDE COWL.,LH
$6.34¢3 168
1
#11057D
11057-4229
BRACKET,SIDE COWL.,RH
$3.76¢1 880
1
#11057E
11057-4230
BRACKET,REGULATOR UNDER
$5.68¢2 841
1
#11057F
11057-4231
BRACKET,HEAD LAMP ECU
$21.08¢10 540
1
#11057G
11057-4232
BRACKET
$5.28¢2 639
1
#11057H
11057-4246
BRACKET,HORN
$51.99¢25 996
1
#14093
14093-0476
COVER,RELAY
$35.71¢17 854
1
#23062
23062-1301
BRACKET-COMP,REGULATOR
$17.74¢8 872
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
1
#26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
$6.15¢3 076
1
#26006C
26006-1080
FUSE,MINI BLADE,30A,GREEN
$4.66¢2 329
1
#26006B
26006-1078
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
1
#26011
26011-0275
WIRE-LEAD,CONNECTOR COVER
$14.46¢7 228
1
#26011C
26011-1956
WIRE-LEAD,BATTERY(-)
$60.04¢30 021
1
#26011B
26011-1901
WIRE-LEAD,DIAG CONNECTOR
$41.25¢20 625
1
#26011A
26011-1889
WIRE-LEAD,BATTERY(+)
$54.49¢27 244
1
#26012
26012-0564
BATTERY,YTZ10S,12V 8.6AH
No Disponible
1
#26031A
26031-3787
HARNESS,MAIN
No Disponible
1
#26031
26031-3786
HARNESS,MAIN
$2009.67¢1 004 835
1
#27002B
27002-0068
RELAY Assembly,SIGNAL LAMP
$92.53¢46 264
1
#27002A
27002-0047
RELAY-ASSY,STARTER
$41.16¢20 579
1
#27002
27002-0045
RELAY-ASSY,HEAD LAMP
$46.84¢23 420
1
#27003
27003-0161
HORN
$89.77¢44 884
1
#27034
27034-0012
RELAY
$41.16¢20 579
1
#39156B
39156-2781
PAD,HORN
$56.57¢28 284
1
#39156A
39156-2620
PAD,DIAG CONNECTOR
$4.75¢2 375
1
#39156
39156-0389
PAD,HEAT GUARD
$1.93¢966
1
#49018A
49018-0007
DIODE
$52.34¢26 168
1
#49018
49018-0005
DIODE
$49.37¢24 685
1
#53044
53044-0018
TRIM
$4.45¢2 225
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.02¢1 512
1
#92037
92037-1903
CLAMP,SPEED,L=80.5
$7.18¢3 588
1
#92071
92071-1187
GROMMET
$4.53¢2 266
1
#92072
92072-0782
BAND,202X3.6
$1.81¢903
1
#92072A
92072-1414
BAND
$3.40¢1 702
1
#92072B
92072-3768
BAND,L=148
$3.59¢1 794
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.55¢776
1
#92154A
92154-0774
BOLT,SOCKET,6X10
$1.55¢776
1
#92154B
92154-1864
BOLT,FLANGED,6X14
$1.87¢937
1
#92154C
92154-4349
BOLT,FLANGED,6X12
$1.71¢857
1
#92161
92161-2290
DAMPER
$5.68¢2 841
1
#92171A
92171-0316
CLAMP,BRAKE HOSE
$3.51¢1 754
1
#92171
92171-0068
CLAMP,CLIP,DIA=20
$2.46¢1 231
1
#92171B
92171-0652
CLAMP,L=60
$2.22¢1 110
1
#92171C
92171-1279
CLAMP
$9.63¢4 813
1
#92171D
92171-1283
CLAMP,CABLE
$11.32¢5 658
1
#92172B
92172-0335
SCREW,TAPPING,5X10
$1.87¢937
1
#92172A
92172-0262
SCREW,TAPPING,5X10
$1.24¢621
1
#92172
92172-0175
SCREW,TAPPING,5X16
$1.59¢793
1
#92173C
92173-0791
CLAMP
$11.56¢5 779
1
#92173I
92173-2199
CLAMP
$1.43¢713
1
#92173H
92173-2198
CLAMP
$1.43¢713
1
#92173G
92173-2194
CLAMP
$1.68¢839
1
#92173F
92173-1578
CLAMP
$8.51¢4 255
1
#92173E
92173-0982
CLAMP
$5.32¢2 662
1
#92173D
92173-0861
CLAMP
$2.53¢1 265
1
#92173B
92173-0742
CLAMP
$8.38¢4 192
1
#92173A
92173-0736
CLAMP,12MM DIA.
$4.61¢2 306
1
#92173
92173-0082
CLAMP
$5.84¢2 921
1
#92173J
92173-2437
CLAMP
$2.08¢1 041
1
