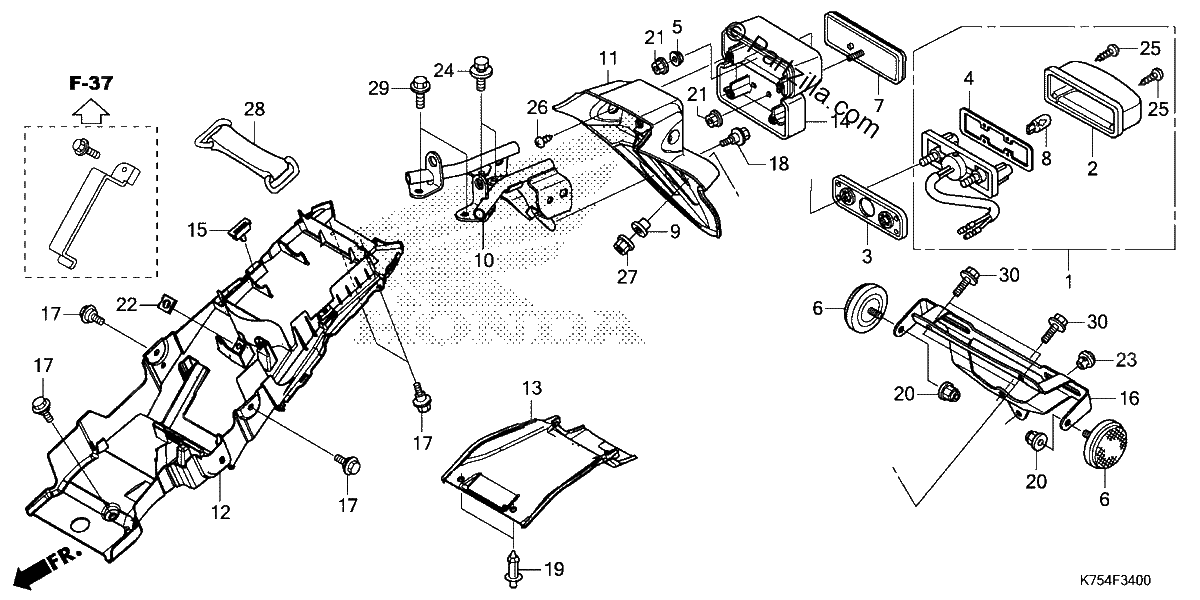

REAR FENDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
LIGHT ASSY., LICENSE (12V 5W) (COO)
$42.91¢21 456
#001
LIGHT ASSY., LICENSE (12V 5W)
$42.91¢21 456
#002
COVER
$26.38¢13 188
#003
RUBBER, LICENSE LIGHT
$5.51¢2 756
#004
GASKET, LENS
$4.16¢2 081
#005
COLLAR, REGULATOR MOUNTING
$3.08¢1 538
#006
REFLECTOR, Rear REFLEX (RED)
$15.50¢7 750
#007
REFLECTOR, REFLEX
$8.94¢4 469
#008
BULB, LICENSE LIGHT (12V 5W) (W5W) (LIFE ELEX)
$2.81¢1 406
#009
COLLAR, Front WHEEL COVER
$6.20¢3 100
#010
STAY, Rear FENDER
$85.14¢42 569
#011
FENDER, RR.
$28.05¢14 025
#012
FENDER B, RR.
$25.94¢12 969
#013
COVER, Rear. (LOWER)
$5.90¢2 950
#014
BRACKET, LICENSE LIGHT
$9.95¢4 975
#015
PLUG, RUBBER
$2.92¢1 463
#016
BRACKET, NUMBER PLATE
$21.54¢10 769
#017
BOLT, FLANGE (6MM)
$3.65¢1 825
#018
BOLT, FLANGE (6MM)
$6.79¢3 394
#019
CLIP, BUMPER SEAL
$5.72¢2 863
#020
NUT, U (6MM) (FUJI SEIMITSU)
$1.79¢894
#021
NUT, U (5MM)
$0.86¢431
#022
NUT, SPRING (6MM)
$3.65¢1 825
#023
PLUG, HOLE
$3.30¢1 650
#024
BOLT-WASHER (6X14)
$1.21¢606
#025
SCREW, TAPPING (4X16)
$1.06¢531
#026
SCREW, TAPPING (4X12)
$1.16¢581
#027
NUT, FLANGE (6MM)
$0.80¢400
#028
BAND, BATTERY (132MM)
$7.66¢3 831
#029
BOLT, FLANGE (8X12)
$1.45¢725
#030
BOLT, FLANGE (6X14)
$1.54¢769
