FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

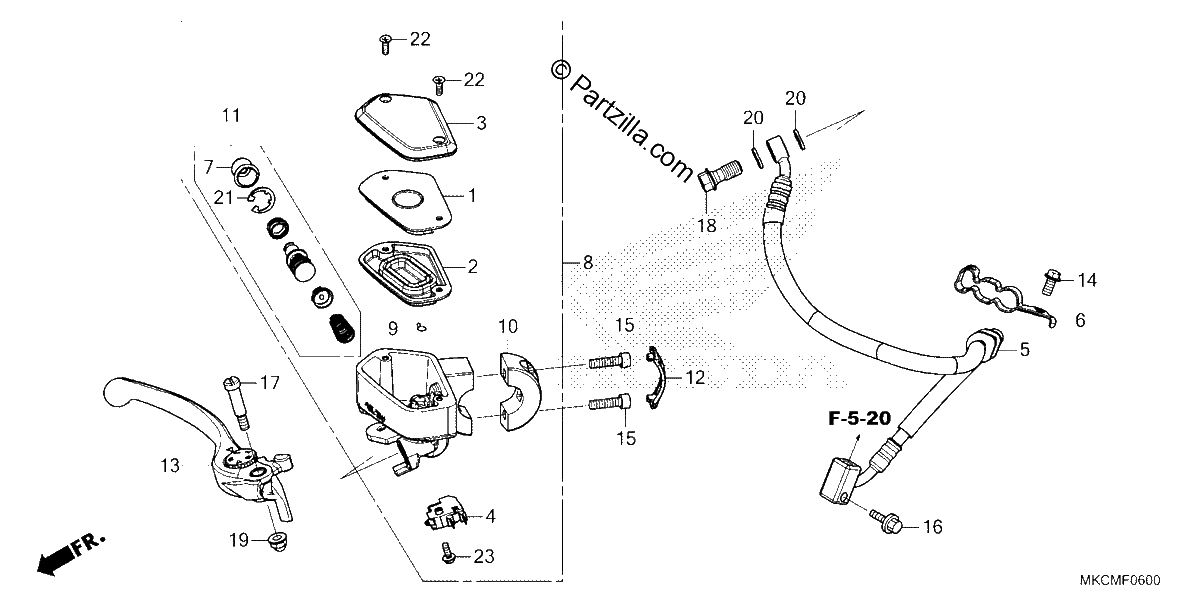

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#001
22887-MGE-006
PLATE, DIAPHRAGM
$9.35¢4 675
1
#002
22888-MGE-006
DIAPHRAGM
$15.59¢7 797
1
#003
22889-MGE-006
CAP, MASTER CYLINDER
$40.43¢20 217
1
#004
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
1
#005
45123-MKC-A01
HOSE A, FR. BRAKE
$74.20¢37 099
1
#006
45155-MKC-A00
CLAMP A, FR. BRAKE
$8.31¢4 157
1
#007
45504-410-003
BOOT
$13.10¢6 549
1
#008
45510-MKC-A01
MASTER CYLINDER SUB-ASSY., FR.BRAKE
$306.93¢153 467
1
#009
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#010
45517-MAM-A62
HOLDER, MASTER CYLINDER
$15.26¢7 630
1
#011
45530-MA5-671
MASTER CYLINDER SET
$76.59¢38 295
1
#012
45553-MAM-A60
CAP, BRAKE MASTER CYLINDER HOLDER
$3.47¢1 737
1
#013
53170-MKC-A01
LEVER ASSY., R. HANDLE
$71.09¢35 546
1
#014
90013-GHB-610
BOLT, FLANGE (6X12)
$2.75¢1 374
1
#015
90101-MCL-000
BOLT, SOCKET (6X22)
$1.71¢857
1
#016
90111-187-000
BOLT, FLANGE (6MM)
$6.24¢3 122
1
#017
90114-MG9-951
BOLT, HANDLE LEVER
$8.80¢4 399
1
#018
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#019
90202-ZV0-000
NUT, CAP (6MM)
$3.29¢1 644
1
#020
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#021
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#022
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#022
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#023
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#023
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
