TRANSMISSION

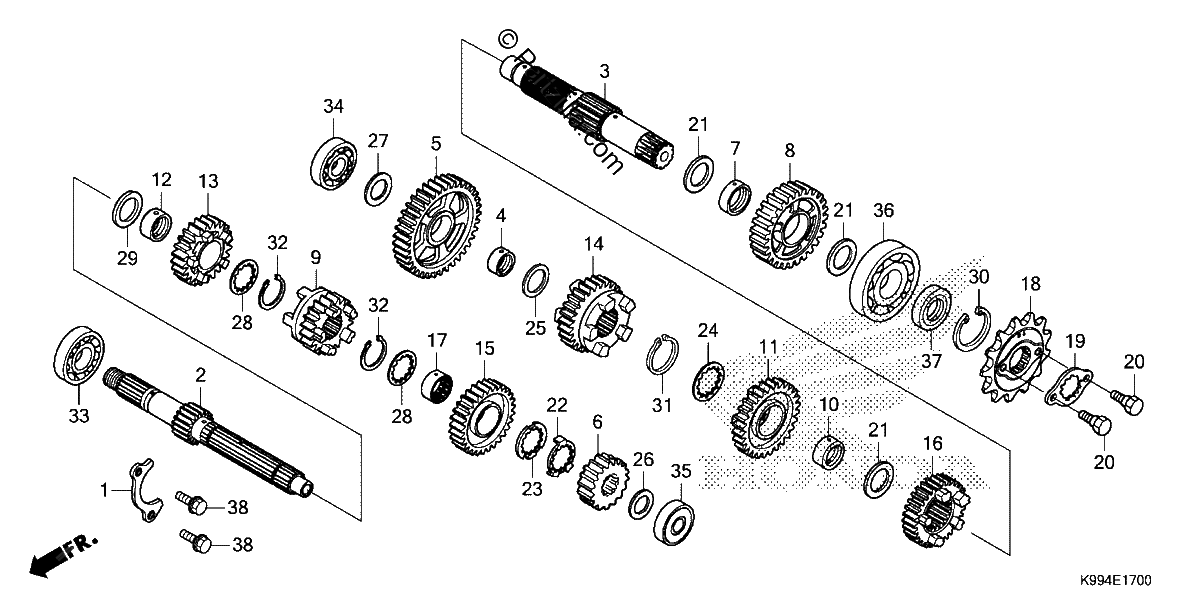

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
PLATE, BEARING SETTING
$4.11¢2 053
#002
MAINSHAFT (13T)
$42.52¢21 258
#003
COUNTERSHAFT (21T)
$47.83¢23 914
#004
COLLAR (18X21X10)
$12.71¢6 354
#005
GEAR, COUNTER FIRST (37T)
$31.28¢15 640
#006
GEAR, MAINSHAFT SECOND (20T)
$17.69¢8 844
#007
BUSH (22X25X10)
$10.64¢5 319
#008
GEAR, COUNTERSHAFT SECOND (38T)
$26.94¢13 472
#009
GEAR, MAINSHAFT THIRD (20T)
$36.27¢18 135
#010
BUSH (22X25X13.1)
$18.46¢9 229
#011
GEAR, COUNTER THIRD (28T)
$28.05¢14 024
#012
BUSH (20X23X17.4)
$27.63¢13 817
#013
GEAR, MAINSHAFT FOURTH (24T)
$28.96¢14 478
#014
GEAR, COUNTER FOURTH (26T)
$35.74¢17 871
#015
GEAR, MAINSHAFT FIFTH (29T)
$29.78¢14 892
#016
GEAR, COUNTERSHAFT FIFTH (26T)
$33.17¢16 583
#017
COLLAR, SPLINE (23MM)
$26.09¢13 047
#018
SPROCKET (13T
$56.41¢28 204
#018
SPROCKET, DRIVE (13T)
$56.41¢28 204
#019
PLATE, FIXING
$3.04¢1 518
#020
BOLT, DRIVE SPROCKET FIXING
$5.14¢2 570
#021
WASHER, THRUST (22.2MM)
$4.98¢2 490
#022
WASHER, LOCK (20X19X1.0)
$4.21¢2 105
#023
WASHER, THRUST (20X19X1.0)
$4.34¢2 168
#024
WASHER, THRUST INVOLUTE (22X21X1)
$4.58¢2 289
#025
WASHER, THRUST (18MM)
$2.64¢1 322
#026
WASHER (15X25X1.0)
$5.86¢2 932
#027
WASHER (17X28X1.0)
$3.90¢1 949
#028
WASHER, SPLINE (20MM)
$1.49¢747
#029
WASHER B, THRUST (20MM)
$0.94¢471
#030
CIRCLIP (INNER) (37MM)
$4.28¢2 139
#031
SET-RING (22MM)
$11.44¢5 721
#032
SET-RING (20MM)
$2.43¢1 213
#033
BEARING, RADIAL BALL (6204) (NSK)
$19.00¢9 499
#034
BEARING, RADIAL BALL (6203) (U) (NSK)
$16.42¢8 211
#035
BEARING, RADIAL BALL (6202U) (FAG)
$22.09¢11 046
#036
BEARING, RADIAL BALL (63/22)
$22.69¢11 345
#037
OIL SEAL (22X36X5)
$6.22¢3 111
#038
BOLT, FLANGE (6X14)
$1.13¢564
