UPPER COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

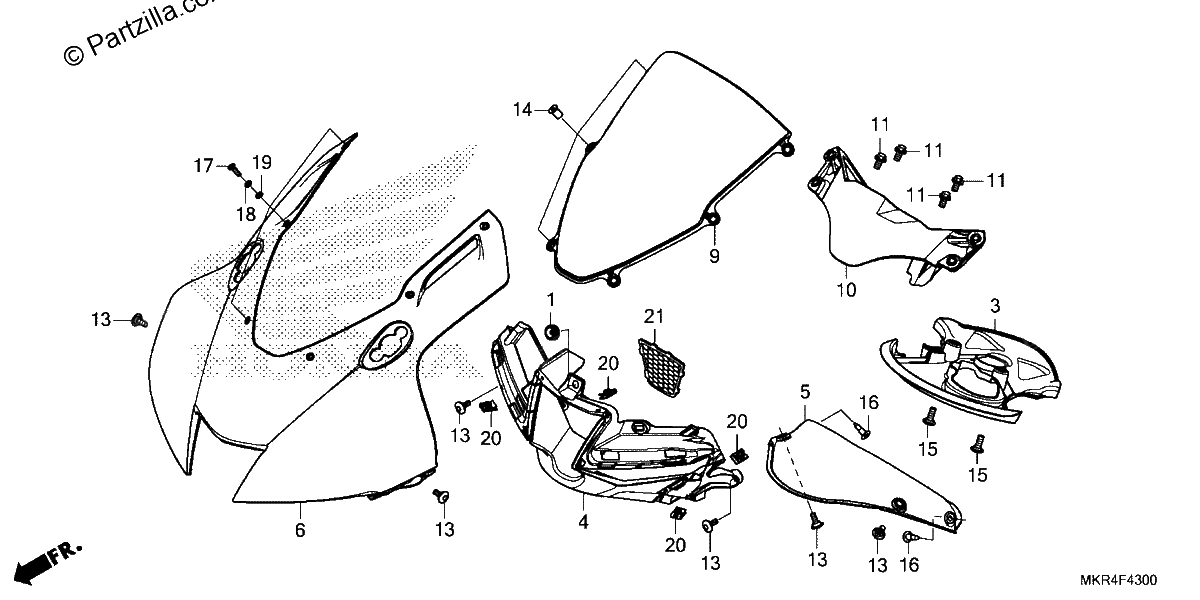

Diagrama de UPPER COWL

Repuestos

#001
53133-KR1-760
GROMMET, IGNITION COVER
$4.98¢2 490
1
#003
61403-MKR-D10
PROTECTOR, WIND
$24.86¢12 432
1
#004
64125-MKR-D10ZC
COVER, IN. (LOWER) (TYPE1)
$130.61¢65 303
1
#005
64130-MKR-D10
PANEL, IN. (LOWER)
$11.27¢5 635
1
#006
64200-MKR-D30ZA
COWL SET, FR. (UPPER) (TYPE1) (WL)
$183.88¢91 943
1
#009
64250-MKR-D10ZA
WINDSCREEN SET (TYPE1) (WL)
$227.93¢113 965
1
#010
64501-MKR-D10
STAY ASSY., COWL (UPPER)
$94.19¢47 093
1
#011
90026-GHB-610
BOLT, FLANGE (6X10)
$2.64¢1 322
1
#013
90102-MKA-D80
SCREW, SPECIAL (5X14)
$3.36¢1 679
1
#014
90110-MGB-Y00
NUT, WELL (4MM)
$4.67¢2 335
1
#015
90116-MFL-D20
SCREW, SPECIAL (6X16)
$3.07¢1 535
1
#016
90116-SP0-003
CLIP, BUMPER SEAL
$5.27¢2 633
1
#017
90118-MKR-D10
BOLT, SPECIAL (4X14)
$2.66¢1 328
1
#018
90505-MKR-D10
WASHER, THRUST (4MM)
$1.66¢828
1
#019
90506-MKR-D10
WASHER, SCREEN SETTING
$1.60¢799
1
#020
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#021
17380-MKR-A30
GRILL, AIR IN. DUCT
$19.55¢9 775
1
