TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

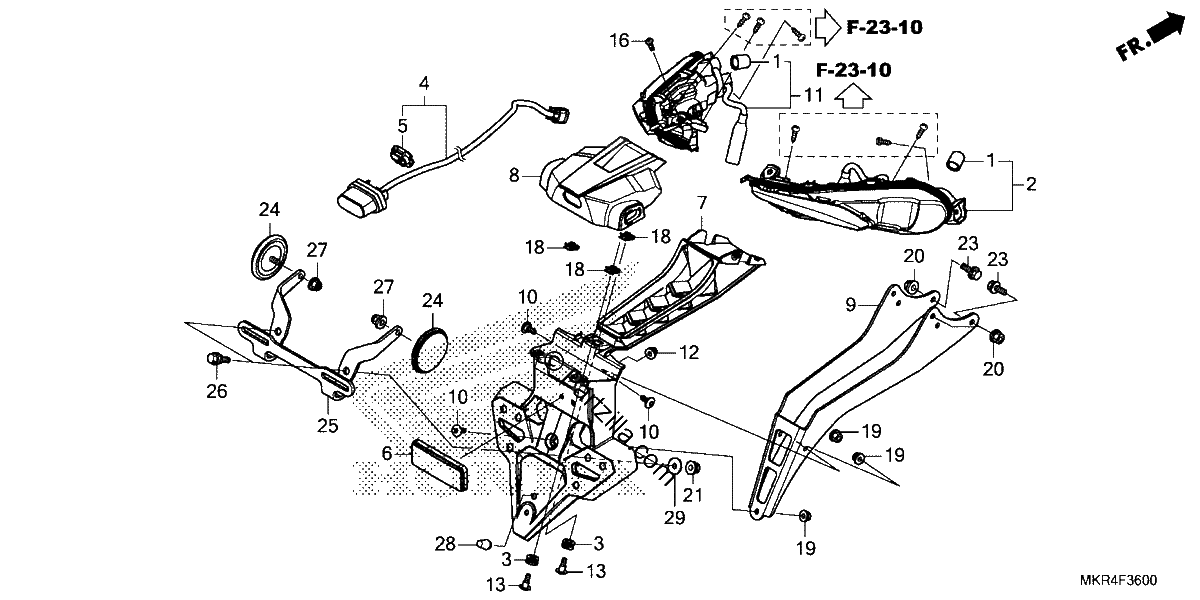

Diagrama de TAILLIGHT

Repuestos

#001
33113-K07-M51
PIPE, CP
$3.58¢1 788
1
#002
33701-MKR-D11
TAILLIGHT Assembly., Right.
$423.96¢211 980
1
#003
19639-GBL-000
RUBBER, MOUNTING
$1.26¢633
1
#004
33720-MKR-D11
LIGHT Assembly., LICENSE
$151.39¢75 693
1
#005
33721-K56-V51
HOLDER
$5.40¢2 702
1
#006
33741-MS6-921
REFLECTOR, REFLEX (STANLEY)
$16.31¢8 153
1
#007
80100-MKF-A20
FENDER A, RR.
$72.71¢36 357
1
#008
80107-MKR-D10
COVER, LICENSE LIGHT
$13.41¢6 704
1
#009
80115-MKF-D40
STAY, RR. FENDER A
$221.24¢110 618
1
#010
90102-MKA-D80
SCREW, SPECIAL (5X14)
$3.36¢1 679
1
#011
33751-MKR-D11
TAILLIGHT Assembly., Left
$423.96¢211 980
1
#012
90301-MG8-000
NUT, FLANGE (5MM) (FUSE RASHI)
$5.52¢2 760
1
#013
90105-MBY-000
SCREW, SPECIAL (5X17)
$3.16¢1 581
1
#016
90116-MKF-D40
BOLT, SPECIAL (5X16)
$3.01¢1 507
1
#018
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#019
94050-05070
NUT, FLANGE (5MM)
$1.53¢765
1
#020
94050-06080
NUT, FLANGE (6MM)
$0.74¢368
1
#021
94050-06070
NUT, FLANGE (6MM)
$1.71¢857
1
#023
90025-GHB-620
BOLT, FLANGE (6X12)
$2.64¢1 322
1
#024
33741-HB9-641
REFLECTOR, Rear REFLEX (RED)
$14.26¢7 130
1
#025
84700-MKR-A30
BRACKET, NUMBER PLATE
$227.99¢113 994
1
#026
90139-MCA-A60
BOLT, FLANGE (6MM)
$3.36¢1 679
1
#027
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.54¢2 271
1
#028
90899-KL8-000
PLUG, CONE
$3.86¢1 932
1
#029
94103-06700
WASHER, PLAIN (6MM)
$0.85¢426
1
