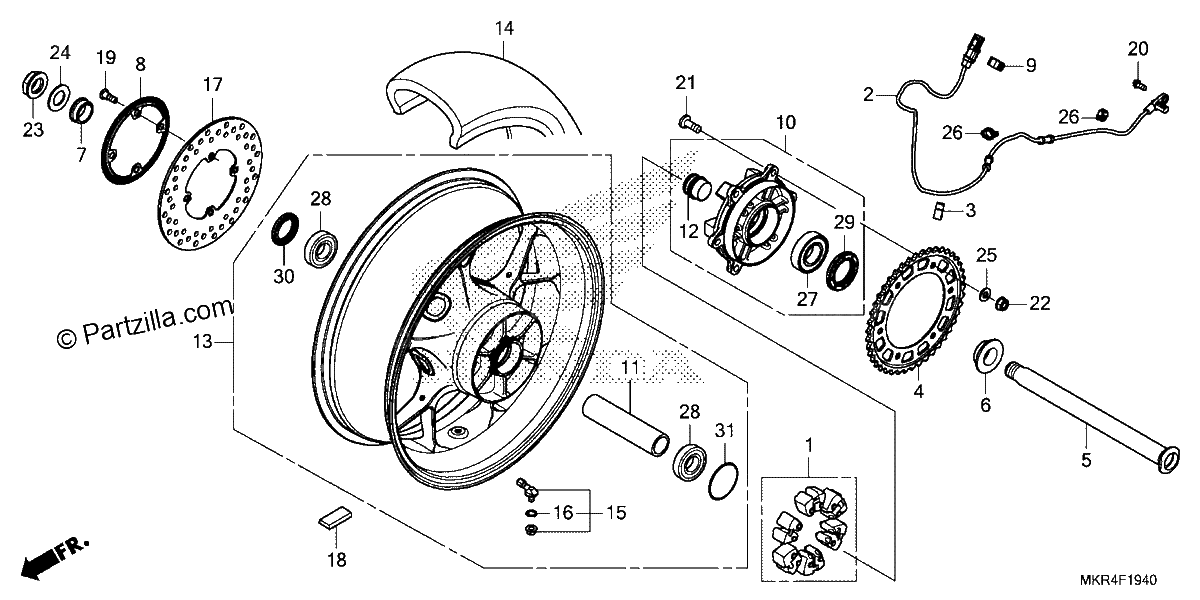

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$64.04¢32 019
#002
SENSOR, Rear WHEEL SPEED
$243.71¢121 856
#003
CLAMP, ABS WIRE (D12)
$3.50¢1 750
#004
SPROCKET, FINAL DRIVEN (43T)
$99.56¢49 781
#005
AXLE, Rear WHEEL
$96.58¢48 288
#006
COLLAR, Rear WHEEL SIDE
$41.19¢20 594
#007
COLLAR, RR. BRAKE SIDE
$33.20¢16 600
#008
RING, Rear PULSER
$51.15¢25 575
#009
CLIP, CONNECTOR (DARK BLUE)
$3.75¢1 875
#010
FLANGE SUB-ASSY., RR. DRIVEN
$270.60¢135 300
#011
COLLAR, Rear AXLE DISTANCE
$55.90¢27 950
#012
COLLAR B, RR. WHEEL DISTANCE
$31.74¢15 869
#013
WHEEL SUB-Assembly., Rear. (TYPE2)
$1391.99¢695 994
#014
TIRE, RR. (200/55ZR17 M/C 78W)(PIR)
$483.81¢241 906
#014
TIRE, RR. (200/55ZR17 M/C 78W)(BS)
$347.55¢173 775
#014
TIRE, Rear. (200/55ZR17 M/C 78W)(PIRELLI)
$483.81¢241 906
#015
VALVE ASSY., CLAMP IN
$19.25¢9 625
#016
O-RING
$1.96¢981
#017
DISK, Rear BRAKE
$331.41¢165 706
#018
WEIGHT, BALANCE (10G)
$3.91¢1 956
#018
WEIGHT, BALANCE (15G)
$4.68¢2 338
#018
WEIGHT, BALANCE (20G)
$5.22¢2 613
#019
BOLT, DISK (8X25)
$3.98¢1 988
#020
BOLT, FLANGE (6X14)
$2.97¢1 487
#021
BOLT (10X28.5)
$4.96¢2 481
#022
NUT, U (10MM)
$5.25¢2 625
#023
NUT, U FLANGE (24MM)
$27.41¢13 706
#024
WASHER (24.1X43X2.5)
$7.31¢3 656
#025
WASHER (10MM)
$3.61¢1 806
#026
CLIP, CABLE (12MM)
$2.88¢1 438
#027
BEARING, ANGULAR BALL (31X63X16) (FUJIKOSHI)
$72.69¢36 344
#028
BEARING, RADIAL BALL (60/28)
$21.72¢10 862
#029
DUST SEAL (40X63X7) (NOK)
$20.39¢10 194
#030
DUST SEAL (36X52X7) (NOK)
$12.69¢6 344
#031
O-RING (57X2) (ARAI)
$6.34¢3 169
