SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

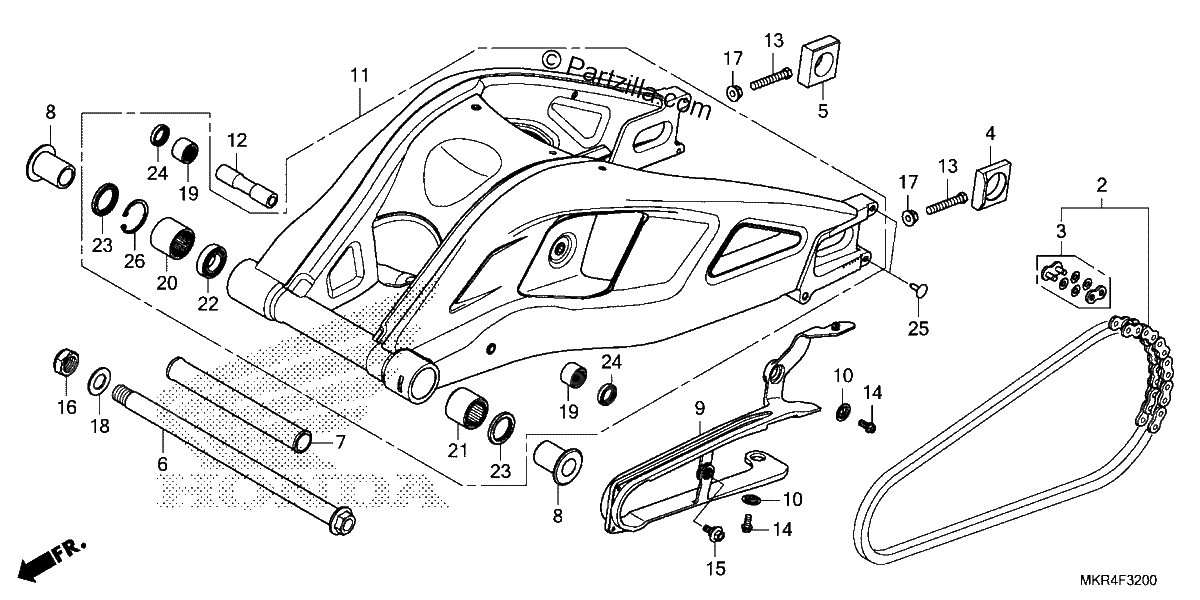

Diagrama de SWINGARM

Repuestos

#002
40530-MKR-A31
CHAIN, DRIVE (DID525HV3KAI-120ZH) (DAIDO)
$286.66¢143 331
1
#002
40530-MKR-A32
CHAIN, DRIVE (RK525ROZ8-120LJFZ) (RK JAPAN) (NA USE ALT: 40530-MKR-A31)
No Disponible
1
#003
40535-MKR-D11
MASTER LINK (DAIDO)
$14.94¢7 469
1
#003
40535-MKR-D12
MASTER LINK (RK JAPAN)
$14.30¢7 150
1
#004
42305-MKF-D40
COLLAR, L. RR. AXLE
$44.52¢22 263
1
#005
42306-MKF-D40
COLLAR, R. RR. AXLE
$36.45¢18 225
1
#006
52101-MKR-D10
BOLT, SWINGARM PIVOT
$81.66¢40 831
1
#007
52141-MKR-D10
COLLAR, CENTER PIVOT DISTANCE
$35.67¢17 838
1
#008
52142-MKR-D10
COLLAR, PIVOT DISTANCE
$39.63¢19 813
1
#009
52170-MKR-D10
SLIDER, CHAIN
$74.20¢37 100
1
#010
52171-MFJ-D00
WASHER, CHAIN SLIDER
$2.85¢1 425
1
#011
52200-MKR-D10
SWINGARM SUB-Assembly., Rear.
No Disponible
1
#011
52200-MKR-D11
SWINGARM SUB-Assembly., Rear.
$3090.92¢1 545 462
1
#012
52462-MKR-D10
COLLAR A, CUSHION ARM
$16.05¢8 025
1
#013
90107-MFL-D20
BOLT, HEX. (8X50)
$3.71¢1 856
1
#014
90117-MKS-E00
BOLT, FLANGE (6X14)
$2.97¢1 487
1
#015
90130-MCJ-750
BOLT, CHAIN SLIDER
$3.71¢1 856
1
#016
90306-MCS-G01
NUT, U (18MM)
$8.26¢4 131
1
#017
90309-357-000
NUT, HEX. (8MM)
$4.13¢2 063
1
#018
90401-KZ4-890
WASHER (18X32X2)
$5.42¢2 713
1
#019
91071-K64-N01
BEARING, NEEDLE (17X24X17) (SCHAEFFLER)
$17.02¢8 513
1
#020
91071-MBW-E11
BEARING, NEEDLE
$19.98¢9 988
1
#021
91071-MR7-003
BEARING, NEEDLE
$29.82¢14 913
1
#022
91072-MR7-003
BEARING, RADIAL BALL (20X37X9)
$21.06¢10 531
1
#023
91202-MR7-003
DUST SEAL (28X37X4)
$7.70¢3 850
1
#024
91262-KV3-831
DUST SEAL (17X24X5) (ARAI)
$7.51¢3 756
1
#025
91540-MEC-000
CLIP, BRUSH
$4.69¢2 344
1
#026
94520-37000
CIRCLIP, INNER (37MM)
$2.81¢1 406
1
