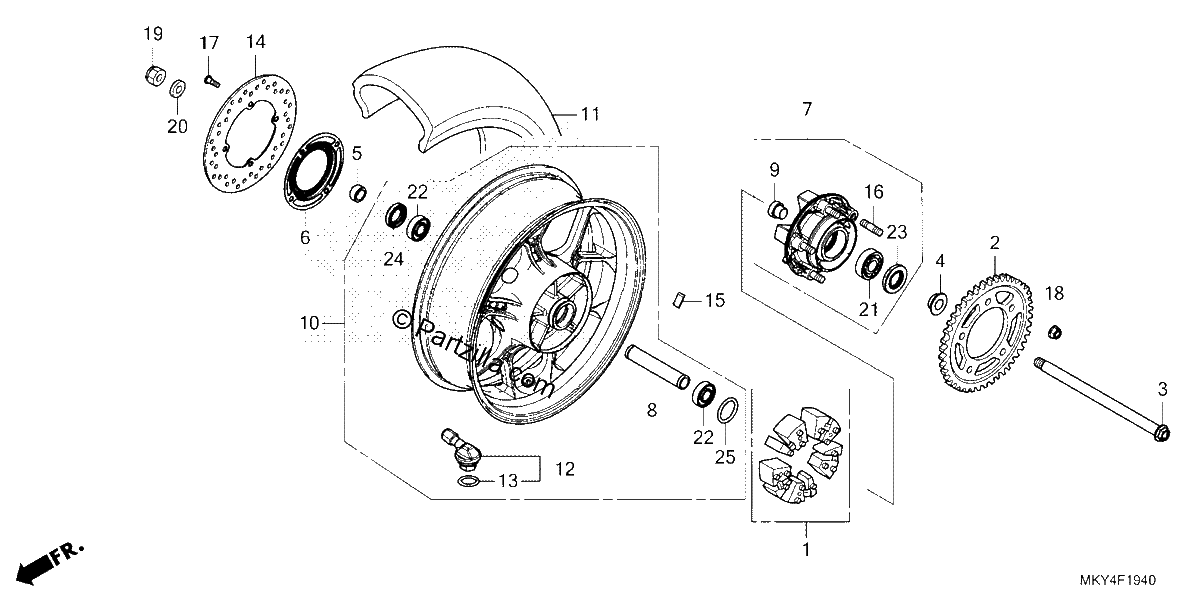

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$67.19¢33 594
#002
SPROCKET, FINAL DRIVEN (42T)
$69.99¢34 994
#002
SPROCKET, FINAL DRIVEN (42T)
$69.99¢34 994
#003
AXLE, Rear WHEEL
$33.79¢16 894
#004
COLLAR, L. RR. WHEEL SIDE
$24.04¢12 019
#005
COLLAR, Rear BRAKE SIDE
$14.04¢7 019
#006
RING, RR. PULSER
$61.60¢30 800
#007
FLANGE SUB-Assembly., Rear DRIVEN
$170.67¢85 337
#008
COLLAR, Rear AXLE DISTANCE
$26.35¢13 175
#009
COLLAR B, RR. WHEEL DISTANCE
$23.98¢11 988
#010
WHEEL SUB-ASSY., RR. (TYPE1) (WOL)
$500.49¢250 244
#011
TIRE, Rear. (180/55ZR17) (M/C 73W) (DUNLOP)
$167.65¢83 825
#012
VALVE ASSY., CLAMP IN
$19.25¢9 625
#013
O-RING
$1.96¢981
#014
DISK, Rear BRAKE
$98.79¢49 394
#015
WEIGHT, BALANCE (10G)
$3.91¢1 956
#015
WEIGHT, BALANCE (15G)
$4.68¢2 338
#015
WEIGHT, BALANCE (20G)
$5.22¢2 613
#016
BOLT, STUD (12X25)
$4.86¢2 431
#017
BOLT, DISK (8X25)
$3.65¢1 825
#018
NUT, U (12MM) (FUJI SEIMITSU)
$3.30¢1 650
#019
NUT, U (18MM)
$10.64¢5 319
#020
WASHER (18X32X2)
$5.42¢2 713
#021
BEARING, RADIAL BALL (6322)
$46.48¢23 238
#022
BEARING, RADIAL BALL (6204UU) (NSK)
$17.75¢8 875
#023
DUST SEAL (30X56X7.5)
$14.07¢7 038
#024
DUST SEAL (30X47X7.5)
$18.51¢9 256
#025
O-RING (55X2)
$3.65¢1 825
