HEADLIGHT

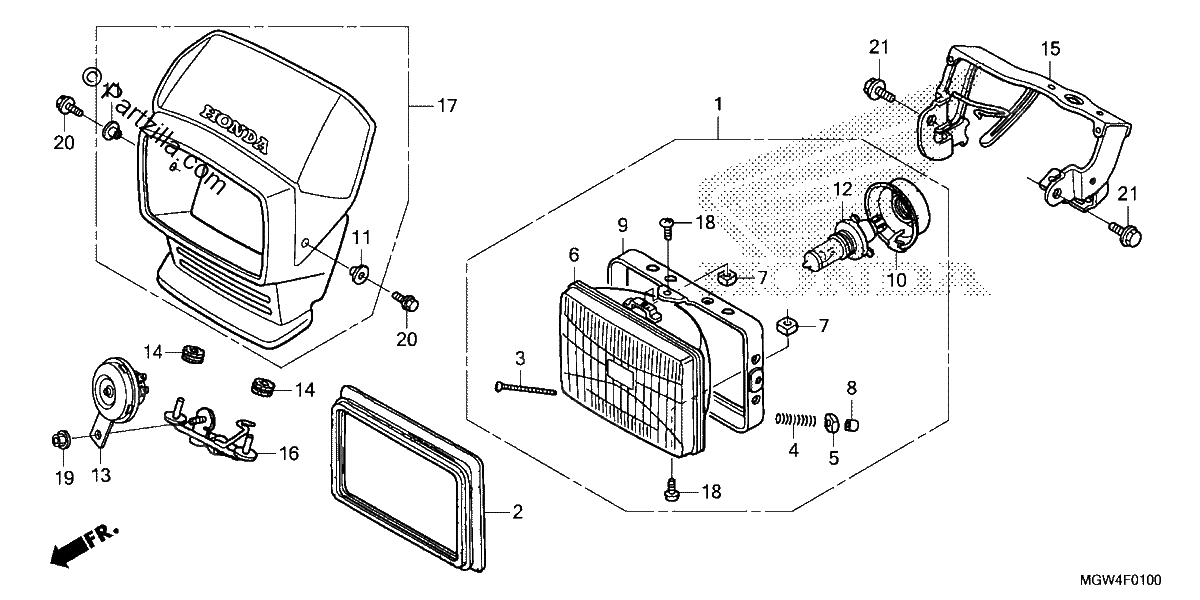

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
HEADLIGHT ASSY. (12V 60/55W)
$228.38¢114 188
#001
HEADLIGHT Assembly. (12V 60/55W) (COO)
$228.38¢114 188
#002
GASKET, HEADLIGHT
$34.05¢17 025
#003
SCREW, BEAM ADJUSTING
$6.72¢3 363
#004
SPRING, HEADLIGHT BEAM ADJUSTING
$3.65¢1 825
#005
NUT, BEAM ADJUSTING (STANLEY)
$2.88¢1 438
#006
HEADLIGHT UNIT
$81.59¢40 794
#006
HEADLIGHT UNIT (COO)
$81.59¢40 794
#007
NUT, UNIT HOLDER
$1.99¢994
#008
COVER, SCREW
$2.41¢1 206
#009
RING, MOUNTING
$51.56¢25 781
#010
COVER, RUBBER
$15.38¢7 688
#011
COLLAR A, TAILLIGHT
$3.69¢1 844
#012
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
$43.17¢21 588
#013
HORN Assembly. (HIGH)
$44.91¢22 456
#014
GROMMET, IGNITION COVER
$2.91¢1 456
#015
BRACKET, HEADLIGHT
$197.64¢98 819
#016
STAY, Front VISOR (LOWER)
$33.27¢16 638
#017
VISOR SET, FR. *NH196* (WL) (ROSS WHITE)
$109.43¢54 713
#018
SCREW, PAN (5X10)
$1.16¢581
#019
NUT, FLANGE (8MM)
$1.93¢963
#020
BOLT, FLANGE (6X14)
$1.21¢606
#021
BOLT, FLANGE (8X12)
$3.65¢1 825
