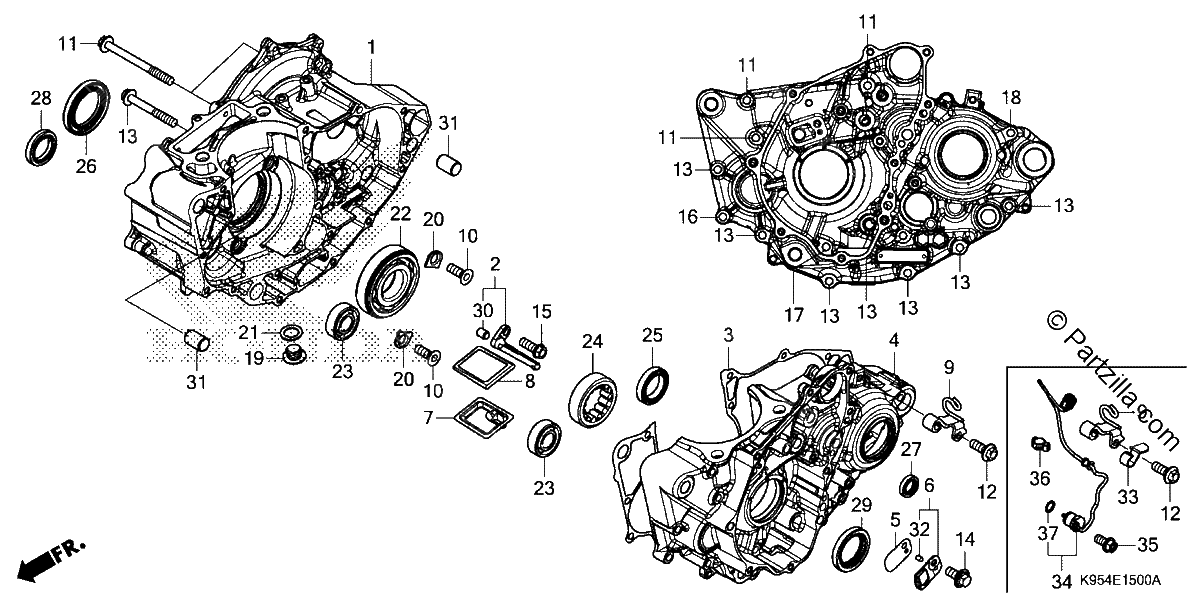

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CRANKCASE, R.
$497.12¢248 561
#002
JET, PISTON
$58.48¢29 239
#003
GASKET, CRANKCASE
$29.72¢14 858
#004
CRANKCASE, Left
$491.56¢245 778
#005
VALVE, REED
$8.68¢4 341
#006
STOPPER, REED VALVE
$31.79¢15 893
#007
STRAINER, OIL
$21.06¢10 528
#008
SCREEN, OIL FILTER
$15.18¢7 590
#009
RECEIVER, CLUTCH CABLE
$12.65¢6 325
#010
SCREW, SPECIAL FLAT (6X17)
$2.13¢1 064
#011
BOLT, FLANGE (6X65)
$3.98¢1 989
#012
BOLT, FLANGE (6X16)
$2.68¢1 340
#013
BOLT, FLANGE (6X45)
$3.36¢1 679
#014
BOLT-WASHER (6X14)
$2.81¢1 403
#015
BOLT, FLANGE (6X16)
$2.68¢1 340
#016
BOLT, FLANGE (6X28)
$2.75¢1 374
#017
BOLT, FLANGE (6X50)
$3.43¢1 713
#018
BOLT, FLANGE (6X75)
$3.36¢1 679
#019
CAP (14MM)
$13.68¢6 842
#020
PLATE, BEARING HOLDER
$4.01¢2 007
#021
WASHER, SEALING (14MM)
$3.63¢1 817
#022
BEARING, RADIAL BALL (30X72X16)
$42.16¢21 079
#023
BEARING, RADIAL BALL SPECIAL (6202)
$11.94¢5 969
#024
BEARING, SPECIAL ROLLER
$52.06¢26 030
#025
BEARING, RADIAL BALL (6805)
$11.70¢5 848
#026
OIL SEAL (39X56X7.5)
$18.54¢9 269
#027
OIL SEAL (14X22X5) (NOK)
$4.25¢2 128
#028
OIL SEAL (24X36X7)
$8.51¢4 255
#029
OIL SEAL (31X45X7)
$9.59¢4 796
#030
PIN, DOWEL (8X10)
$2.66¢1 328
#031
PIN, DOWEL (14X20)
$2.70¢1 351
#032
PIN C, DOWEL (4X6.5)
$2.53¢1 265
#033
STAY, CHANGE SWITCH WIRE
$4.22¢2 110
#034
SWITCH ASSY., CHANGE
$122.88¢61 439
#035
BOLT, FLANGE (6X12)
$2.54¢1 271
#036
CLIP, CABLE (10MM)
$2.62¢1 311
#037
O-RING (16.5X2.5)
$2.32¢1 162
