REAR FENDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

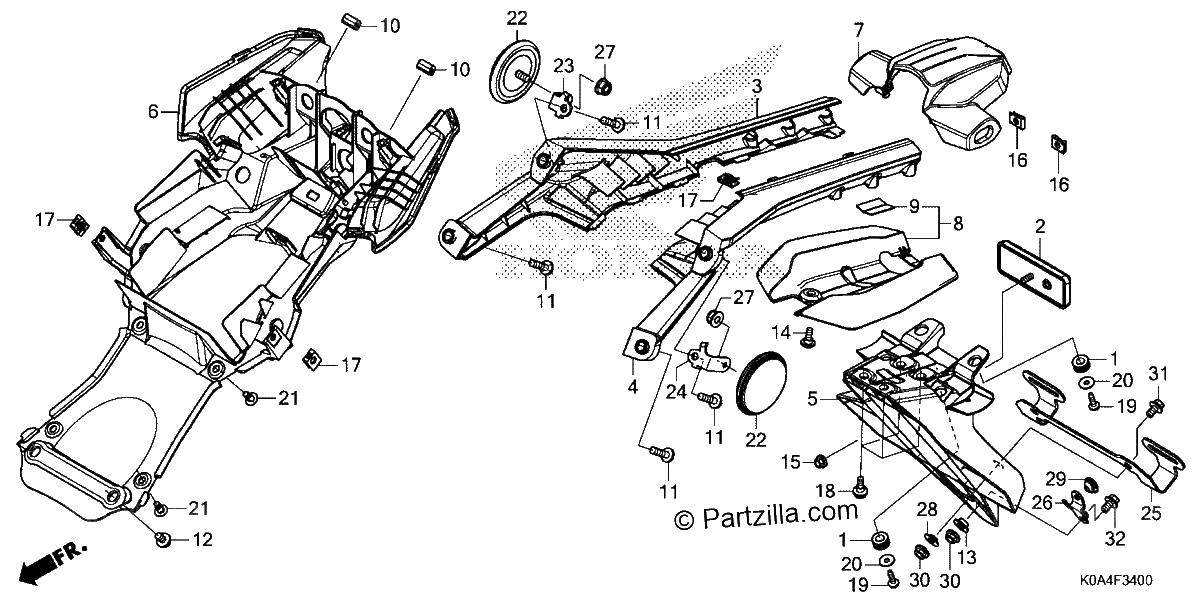

Diagrama de REAR FENDER 1

Repuestos

#001
19639-GBL-000
RUBBER, MOUNTING
$1.38¢688
1
#002
33741-KWN-901
REFLECTOR, REFLEX
$12.76¢6 381
1
#003
80111-K94-T00
STAY, R. RR. FENDER
$112.05¢56 025
1
#004
80112-K94-T00
STAY, L. RR. FENDER
$114.24¢57 119
1
#005
80121-K94-T00
FENDER A, RR.
$14.94¢7 469
1
#006
80131-K0A-E10
FENDER B, RR.
$56.16¢28 081
1
#007
80141-K94-T00
COVER, LICENSE LIGHT
$11.41¢5 706
1
#008
80150-K0A-E10
COVER SET, RR. FENDER (LOWER)
$19.29¢9 644
1
#009
80152-K0A-E10
RUBBER, CUSHION
$3.26¢1 631
1
#010
83515-KPH-700
RUBBER, TAIL COVER
$1.95¢975
1
#011
90120-K26-900
BOLT, SPECIAL (6X25)
$1.19¢594
1
#012
90132-KPP-T00
SCREW, PAN (6X10)
$1.11¢556
1
#014
90134-KPP-T00
SCREW, PAN (5X14)
$1.23¢613
1
#015
90301-KWN-901
NUT, U (5MM)
$0.86¢431
1
#016
90302-SA4-003
NUT, SPRING (4MM)
$6.40¢3 200
1
#017
90677-KAN-T00
NUT, CLIP (5MM)
$0.83¢413
1
#018
91509-KWA-940
SCREW, PAN (5X13.5)
$1.72¢862
1
#019
93903-24480
SCREW, TAPPING (4X16)
$1.16¢581
1
#020
94103-04700
WASHER, PLAIN (4MM)
$1.21¢606
1
#021
90116-K0A-E11
RIVET, PUSH (6MM)
$1.66¢831
1
#022
33741-HB9-641
REFLECTOR, Rear REFLEX (RED)
$15.50¢7 750
1
#023
80101-K0A-A00
STAY, R. REFLECTOR
$19.26¢9 631
1
#024
80102-K0A-A00
STAY, L. REFLECTOR
$19.26¢9 631
1
#027
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
1
