CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

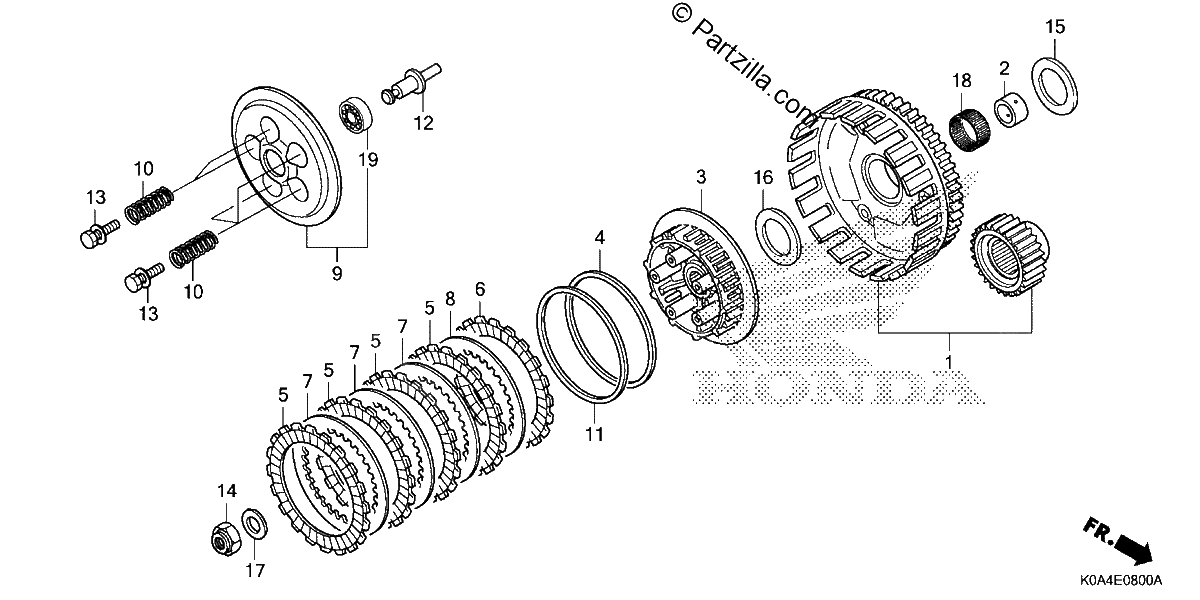

Diagrama de CLUTCH

Repuestos

#001
23121-K33-305
GEAR SET, PRIMARY DRIVEN
$309.44¢154 721
1
#002
22116-K33-D00
GUIDE A, CLUTCH (OUTER) (WHITE)
$7.99¢3 996
1
#002
22117-K33-D00
GUIDE B, CLUTCH (OUTER) (BLUE)
$7.99¢3 996
1
#003
22121-KZZ-901
CENTER, CLUTCH
$48.79¢24 397
1
#004
22125-KZZ-901
SEAT, JUDDER SPRING
$17.99¢8 993
1
#005
22201-MGZ-J01
DISK, CLUTCH FRICTION
$18.08¢9 039
1
#006
22202-KZZ-901
DISK B, CLUTCH FRICTION
$20.29¢10 143
1
#007
22321-KYJ-902
PLATE, CLUTCH
$7.76¢3 881
1
#008
22322-KZZ-901
PLATE B, CLUTCH
$9.20¢4 600
1
#009
22350-KYJ-902
PLATE, CLUTCH PRESSURE
$42.70¢21 350
1
#010
22401-K33-D01
SPRING, CLUTCH
$6.38¢3 191
1
#011
22402-KZZ-902
SPRING, JUDDER
$19.76¢9 878
1
#012
22847-KZZ-900
PIN, CLUTCH LIFTER
$9.58¢4 790
1
#013
90050-KYJ-902
BOLT (6X1.0)
$1.15¢575
1
#014
90201-KYJ-900
NUT, SPECIAL (16MM)
$3.98¢1 989
1
#015
90404-KVK-900
WASHER (20X40X2)
$3.36¢1 679
1
#016
90404-KYJ-902
WASHER (20X40X2)
$3.32¢1 662
1
#017
90434-KPS-900
WASHER (16MM)
$2.36¢1 179
1
#018
91012-KYJ-901
BEARING, NEEDLE (28X33X16.8)
$7.05¢3 525
1
#019
96100-60010-00
BEARING, RADIAL BALL (6001)
$23.86¢11 931
1
