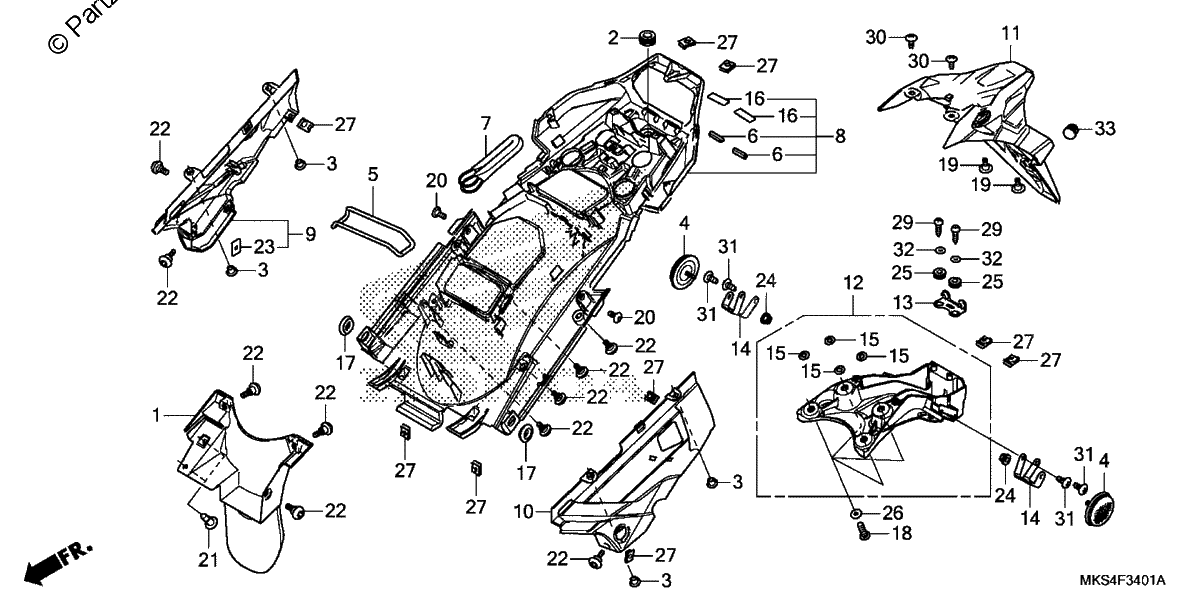

REAR FENDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SPLASH GUARD
$67.49¢33 747
#002
RUBBER, MOUNTING
$1.66¢828
#003
COLLAR, TAILLIGHT
$3.36¢1 679
#004
REFLECTOR, Rear REFLEX (RED)
$14.26¢7 130
#005
BAND, U-LOCK
$5.78¢2 892
#006
PROTECTOR, RUBBER
$2.06¢1 029
#007
WIRE, HELMET SET
$9.45¢4 727
#008
FENDER B, RR.
$128.09¢64 043
#009
COVER, R. FENDER B
$29.05¢14 525
#010
COVER, L. FENDER B
$28.63¢14 317
#011
FENDER A, RR.
$82.89¢41 446
#012
STAY, FENDER A
$110.87¢55 436
#013
BRACKET, LICENSE LIGHT
$8.58¢4 289
#014
STAY, RR. REFLECTOR
$14.56¢7 280
#015
COLLAR, FENDER
$4.62¢2 311
#016
RUBBER, RR. FRAME
$1.70¢851
#017
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
#018
BOLT, FLANGE (6X20)
$2.75¢1 374
#019
SCREW, SPECIAL (5X14)
$2.42¢1 208
#020
SCREW, SPECIAL (6X14)
$1.26¢633
#021
CLIP, BUMPER SEAL
$5.27¢2 633
#022
SCREW, SPECIAL (5X11)
$2.94¢1 472
#023
NUT, SPECIAL (6X7)
$4.28¢2 139
#024
NUT U, FLANGE (6MM)
$3.13¢1 564
#025
GROMMET A, AIR CLEANER HOUSING
$3.42¢1 708
#026
WASHER B, HANDLE HOLDER SETTING
$2.17¢1 087
#027
NUT, CLIP (5MM)
$4.54¢2 271
#029
SCREW, TAPPING (4X16)
$1.07¢535
#030
SCREW, TAPPING (5X12)
$1.53¢765
#031
SCREW, TAPPING (5X12)
$0.98¢489
#032
WASHER, PLAIN (4MM)
$1.12¢558
#033
PLUG, HANDLE COVER (LOWER)
$2.20¢1 098
