FRONT FORK 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

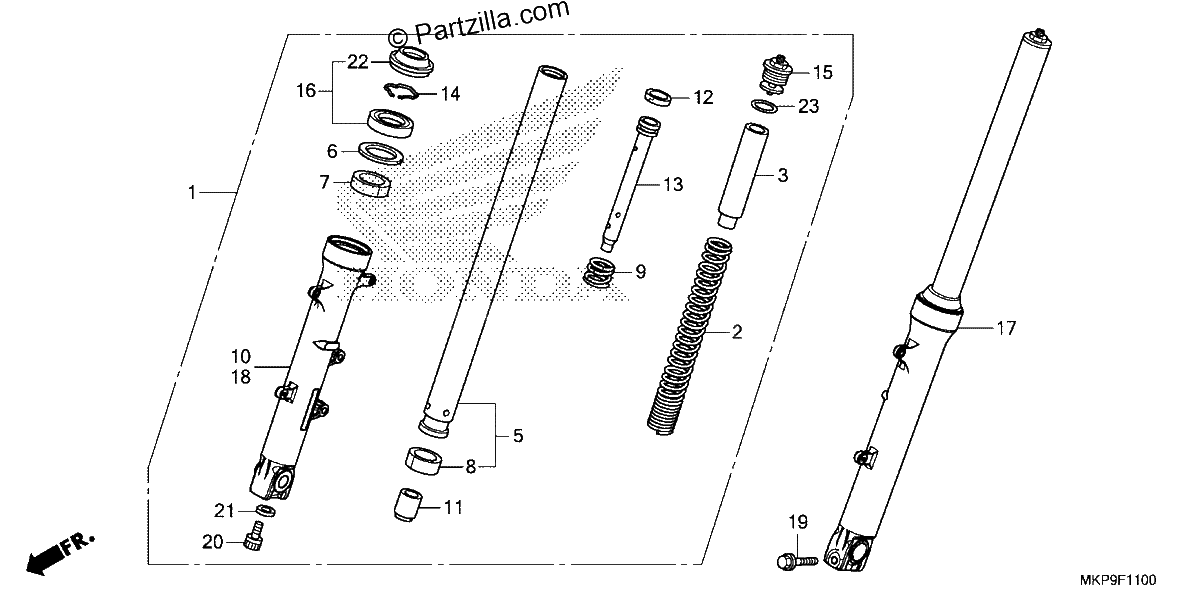

Diagrama de FRONT FORK 1

Repuestos

#001
51400-MKP-J41
FORK ASSY., R. FR. (SHOWA)
$508.49¢254 244
1
#002
51401-MKP-J01
SPRING, FR. FORK
$54.49¢27 244
1
#003
51402-MGZ-J01
COLLAR, SPRING
$20.74¢10 369
1
#005
51410-MKP-J41
PIPE, FR. FORK
$221.96¢110 981
1
#006
51412-MB4-003
RING, BACK-UP (SHOWA)
$11.29¢5 644
1
#007
51414-MFJ-A51
BUSH, GUIDE
$8.80¢4 400
1
#008
51415-MFJ-A51
BUSH, SLIDER
$8.80¢4 400
1
#009
51416-KF0-003
SPRING, FR. REBOUND (SHOWA)
$9.36¢4 681
1
#010
51420-MGZ-J01
CASE, Right. (LOWER)
$103.44¢51 719
1
#011
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$28.82¢14 413
1
#012
51437-KV3-701
RING, PISTON
$8.73¢4 363
1
#013
51440-MKP-J01
PIPE, SEAT
$12.05¢6 025
1
#014
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#015
51450-MKP-J01
BOLT ASSY., FR. FORK
$88.01¢44 006
1
#016
51490-MKL-D81
SEAL SET, FR. FORK
$29.18¢14 588
1
#017
51500-MKP-J41
FORK ASSY., L. FR. (SHOWA)
$500.74¢250 369
1
#018
51520-MGZ-J01
CASE, Left (LOWER)
$95.06¢47 531
1
#019
90109-MR7-000
BOLT, FLANGE (8X45)
$5.99¢2 994
1
#020
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
1
#021
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
1
#022
91251-MKL-D81
DUST SEAL
$12.39¢6 194
1
#023
91356-KF0-003
O-RING (33.2X2.4)
$4.56¢2 281
1
