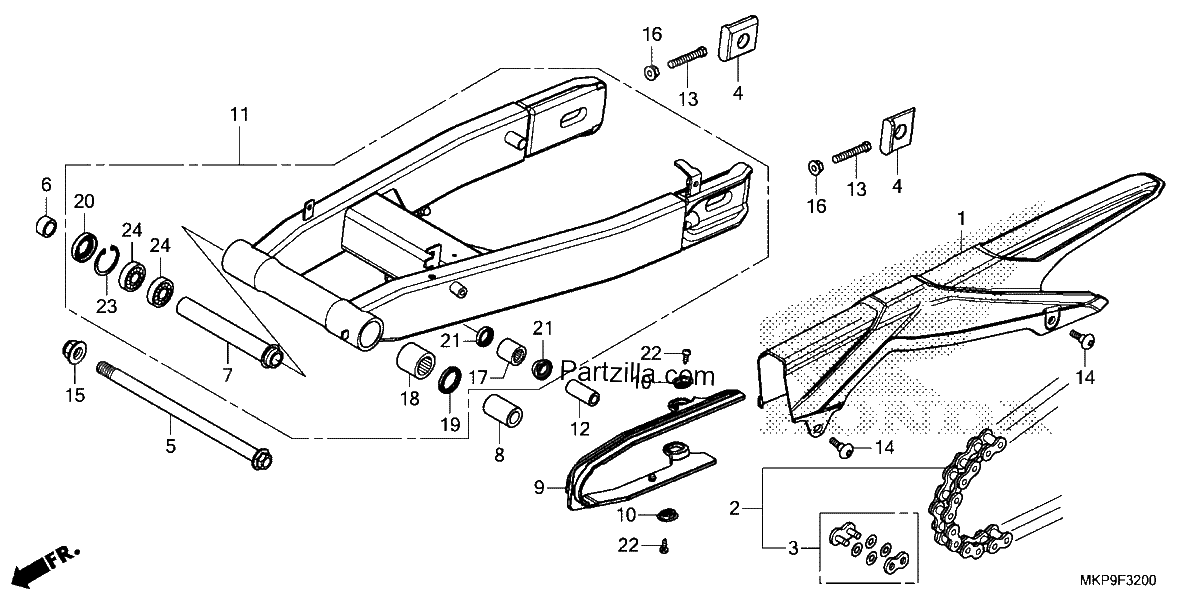

SWINGARM 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CASE, DRIVE CHAIN
$28.57¢14 283
#002
CHAIN, DRIVE (RK520KLO2-120LJFZ) (RK) (STANDARD LINK 112L)
$99.60¢49 801
#002
CHAIN, DRIVE (DID520VF-120ZB) (DAIDO)
$148.00¢74 002
#003
MASTER LINK (RK)
$23.06¢11 529
#003
MASTER LINK (DAIDO)
$15.55¢7 774
#004
COLLAR, RR. AXLE
$27.52¢13 760
#005
BOLT, SWINGARM PIVOT
$19.72¢9 861
#006
COLLAR B, SWINGARM PIVOT
$6.66¢3 329
#007
COLLAR, CENTER PIVOT DISTANCE
$22.08¢11 040
#008
COLLAR, L PIVOT DISTANCE
$19.00¢9 499
#009
SLIDER, CHAIN
$14.82¢7 412
#010
WASHER, CHAIN SLIDER
$3.06¢1 529
#011
SWINGARM SUB-ASSY., RR.
$375.11¢187 554
#012
COLLAR, CUSHION CONNECTING ROD
$6.13¢3 065
#013
BOLT, HEX. (8X50)
$2.86¢1 432
#014
SCREW, SPECIAL (6X14)
$1.26¢633
#015
NUT, U (14MM) (FUJI SEIMITSU)
$6.96¢3 479
#016
NUT, HEX. (8MM)
$3.79¢1 897
#017
BEARING, NEEDLE (KOYO)
$26.59¢13 294
#018
BEARING, NEEDLE (NTN)
$28.69¢14 346
#019
DUST SEAL (25X33X4)
$7.76¢3 881
#020
DUST SEAL (22X35X7) (ARAI)
$8.31¢4 157
#020
DUST SEAL (22X35X7) (NOK)
$8.31¢4 157
#021
DUST SEAL (17X24X5) (ARAI)
$6.91¢3 456
#022
SCREW, TAPPING (5X12)
$1.07¢535
#023
CIRCLIP, INNER (35MM)
$2.30¢1 150
#024
BEARING, RADIAL BALL (6202)
$15.59¢7 797
