CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

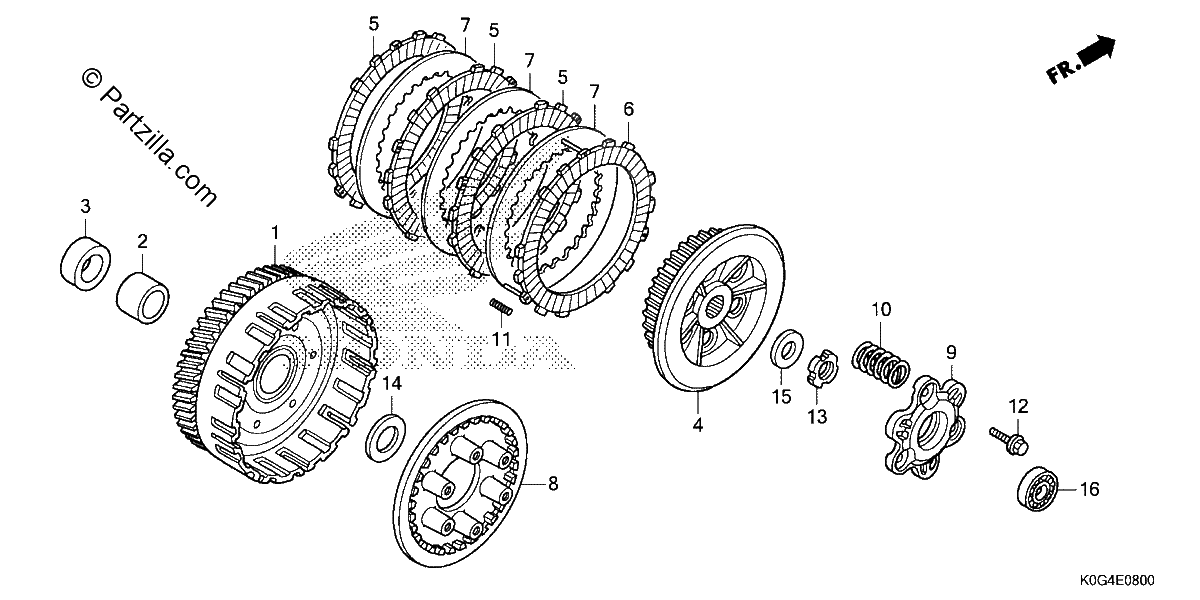

Diagrama de CLUTCH

Repuestos

#001
22100-K0G-901
CLUTCH OUTER (74T)
$253.32¢126 661
1
#002
22115-KPH-900
GUIDE, CLUTCH (OUTER)
$2.28¢1 138
1
#003
22116-KPH-900
COLLAR, CLUTCH (OUTER)
$2.59¢1 294
1
#004
22121-KPH-900
CENTER, CLUTCH
$21.36¢10 678
1
#005
22201-KYZ-901
DISK, CLUTCH FRICTION
$7.05¢3 525
1
#006
22208-KYZ-901
DISK, CLUTCH FRICTION
$9.76¢4 882
1
#007
22321-KE8-000
PLATE, CLUTCH
$13.67¢6 837
1
#008
22350-KPH-900
PLATE, CLUTCH PRESSURE
$20.75¢10 373
1
#009
22361-KTM-950
PLATE, CLUTCH LIFTER
$11.14¢5 572
1
#010
22401-KYZ-901
SPRING, CLUTCH
$1.59¢793
1
#011
22402-KYZ-901
SPRING, DRAG
$2.54¢1 271
1
#012
90050-KPH-900
BOLT, SPECIAL FLANGE (6X20)
$1.21¢604
1
#013
90231-KM7-700
NUT, LOCK (14MM)
$4.22¢2 110
1
#013
90231-KM7-701
NUT, LOCK (14MM)
$4.22¢2 110
1
#014
90403-KPH-900
WASHER, THRUST (17MM)
$1.23¢615
1
#015
90432-KPT-A00
WASHER (14.2X26X3)
$2.13¢1 064
1
#016
91008-KK6-000
BEARING, RADIAL BALL (16003)
$16.57¢8 286
1
#016
91010-HC0-003
BEARING, RADIAL BALL (16003)
$16.57¢8 286
1
#016
91011-KK6-013
BEARING, RADIAL BALL (16003)
$16.57¢8 286
1
