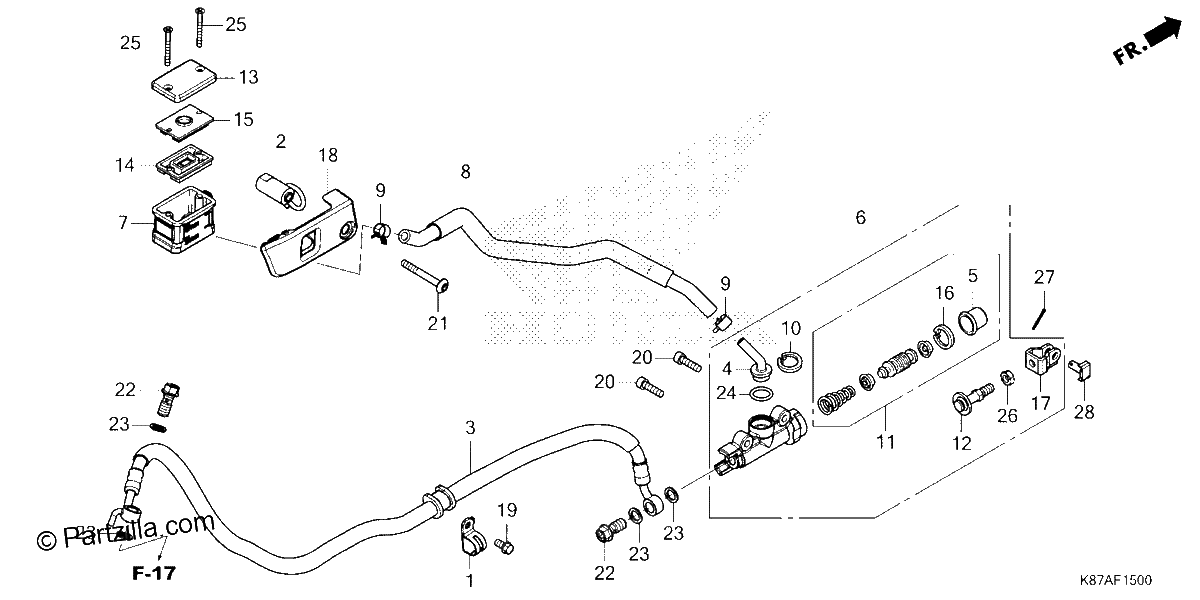

REAR BRAKE MASTER CYLINDER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP, BRAKE HOSE
$4.81¢2 403
#002
COLLAR, OIL CUP
$8.08¢4 042
#003
HOSE, Rear BRAKE
$37.42¢18 711
#004
CONNECTOR
$13.18¢6 590
#005
BOOT
$10.80¢5 399
#006
MASTER CYLINDER SUB-ASSY., RR.(NISSIN)
$131.93¢65 964
#007
CUP, OIL
$25.32¢12 661
#008
HOSE, RR. MASTER CYLINDER
$20.46¢10 229
#009
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#010
CIRCLIP, Rear MASTER CYLINDER
$4.25¢2 128
#011
PISTON SET, MASTER CYLINDER (NISSIN)
$48.82¢24 409
#012
ROD, PUSH
$13.44¢6 722
#013
CAP, MASTER CYLINDER (COO)
$4.63¢2 317
#013
CAP, MASTER CYLINDER
$4.63¢2 317
#014
DIAPHRAGM
$11.33¢5 664
#015
PLATE, DIAPHRAGM
$11.59¢5 796
#016
CIRCLIP
$2.30¢1 150
#017
JOINT, BRAKE ROD
$8.74¢4 370
#018
COVER, OIL CUP
$4.60¢2 300
#019
BOLT, FLANGE (6X12)
$2.75¢1 374
#020
BOLT, SOCKET (6X22)
$1.17¢586
#021
BOLT, SOCKET SPECIAL (6X50)
$0.68¢339
#022
BOLT, OIL (10X22)
$8.18¢4 088
#023
WASHER, OIL BOLT
$4.46¢2 231
#024
O-RING (14.8X2.4)
$3.04¢1 518
#025
SCREW, FLAT (4X40)
$0.56¢282
#026
NUT, HEX. (8MM)
$1.47¢736
#027
PIN, SPLIT (2.0X15)
$1.23¢615
#028
PIN D, JOINT
$4.74¢2 369
