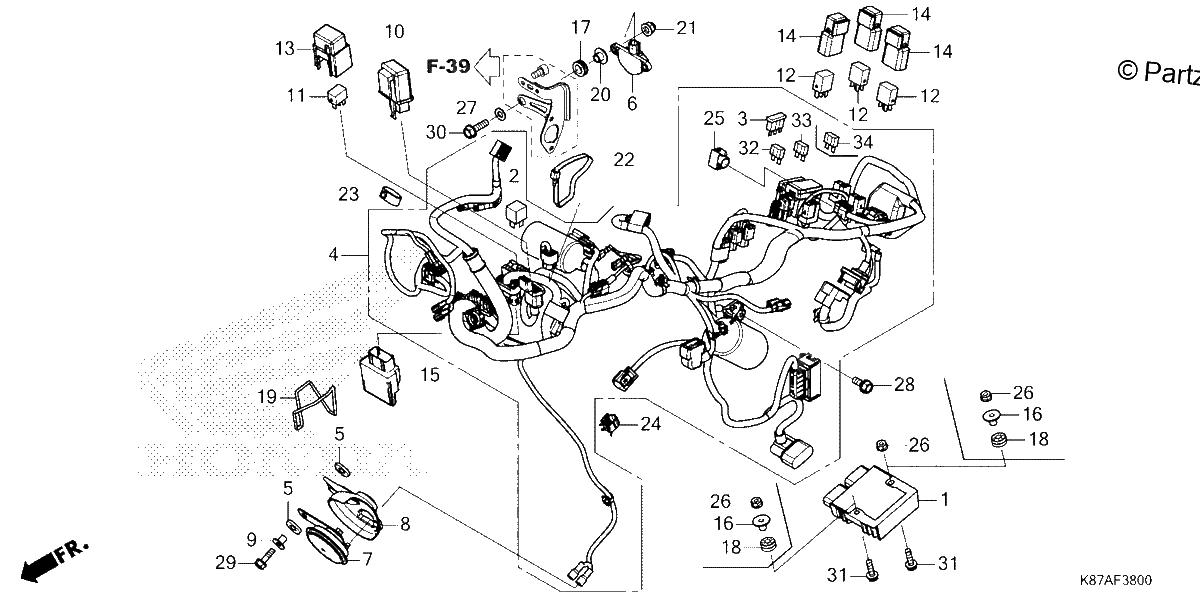

WIRE HARNESS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RECTIFIER, REGULATOR
$447.76¢223 882
#002
RECTIFIER, SILICON
$28.21¢14 105
#003
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
#004
WIRE HARNESS
$1105.23¢552 615
#005
RUBBER, TAILLIGHT BRACKET
$2.98¢1 489
#006
SENSOR ASSY., BANK ANGLE (M6)
$128.48¢64 239
#007
HORN (HIGH)
$28.19¢14 093
#008
HEAT GUARD, HORN
$4.96¢2 478
#009
COLLAR, HORN SETTING
$2.06¢1 029
#010
RELAY, TURN SIGNAL (LED)
$67.38¢33 689
#011
RELAY Assembly., POWER (MICRO ISO 4P) (MITSUBA)
$11.48¢5 739
#012
RELAY, POWER (MICRO ISO 4P)
$11.58¢5 790
#013
COVER, RELAY (2P)
$4.28¢2 139
#014
SUSPENSION, POWER RELAY
$7.28¢3 640
#015
PGM-FI UNIT
$213.05¢106 524
#016
COLLAR
$1.79¢897
#017
RUBBER, SIDE COVER
$2.30¢1 150
#018
RUBBER B, SEAT MOUNTING
$3.66¢1 829
#019
BAND, TOOL
$3.79¢1 897
#020
COLLAR, BANK ANGLE SENSOR
$2.71¢1 357
#021
NUT, CAP (6MM)
$3.36¢1 679
#022
BAND, WIRE HARNESS
$29.19¢14 593
#023
BAND, RUBBER (50)
$3.47¢1 737
#024
CLIP, CABLE (8MM)
$2.59¢1 294
#025
CONNECTOR, DUMMY (6P 025M)
$10.09¢5 043
#026
NUT, FLANGE (6MM)
$1.71¢857
#027
WASHER, PLAIN (6MM)
$0.77¢385
#028
BOLT, FLANGE (6X14)
$1.92¢960
#029
BOLT, FLANGE (6X20)
$1.92¢960
#030
BOLT, FLANGE (6X20)
$0.44¢218
#031
BOLT, FLANGE (6X35)
$2.22¢1 110
#032
FUSE, MINI (7.5A)
$1.44¢719
#033
FUSE, MINI (15A)
$1.37¢684
