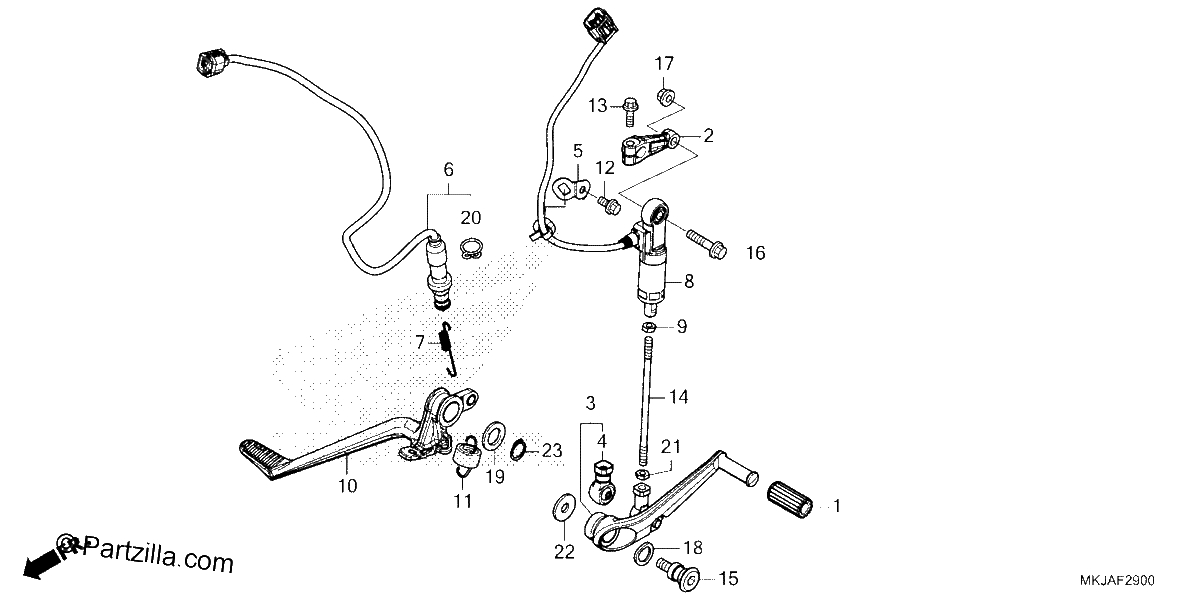

PEDAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

Repuestos

#001

24705-MR7-000

RUBBER, GEARSHIFT PEDAL

$4.20¢2 099

#002

24711-MKF-D60

ARM, GEARSHIFT

$38.92¢19 458

#003

24720-MKJ-E60

PEDAL, GEARSHIFT

$117.98¢58 989

#004

24724-MBW-D21

COVER, DUST

$7.77¢3 887

#005

32214-MKJ-D10

STAY, STROKE SENSOR

$4.25¢2 128

#006

35350-MKJ-E51

SWITCH Assembly., Rear STOP

$40.02¢20 010

#007

35357-MCH-000

SPRING, STOP SWITCH

$3.36¢1 679

#008

36390-MKJ-E61

SENSOR ASSY., STROKE

$1398.66¢699 332

#009

45423-KA4-700

NUT, HEX. (6MM) (LEFT HAND THREAD)

$1.83¢914

#010

46500-MKJ-E60

PEDAL, Rear BRAKE

$162.47¢81 236

#011

46515-MKJ-E50

SPRING ASSY., BRAKE PEDAL

$9.46¢4 732

#012

90026-GHB-620

BOLT, FLANGE (6X12) (S-NSHF)

$2.22¢1 110

#013

90030-GHB-660

BOLT, FLANGE (6X20)

$2.59¢1 294

#014

90065-ML0-900

BOLT, TIE ROD (NOT AVAILABLE)

$14.33¢7 165

#015

90113-MCF-000

BOLT, CHANGE PIVOT

$8.88¢4 439

#016

90115-MKF-D60

BOLT, FLANGE (7X30)

$3.71¢1 857

#017

90202-KV3-000

NUT, FLANGE (7MM)

$2.51¢1 254

#018

90505-MBW-000

WASHER, CHANGE PEDAL WAVE

$4.48¢2 242

#019

90557-230-000

WASHER (15.2X25)

$2.83¢1 414

#020

90601-KAF-003

CLIP, SWITCH COVER

$3.16¢1 581

#021

94002-06080-0S

NUT, HEX. (6MM)

$1.54¢771

#022

94103-08700

WASHER, PLAIN (8MM)

$1.12¢558

#023

94511-15000

CIRCLIP, OUTER (15MM)

$0.80¢402
