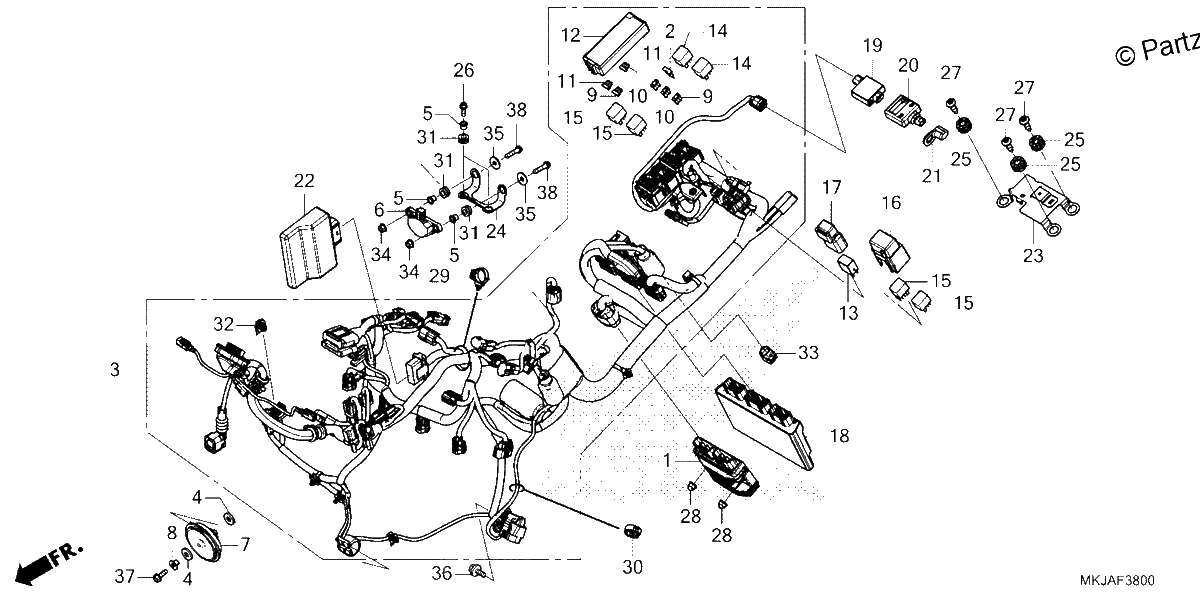

WIRE HARNESS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RECTIFIER ASSY., REGULATOR
$202.96¢101 482
#002
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
#003
WIRE HARNESS
$1955.41¢977 707
#004
RUBBER, TAILLIGHT BRACKET
$2.98¢1 489
#005
COLLAR, TAILLIGHT SETTING
$3.47¢1 737
#006
SENSOR ASSY., BANK ANGLE
$177.72¢88 860
#007
HORN (HIGH)
$41.48¢20 740
#008
COLLAR, HORN SETTING
$0.91¢454
#009
FUSE, BLADE (7.5A)
$3.46¢1 731
#010
FUSE, BLADE (10A)
$3.46¢1 731
#011
FUSE, BLADE (15A)
$4.42¢2 208
#012
COVER (UPPER)
$12.30¢6 152
#013
RELAY, POWER (MICRO ISO 4P)
$11.58¢5 790
#014
RELAY ASSY., POWER (MICRO ISO 4P)
$5.19¢2 593
#014
RELAY, POWER (MICRO ISO 4P)
$5.19¢2 593
#015
RELAY, POWER (MICRO ISO 4P)
$15.42¢7 711
#016
COVER, RELAY (2P)
$4.28¢2 139
#017
SUSPENSION, POWER RELAY
$7.28¢3 640
#018
PGM-FI UNIT
$2134.28¢1 067 143
#019
CHARGER UNIT, USB (TYPE-C)
$79.20¢39 600
#020
COVER, USB CHARGER (TYPE-C)
$9.43¢4 715
#021
CAP, USB CHARGER COVER
$3.92¢1 961
#022
CONTROL UNIT, BODY
$417.98¢208 989
#023
STAY (USB)
$19.14¢9 568
#024
STAY, BANK ANGLE SENSOR
$8.90¢4 451
#025
RUBBER, TAILLIGHT MOUNTING
$5.27¢2 633
#026
BOLT, FLANGE (6X16)
$2.68¢1 340
#027
SCREW, SPECIAL TAPPING (5X14)
$2.68¢1 340
#028
NUT, CAP (6MM)
$3.21¢1 604
#029
CLAMP, HARNESS
$6.64¢3 318
#030
CLAMP, HARNESS
$1.54¢771
#031
RUBBER, TAILLIGHT MOUNTING
$4.57¢2 283
#032
CLIP, CONNECTOR (DARK BROWN)
$4.62¢2 311
#033
CAP, DUMMY (6P) (RED)
$26.62¢13 311
#034
NUT, FLANGE (6MM)
$0.74¢368
#035
WASHER, PLAIN (6MM)
$0.92¢460
#036
BOLT, FLANGE (6X16)
$1.63¢816
#037
BOLT, FLANGE (6X18)
$1.92¢960
#038
BOLT, FLANGE (6X25)
$2.48¢1 242
