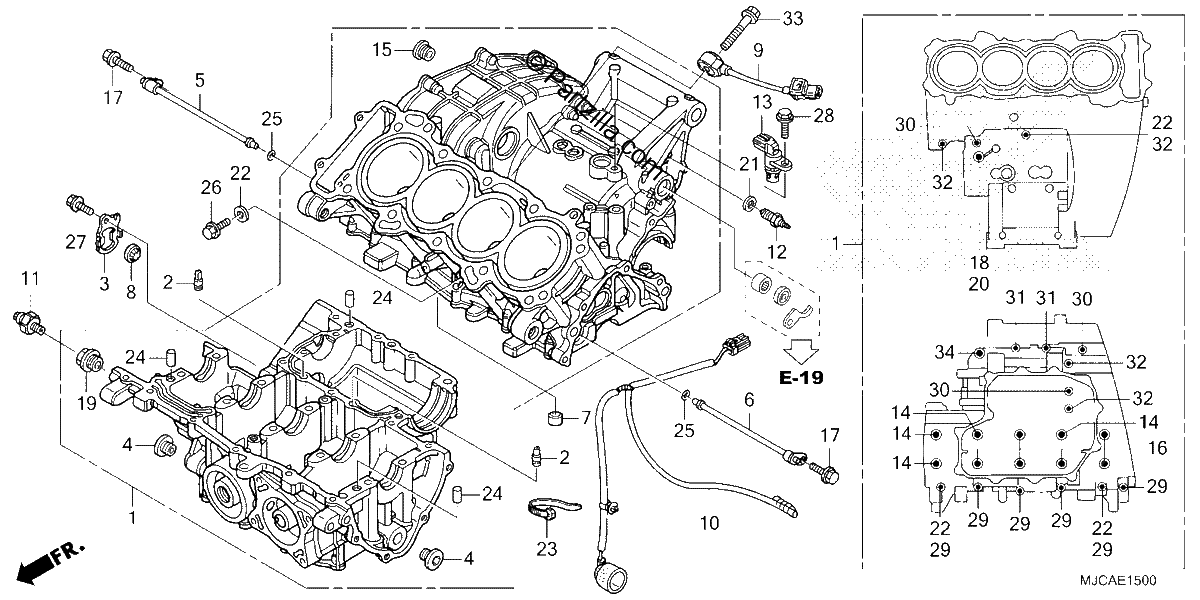

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CRANKCASE SET
$2591.15¢1 295 575
#002
ORIFICE (1.4MM)
$10.96¢5 481
#003
PLATE, OIL LEVEL FINDER
$8.15¢4 075
#004
BOLT, SEALING (20MM)
$11.74¢5 869
#005
PIPE, R. OIL JET
$97.95¢48 975
#006
PIPE, L. OIL JET
$97.95¢48 975
#007
ORIFICE (1MM)
$9.68¢4 838
#008
FINDER, OIL LEVEL
$12.81¢6 406
#009
SENSOR, KNOCK
$81.90¢40 950
#010
SUB-WIRE HARNESS, ENGINE
$25.88¢12 938
#011
SWITCH Assembly., OIL PRESSURE (DENSO)
$49.28¢24 638
#012
SWITCH Assembly., NEUTRAL
$24.56¢12 281
#013
SENSOR ASSY., SPEED
$92.83¢46 413
#014
BOLT, UBS (8X98)
$10.61¢5 306
#015
BOLT, SOCKET (10MM)
$2.91¢1 456
#016
BOLT, UBS (8X73)
$4.74¢2 369
#017
BOLT, KNOCK (6MM)
$3.65¢1 825
#018
BOLT, FLANGE (8X107)
$3.95¢1 975
#019
BOLT, SEALING (20MM)
$15.29¢7 644
#020
WASHER, SEALING (8MM)
$2.27¢1 138
#021
WASHER, NEUTRAL
$2.48¢1 238
#022
WASHER, SEALING (6.5MM)
$3.65¢1 825
#023
BAND, WIRE (95MM)
$3.77¢1 888
#024
PIN, DOWEL (10X16)
$5.21¢2 606
#025
O-RING (4.8X1.9)
$3.36¢1 681
#025
O-RING (4.8X1.9) (NOK)
$3.36¢1 681
#026
BOLT, FLANGE (6X12)
$2.09¢1 044
#027
BOLT, FLANGE (6X14)
$1.23¢613
#028
BOLT, FLANGE (6X18)
$2.09¢1 044
#029
BOLT, FLANGE (6X35)
$2.41¢1 206
#030
BOLT, FLANGE (6X45)
$2.79¢1 394
#030
BOLT, FLANGE (6X45)
$2.79¢1 394
#031
BOLT, FLANGE (6X50)
$2.66¢1 331
#032
BOLT, FLANGE (6X60)
$0.39¢194
#033
BOLT, FLANGE (8X30)
$1.45¢725
#034
BOLT, FLANGE (10X75)
$3.14¢1 569
