EXHAUST MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

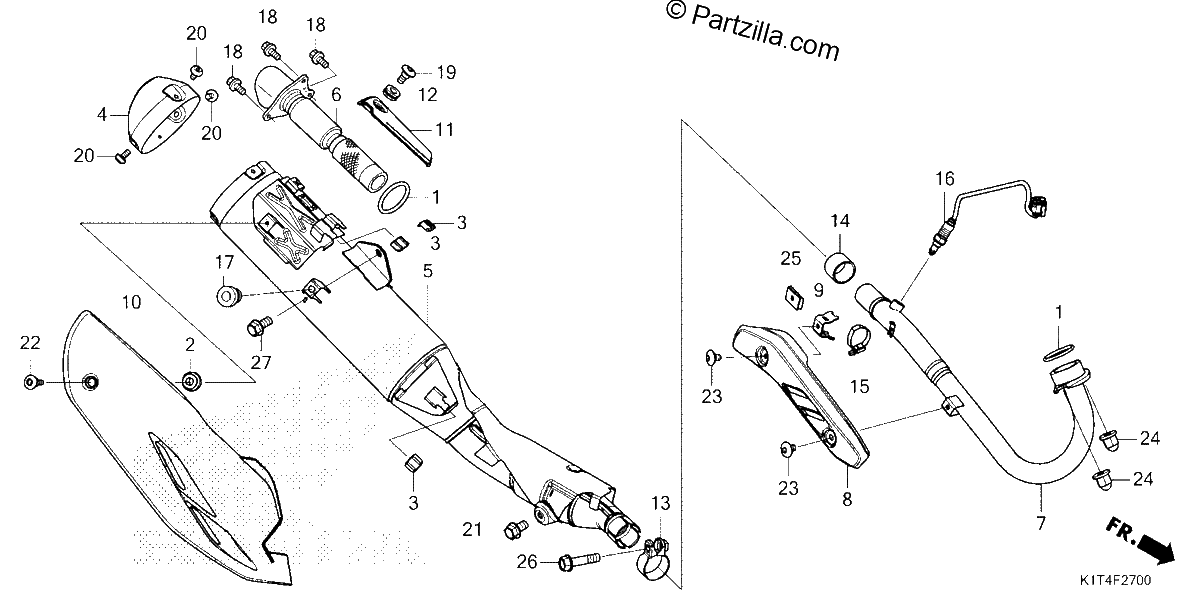

Diagrama de EXHAUST MUFFLER

Repuestos

#001
18291-MEB-670
GASKET, EX. PIPE
$5.49¢2 743
1
#002
18293-K1T-E10
RUBBER, PROTECTOR GASKET
$3.16¢1 581
1
#003
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.43¢1 213
1
#004
18306-K1T-E10
CAP, TAIL
$81.35¢40 675
1
#005
18310-K1T-A10
MUFFLER
$898.36¢449 178
1
#006
18317-K1T-A10
ARRESTER, SPARK
$119.60¢59 800
1
#007
18320-K1T-E10
PIPE, EX.
$171.86¢85 928
1
#010
18340-K1T-E10
COVER, PROTECTOR
$129.89¢64 946
1
#011
18341-K1T-E10
COVER, PROTECTOR (INNER)
$6.81¢3 404
1
#012
18345-K15-920
RUBBER, MOUNTING
$3.36¢1 679
1
#013
18374-ML4-003
BAND, L EX PIPE
$17.49¢8 746
1
#014
18391-ML8-000
GASKET, MUFFLER
$9.90¢4 951
1
#016
36531-K1T-J11
SENSOR, OXYGEN (NGK)
$125.09¢62 543
1
#017
83512-K1T-E10
RUBBER, MUFFLER PROTECTOR
$4.98¢2 490
1
#018
90101-KCE-000
BOLT, FLANGE (6X10)
$1.92¢960
1
#018
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#019
90113-K1T-E10
SCREW, PAN (6X14)
$1.47¢736
1
#020
90114-KZZ-900
SCREW, SPECIAL (5X10)
$0.97¢483
1
#021
90118-K1T-E10
BOLT, FLANGE (8X14)
$1.41¢707
1
#022
90160-KZZ-900
BOLT, MUFFLER PROTECTOR (5MM)
$1.62¢811
1
#024
90304-KPH-700
NUT, HEX CAP (8MM)
$2.01¢1 006
1
#026
95701-08032-02
BOLT, FLANGE (8X32)
$1.54¢771
1
#027
96300-08016-00
BOLT, FLANGE (8X16)
$1.66¢828
1
