FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

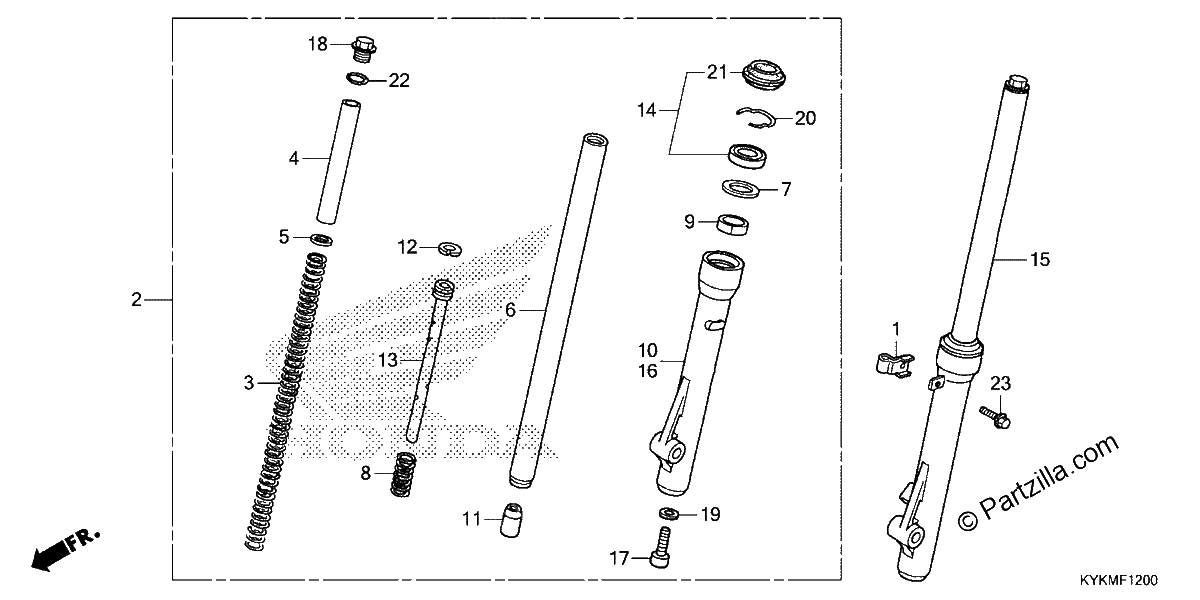

Diagrama de FRONT FORK

Repuestos

#001
45461-KYK-910
CLAMP, FR. BRAKE CABLE
$2.60¢1 300
1
#002
51400-KYK-D01
FORK ASSY., R. FR.
$636.76¢318 381
1
#003
51401-KYK-D01
SPRING, Front FORK
$52.64¢26 319
1
#004
51402-KYK-911
COLLAR, SPRING
$12.50¢6 250
1
#005
51403-KYK-911
SEAT, SPRING
$5.94¢2 969
1
#006
51410-KYK-D01
PIPE, Front FORK
$220.31¢110 156
1
#007
51412-GGC-901
WASHER, OIL SEAL (CHUANNAN ABSORBER)
$6.74¢3 369
1
#008
51413-KYK-911
SPRING, REBOUND
$10.90¢5 450
1
#009
51414-GFM-J11
GUIDE, FR. FORK (CHUANNAN ABSORBER)
$11.15¢5 575
1
#010
51420-KYK-911
CASE, R. (LOWER)
$150.86¢75 431
1
#011
51432-KRF-H71
PIECE, OIL LOCK (CHUANNAN ABSORBER)
$13.30¢6 650
1
#012
51437-KRF-H71
RING, PISTON (CHUANNAN ABSORBER)
$6.30¢3 150
1
#013
51440-KYK-D01
PIPE, SEAT
$45.94¢22 969
1
#014
51490-KRH-901
SEAL SET, FR. FORK
$23.08¢11 538
1
#015
51500-KYK-D01
FORK ASSY., L. FR.
$636.31¢318 156
1
#016
51520-KYK-911
CASE, L. (LOWER)
$96.45¢48 225
1
#017
90116-KRF-H71
BOLT, SOCKET (8X30) (CHUANNAN ABSORBER)
$4.45¢2 225
1
#018
90123-KRF-H71
BOLT, FR. FORK
$21.15¢10 575
1
#019
90544-KRF-H71
WASHER, SPECIAL (8MM) (CHUANNAN ABSORBER)
$2.52¢1 263
1
#020
90651-KRF-H71
RING, OIL SEAL STOPPER (CHUANNAN ABSORBER)
$1.31¢656
1
#021
91254-KRH-901
DUST SEAL
$11.76¢5 881
1
#022
91351-KRF-H71
O-RING (22X2.8) (CHUANNAN ABSORBER)
$3.65¢1 825
1
#023
95701-06016-08
BOLT, FLANGE (6X16)
$1.77¢888
1
