TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

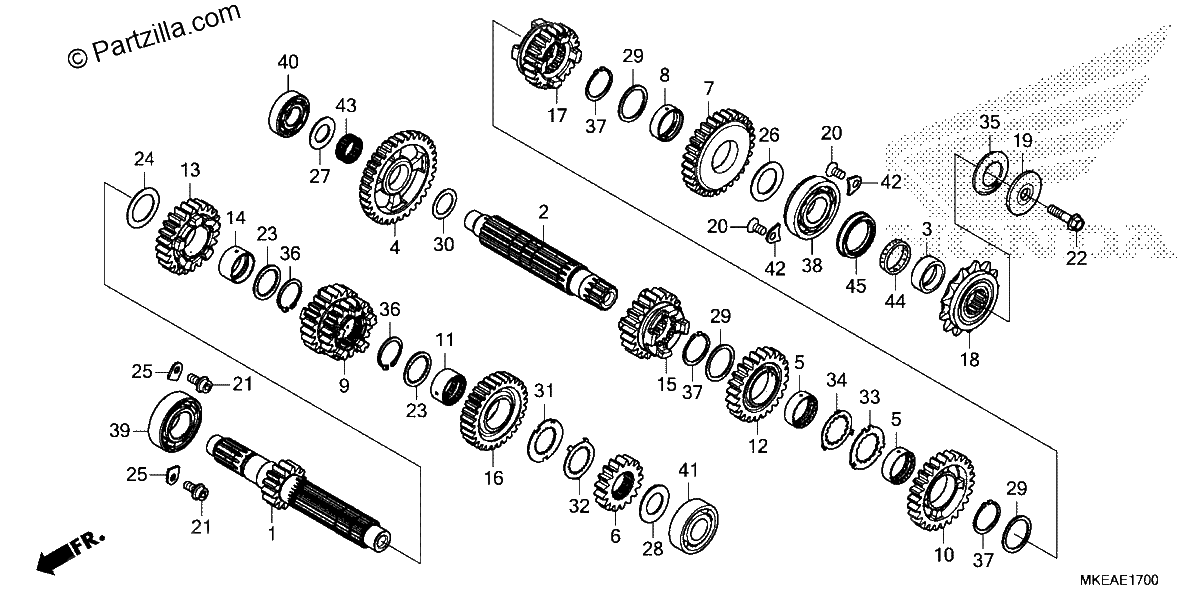

Diagrama de TRANSMISSION

Repuestos

#001
23210-MKE-A50
MAINSHAFT (14T)
$194.18¢97 089
1
#002
23221-MKE-A50
COUNTERSHAFT
$180.99¢90 494
1
#003
23225-MEN-730
COLLAR, COUNTERSHAFT
$15.41¢7 705
1
#004
23421-MKE-A50
GEAR, COUNTERSHAFT FIRST (33T)
$130.54¢65 268
1
#005
23422-MV1-000
COLLAR, SPLINE (28X10)
$23.03¢11 517
1
#006
23431-MKE-A50
GEAR, MAINSHAFT SECOND (17T)
$66.55¢33 275
1
#007
23441-MKE-A50
GEAR, COUNTERSHAFT SECOND (29T)
$123.65¢61 824
1
#008
23442-MM4-000
COLLAR (28MM)
$23.78¢11 891
1
#009
23451-MKE-A50
GEAR, MAINSHAFT THIRD & FOURTH(20T/22T)
$161.66¢80 828
1
#010
23461-MKE-A50
GEAR, COUNTERSHAFT THIRD (26T)
$123.65¢61 824
1
#011
23462-MKE-A00
COLLAR, SPLINE (26X14.3)
$19.55¢9 775
1
#012
23481-MKE-A50
GEAR, COUNTERSHAFT FOURTH (24T)
$122.54¢61 272
1
#013
23491-MKE-A50
GEAR, MAINSHAFT FIFTH (24T)
$121.34¢60 668
1
#014
23492-MKE-A50
COLLAR (26X29X15)
$22.29¢11 143
1
#015
23501-MKE-A50
GEAR, COUNTERSHAFT FIFTH (22T)
$136.34¢68 172
1
#016
23511-MKE-A50
GEAR, MAINSHAFT SIXTH (29T)
$125.90¢62 951
1
#017
23521-MKE-A50
GEAR, COUNTERSHAFT SIXTH (23T)
$136.34¢68 172
1
#018
23801-MKE-A50
SPROCKET, DRIVE (13T)
$45.34¢22 672
1
#019
23802-KSC-670
COLLAR, DRIVE SPROCKET
$15.69¢7 843
1
#020
90003-KRN-670
SCREW, SPECIAL FLAT (6X12)
$2.42¢1 208
1
#021
90071-MF5-000
BOLT, FLANGE SOCKET (6X14)
$3.74¢1 869
1
#022
90112-413-000
BOLT, UBS (8X33)
$4.30¢2 151
1
#023
90402-HP6-A00
WASHER, SPLINE (26MM)
$2.83¢1 414
1
#024
90407-415-000
WASHER, THRUST (26MM)
$6.67¢3 335
1
#025
90441-KRM-840
PLATE, BEARING HOLDER
$0.71¢357
1
#026
90445-MEN-A70
WASHER, THRUST (24.1X37X1.5)
$4.00¢2 001
1
#027
90446-MKE-A00
WASHER, THRUST (17.1X30X1.5)
$4.05¢2 024
1
#028
90451-MEW-D40
WASHER, THRUST (20MM)
$3.36¢1 679
1
#029
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
$7.50¢3 749
1
#030
90453-360-000
WASHER, THRUST (20MM)
$3.90¢1 949
1
#031
90461-MKE-A00
WASHER, SPLINE (26MM)
$3.75¢1 874
1
#032
90462-MKE-A00
WASHER, LOCK (26MM)
$3.98¢1 989
1
#033
90463-MCJ-000
WASHER, SPLINE (28MM)
$6.58¢3 289
1
#034
90464-MCJ-000
WASHER, LOCK (28MM)
$6.58¢3 289
1
#035
90501-KSC-670
WASHER, SPRING (24MM)
$4.75¢2 375
1
#036
90602-MKE-A00
CIRCLIP, SPECIAL (OUTER) (26MM)
$3.36¢1 679
1
#037
90603-MN4-000
CIRCLIP (28MM)
$4.17¢2 087
1
#038
91001-MEN-A71
BEARING, RADIAL BALL (24X56X14) (NTN)
$17.57¢8 786
1
#039
91003-MKE-A51
BEARING, RADIAL BALL SPECIAL (6205U)
$31.14¢15 571
1
#040
91006-MKE-A51
BEARING, RADIAL BALL (17X40X11)
$24.49¢12 247
1
#041
91011-HN2-004
BEARING, RADIAL BALL (6204U SPL.) (KOYO)
$20.23¢10 114
1
#042
91012-KA3-710
PLATE, COUNTERSHAFT BEARING
$5.44¢2 720
1
#043
91023-MKE-A51
BEARING, NEEDLE (20X24X9.6)
$12.63¢6 313
1
#044
91201-MKE-A71
D-RING (23.75MM)
$3.42¢1 708
1
#045
91207-MKE-A51
OIL SEAL (31X40X7)
$10.64¢5 319
1
